Hydraulic Loader Coupler (Engine 4045TT094-PE10991)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT328988	1	Quick Coupler Kit	NLA
2	AT309458	1	Solenoid Hydraulic Valve	Components Listed On Separate Page
2	T225291	2	Nut	Components Listed On Separate Page
2	AT333812	1	Solenoid Valve Coil	Components Listed On Separate Page
2	AT333807	1	Solenoid Valve Coil	Components Listed On Separate Page
2	AT307315	1	Solenoid Valve	Components Listed On Separate Page
2	AT301766	1	Seal Kit	Components Listed On Separate Page
2	AT224570	1	Check Valve	Components Listed On Separate Page
2	AT224862	1	Seal Kit	Components Listed On Separate Page
2	AT195140	1	Check Valve	Components Listed On Separate Page
2	AT195141	1	Seal Kit	Components Listed On Separate Page
2	AT195922	1	Hyd Actuated Control Valve	Components Listed On Separate Page
2	T187815	1	O-Ring	Components Listed On Separate Page
3	38H1160	1	Adapter Fitting	-
4	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	R26448	1	O-Ring	-
6	38H1017	1	Tee Fitting	-
7	T77857	2	O-Ring	-
8	R26375	1	O-Ring	-
9	38H1095	1	Elbow Fitting	-
10	T77857	2	O-Ring	-
11	62H1001	1	Adapter Fitting	STC, SUB FOR AT187666; INCLUDES R26448
11	AT193365	1	Seal Kit	Stc Repair
12	R46919	3	Half Clamp	-
13	T217085	3	Clamp	-
14	24M7239	7	Washer	10.700 X 21 X 2.500 mm
15	19M7638	2	Cap Screw	M10 X 130
16	T148409	2	Nut	M10
17	19M7550	1	Cap Screw	M10 X 35
18	14M7274	1	Nut	M10
19	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
20	T190979	1	Half Clamp	-
21	19M7742	2	Cap Screw	M10 X 65
22	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
23	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
24	T185089	1	Sleeve	-
25	R44302	4	Tie Band	-
26	38H1045	1	Elbow Fitting	-
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	R26448	1	O-Ring	-
29	AT324261	1	Hydraulic Hose	Steering Supply with Loader Coupler
30	AT321189	1	Oil Line	-
31	19M8324	3	Cap Screw	M10 X 16
32	AT321190	1	Oil Line	-
33	AT311651	1	Hydraulic Hose	17.4752" X 2044 mm (80-1/2") X 13/16", Fabricate
34	AT308506	1	Hydraulic Hose	17.4752" X 1993 mm (78-1/2") X 13/16", Fabricate
35	38H1171	1	Adapter Fitting	-
36	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
37	R26375	1	O-Ring	-
38	AT324445	1	Hydraulic Hose	Tank Fabricate
39	-	1	Part 51	MF T78606 254 mm (10 in)
40	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	62H1042	1	Adapter Fitting	-
40	AT309682	1	Hydraulic Hose	Steering Load Sense with Loader Coupler, ALSO ORDER 62H1042 AND T77613
41	AT309690	1	Hydraulic Hose	17.4752" X 1689 mm (66-1/2") X 17.4752", Backhoe Valve
42	AT309696	1	Hydraulic Hose	Steering
43	T209212	1	Label	Enable/Disable
44	AT311598	1	Indicator Lamp	-
45	AT225952	1	Switch	-
46	AT329136	1	Wiring Harness	-
47	T217077	1	Bracket	-
48	AT308237	1	Relay Module	-
49	AE44436	1	Horn	Audible Alarm
50	21M7247	1	Screw	M6 X 35
51	24M7139	1	Washer	6.400 X 18 X 1.600 mm
52	14M7303	1	Flange Nut	M6
53	R44302	1	Tie Band	-
54	AT329137	1	Wiring Harness	Lower Coupler
55	AT308200	1	Hitch	NLA, ORDER AT434453
55	AT434453	1	Quick Coupler	CA Components On Seperate Page
56	AT306047	1	Quick Coupler	-
57	AH217348	1	Hydraulic Cylinder	Components On Separate Page, NLA, ORDER AHC14445 ALSO ORDER 38H5154, 51M7042, AND T77613
58	AT307106	2	Pin Fastener	-
59	T205017	2	Pin	-
60	24M7346	4	Washer	11 X 20 X 2 mm
61	19M8499	2	Cap Screw	M10 X 60
62	14M7274	2	Nut	M10
63	T162396	2	Lubrication Fitting	-
64	24M7240	4	Washer	13 X 25 X 3 mm
65	14M7275	2	Nut	M12
66	19M7753	2	Cap Screw	M12 X 70
67	T213143	2	Label	-
68	T213288	1	Bracket	-
69	24M7238	8	Washer	8.700 X 17 X 2 mm
70	19M8008	4	Cap Screw	M8 X 35
71	14M7273	4	Nut	M8
72	38H1045	1	Elbow Fitting	-
73	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
74	R26448	1	O-Ring	-
75	38H1160	1	Adapter Fitting	-
76	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
77	R26448	1	O-Ring	-
78	AT309746	1	Hydraulic Hose	17.4752" X 1320 mm (52") X 13/16", Hydraulic Cylinder Hydraulic Cylinder Fabricate
79	AT309747	1	Hydraulic Hose	17.4752" X 1123 mm (44-1/4") X 13/16", Hydraulic Cylinder Hydraulic Cylinder Fabricate
80	T252811	1	Guard	-
81	AT309934	1	Hydraulic Hose	-
82	AT309986	1	Hydraulic Hose	1" X 1260 mm (49-1/2") X 1", Fabricate
83	AT312876	1	Hyd. Quick-Connect Coupler	Male End
84	T77932	1	O-Ring	-
85	KV11305	1	Hyd. Quick-Connect Coupler	Female End
86	T80306	1	Nut	-
87	T77932	1	O-Ring	-
88	T188880	1	Cap	Female
89	T188879	1	Cap	Male

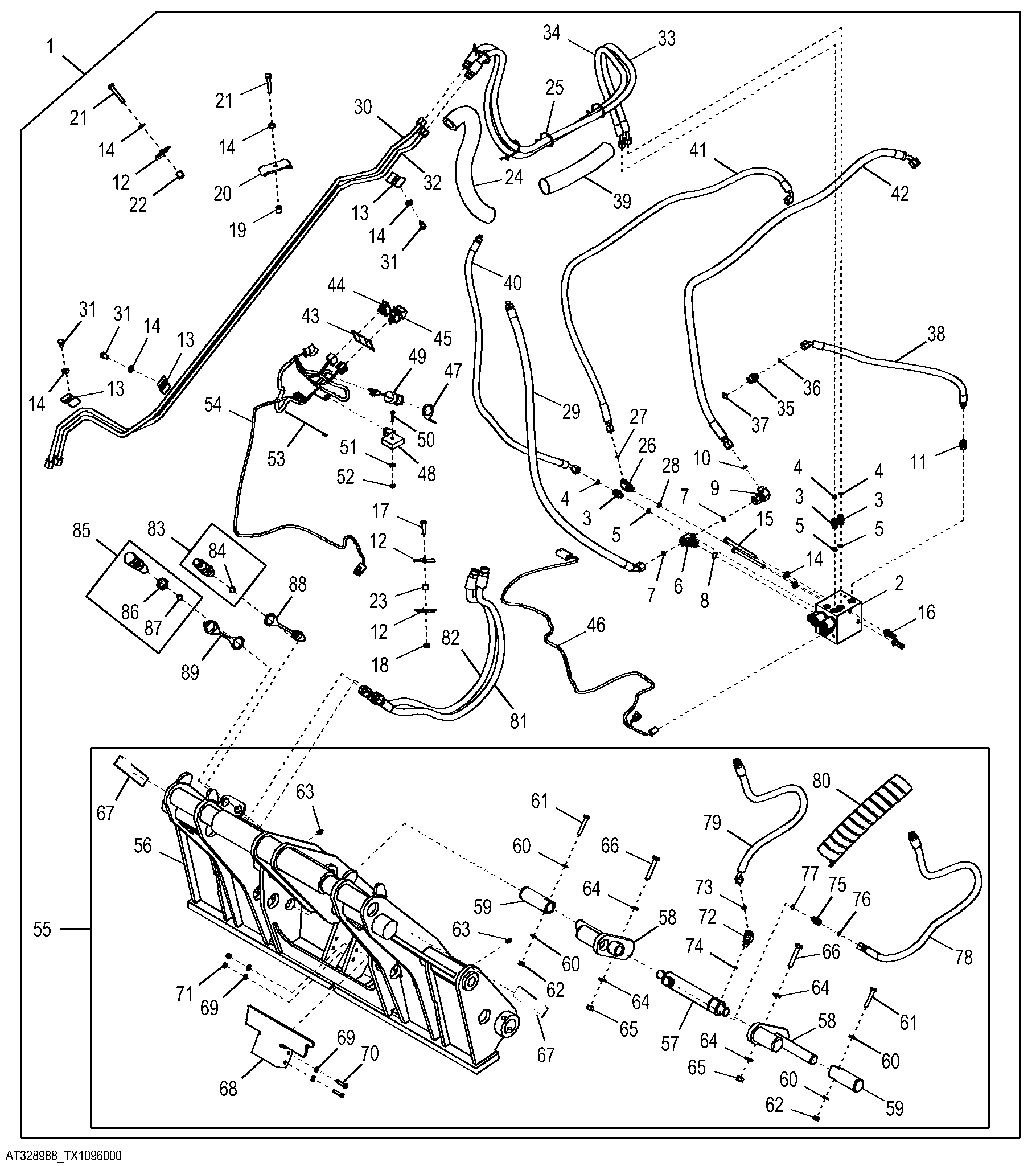

Hydraulic Loader Coupler (Engine 4045TT094-PE10991)
