Hydraulic Loader Coupler (Engine 4045HT054-RE554438, 4045HL287-SE503032-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT353086	1	Quick Coupler	NLA
2	AT309458	1	Solenoid Hydraulic Valve	Components Listed On Separate Page
2	T225291	2	Nut	Components Listed On Separate Page
2	AT333812	1	Solenoid Valve Coil	Components Listed On Separate Page
2	AT333807	1	Solenoid Valve Coil	Components Listed On Separate Page
2	AT307315	1	Solenoid Valve	Components Listed On Separate Page
2	AT301766	1	Seal Kit	Components Listed On Separate Page
2	AT224570	1	Check Valve	Components Listed On Separate Page
2	AT224862	1	Seal Kit	Components Listed On Separate Page
2	AT195140	1	Check Valve	Components Listed On Separate Page
2	AT195141	1	Seal Kit	Components Listed On Separate Page
2	AT195922	1	Hyd Actuated Control Valve	Components Listed On Separate Page
2	T187815	1	O-Ring	Components Listed On Separate Page
3	38H1160	1	Adapter Fitting	-
4	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	R26448	1	O-Ring	-
6	38H1017	1	Tee Fitting	-
7	T77857	2	O-Ring	-
8	R26375	1	O-Ring	-
9	38H1095	1	Elbow Fitting	-
10	T77857	1	O-Ring	-
11	AT187666	1	Adapter Fitting	STC
11	AT193365	1	Seal Kit	Stc Repair
12	R46919	1	Half Clamp	-
13	T217085	3	Clamp	-
14	24M7239	6	Washer	10.700 X 21 X 2.500 mm
15	19M7638	2	Cap Screw	M10 X 130
16	T148409	2	Nut	-
17	19M7742	1	Cap Screw	M10 X 65
18	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
19	T185089	1	Sleeve	-
20	R44302	4	Tie Band	-
21	38H1045	1	Elbow Fitting	-
22	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	R26448	1	O-Ring	-
24	T185089	1	Sleeve	-
25	AT324261	1	Hydraulic Hose	Steering Supply with Loader Coupler
26	AT321189	1	Oil Line	-
27	19M8324	3	Cap Screw	M10 X 16
28	AT321190	1	Oil Line	-
29	38H1171	1	Adapter Fitting	-
30	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
31	R26375	1	O-Ring	-
32	AT324445	1	Hydraulic Hose	254 mm, Fabricate, (CTL)
33	AT309682	1	Hydraulic Hose	Steering Load Sense with Loader Coupler, ALSO ORDER 62H1042 AND T77613
33	62H1042	1	Adapter Fitting	-
33	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
34	AT309690	1	Hydraulic Hose	17.4752" X 1689 mm (66-1/2") X 17.4752"
35	AT309696	1	Hydraulic Hose	-
36	T209212	1	Label	Enable/Disable
37	AT311598	1	Indicator Lamp	-
38	AT225952	1	Switch	-
39	AT329136	1	Wiring Harness	-
40	AT434453	1	Quick Coupler	CA
40	AT308200	1	Hitch	NLA, ORDER AT434453
41	AT306047	1	Quick Coupler	-
42	AH217348	1	Hydraulic Cylinder	Components On Separate Page, NLA, ORDER AHC14445 ALSO ORDER 38H5154, 51M7042, AND T77613
43	AT307106	2	Pin Fastener	-
44	T205017	2	Pin	-
45	24M7346	4	Washer	11 X 20 X 2 mm
46	19M8499	2	Cap Screw	M10 X 60
47	14M7274	2	Nut	M10
48	T162396	2	Lubrication Fitting	-
49	24M7240	4	Washer	13 X 25 X 3 mm
50	14M7275	2	Nut	M12
51	19M7753	2	Cap Screw	M12 X 70
52	T213143	2	Label	-
53	T213288	1	Bracket	-
54	24M7238	8	Washer	8.700 X 17 X 2 mm
55	19M8008	4	Cap Screw	M8 X 35
56	14M7273	4	Nut	M8
57	38H1045	1	Elbow Fitting	-
58	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
59	R26448	1	O-Ring	-
60	38H1160	1	Adapter Fitting	-
61	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
62	R26448	1	O-Ring	-
63	AT309746	1	Hydraulic Hose	17.4752" X 1320 mm (52") X 13/16", Fabricate
64	AT309747	1	Hydraulic Hose	17.4752" X 1123 mm (44-1/4") X 13/16", Fabricate
65	T252811	1	Guard	-
66	AT309934	1	Hydraulic Hose	-
67	AT309986	1	Hydraulic Hose	1" X 1260 mm (49-1/2") X 1", Fabricate
68	AT312876	1	Hyd. Quick-Connect Coupler	Male End
69	T77932	1	O-Ring	-
70	KV11305	1	Hyd. Quick-Connect Coupler	Female End
71	T80306	1	Nut	-
72	T77932	1	O-Ring	-
73	T188880	1	Cap	-
74	T188879	1	Cap	-
75	AT353089	1	Hydraulic Hose	17.4752" X 1828 mm (72") X 13/16", Fabricate
76	AT353088	1	Hydraulic Hose	17.4752" X 1778 mm (70") X 13/16", Fabricate
77	-	1	Part 92	1.75 ft, (MAKE FROM T82659 CTL)
78	T217077	1	Bracket	-
79	AT308237	1	Relay Module	-
80	AE44436	1	Horn	-
81	21M7247	1	Screw	M6 X 35
82	24M7139	1	Washer	6.400 X 18 X 1.600 mm
83	14M7303	1	Flange Nut	M6
84	R44302	1	Tie Band	-
85	AT329137	1	Wiring Harness	-
85	T82659	1	Conduit	-

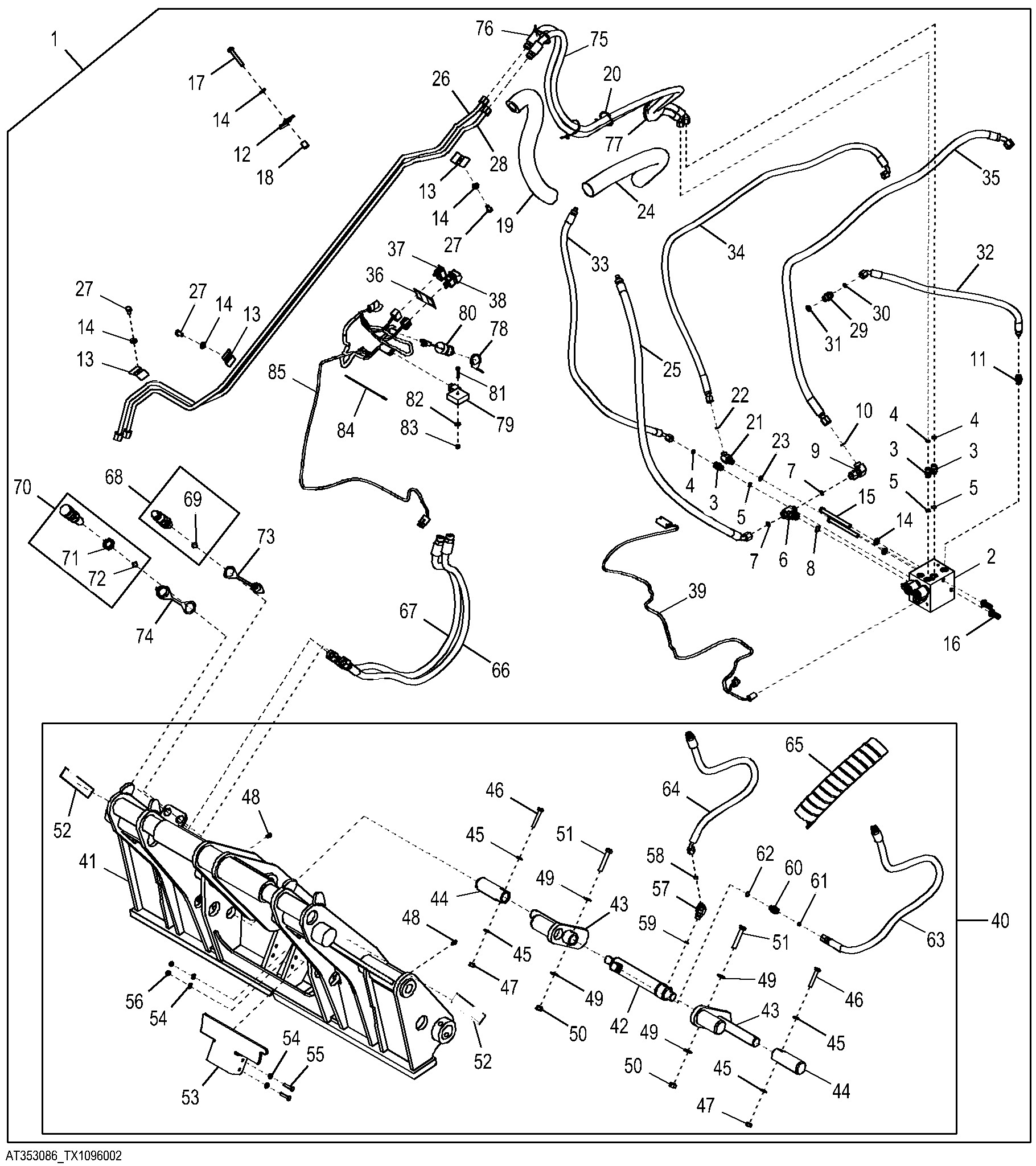

Hydraulic Loader Coupler (Engine 4045HT054-RE554438, 4045HL287-SE503032-)
