Fluid Sampling Ports (Engine 4045HT054) ( - 173951)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	2	Nut	M10
2	19M7662	2	Cap Screw	M10 X 30
3	19M7742	1	Cap Screw	M10 X 65
4	19M7881	2	Screw	M8 X 20
6	24M7145	8	Washer	15 X 24 X 2.500 mm
7	24M7238	2	Washer	8.700 X 17 X 2 mm
8	24M7239	4	Washer	10.700 X 21 X 2.500 mm
9	38H1009	1	Elbow Fitting	-
10	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77814	5	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
12	38H1093	1	Elbow Fitting	-
13	38H1167	1	Adapter Fitting	-
14	R26286	1	O-Ring	10.516 X 1.829 mm (0.414" X 0.072")
15	38H1168	1	Adapter Fitting	-
16	AT322359	1	Adapter Fitting	-
17	51M7045	1	O-Ring	19.300 X 2.200 mm
18	T222521	1	Fitting	-
19	AT335106	1	Oil Line	Engine Oil
21	AT335108	1	Oil Line	Transmission Oil
22	AT349966	1	Hydraulic Hose	Engine Coolant
23	AT341516	1	Hydraulic Hose	Shorten Hose Cut Length By 10.000 in Transmission Oil
24	AT350248	4	Fitting	-
25	AT351191	1	Hydraulic Hose	Hydraulic Oil
26	R71210	1	Adapter Fitting	-
27	RE19797	2	Clamp	-
28	19M7923	1	Cap Screw	M6 X 12
29	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
30	T190979	1	Half Clamp	-
31	T217789	1	Label	Engine Coolant
32	T217790	1	Label	Engine Oil
33	T217791	1	Label	Transmission Oil
34	T217792	1	Label	Hydraulic Oil
35	T238489	1	Bracket	-
36	T238490	1	Bracket	-
50	AT375407	1	Diagnostic Coupling	Whole Goods

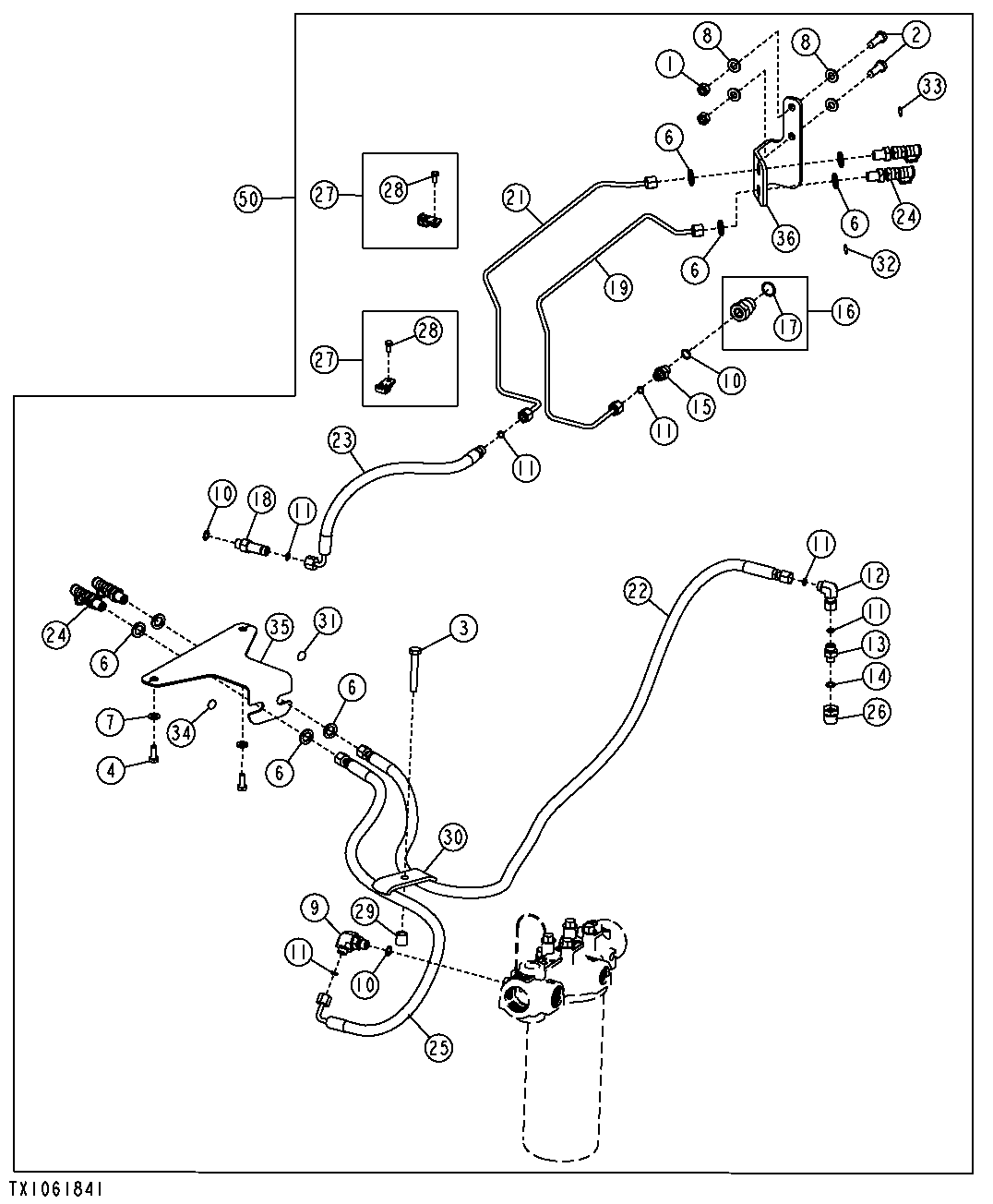

Fluid Sampling Ports (Engine 4045HT054) ( - 173951)

Нет текстового описания
