Открытый узел

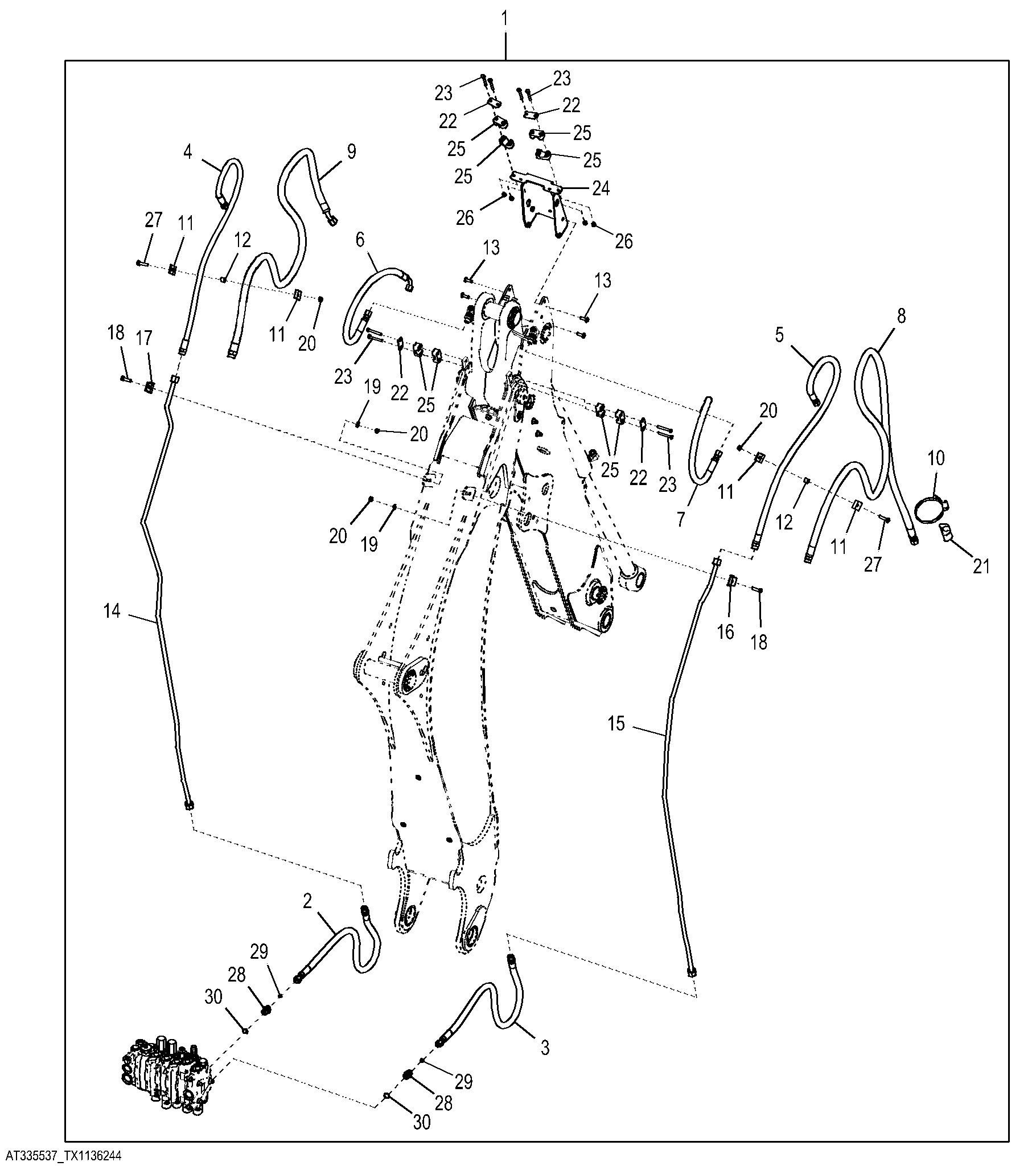

Extendable Dipperstick Plumbing Field Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT335537	1	Hydraulic Component	Component Parts, NLA, ORDER
2	AT382007	1	Hydraulic Hose	To Auxiliary Control Valve, INCLUDES T77932
2	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
3	AT382007	1	Hydraulic Hose	To Auxiliary Control Valve, INCLUDES T77932
3	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
4	AT178413	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder, INCLUDES T77932
4	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
5	AT178413	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder, INCLUDES T77932
5	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
6	AT179238	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder
7	AT179238	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder
8	AT170172	1	Hydraulic Hose	Bucket Cylinder Rod End, INCLUDES T77932
8	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
9	AT170173	1	Hydraulic Hose	Bucket Cylinder Head End, INCLUDES T77858
9	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
10	C16054	1	Clamp	-
11	R46919	4	Half Clamp	-
12	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
13	T165889	4	Screw	-
14	AT325063	1	Oil Line	Extension Cylinder Head End
15	AT325064	1	Oil Line	Extension Cylinder Rod End
16	T159954	1	Clamp	-
17	T160554	1	Clamp	-
18	19M7550	2	Cap Screw	M10 X 35
19	24M7239	2	Washer	10.700 X 21 X 2.500 mm
20	14M7274	4	Nut	M10
21	T105773	1	Guide	-
22	T162005	4	Strap	-
23	19M7185	8	Cap Screw	M8 X 60
24	AT327155	1	Hose Support	-
25	T162004	8	Clamp	-
26	14M7426	4	Lock Nut	M8
27	19M8637	2	Cap Screw	M10 X 40
28	38H1174	2	Adapter Fitting	-
29	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
30	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")

Extendable Dipperstick Plumbing Field Kit

Нет текстового описания
