Открытый узел

Cooling System Hoses and Fittings (Engine 4045HT054, 4045HL287-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7239	10	Washer	10.700 X 21 X 2.500 mm
2	19M7550	4	Cap Screw	M10 X 35
3	14M7274	7	Nut	M10
4	AT334597	1	Angle	-
5	24M7296	3	Washer	10.500 X 30 X 2.500 mm
6	19M8637	4	Cap Screw	M10 X 40
7	AT320220	1	Tank	-
8	AH89557	2	Clip	-
9	AT310335	1	Filler Cap	103.42 kp (15.00 lb)
10	T152608	1	Clamp	-
11	24M7238	16	Washer	8.700 X 17 X 2 mm
12	19M7008	1	Cap Screw	M8 X 10
13	19M7932	4	Cap Screw	M8 X 16
14	AL204009	1	Aftercooler	SUB FOR AL181625
15	L171071	4	Bushing	-
16	L171072	4	Bushing	-
17	L157268	1	Elec. Connector Terminal	-
18	19M7868	4	Screw	M8 X 30
19	AT349278	1	Plate	NLA, ORDER AT369010
19	AT369010	1	Plate	ALSO ORDER T257395
20	AT349656	2	Oil Cooler	Hydraulic Oil Cooler Transmission Cooler, AND
21	19M7785	9	Screw	M10 X 25
22	R191781	8	Hose Clamp	-
23	T254529	1	Elbow Fitting	Coolant Pump
24	51M7043	1	O-Ring	15.300 X 2.200 mm
25	R225971	12	Clamp	SUB FOR T217175
26	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
27	U13055	2	CLAMP	-
28	AT362597	1	Tube	-
28	AT362597	1	Tube	SUB FOR AT335700
29	AT362595	1	Tube	-
29	AT362595	1	Tube	SUB FOR AT335699
30	T227709	1	Radiator Hose	-
31	R46667	7	Clamp	-
32	T226137	1	Radiator Hose	-
33	-	1	Part 36	MAKE FROM T78497 CTL, 137.16 cm (54.000 in)
34	T254819	1	Gasket	SUB FOR L157267
35	-	1	Part 38	MAKE FROM PS-B-33 CTL, 45.00 cm (17.717 in)
36	R44302	2	Tie Band	-
37	-	1	Part 40	MAKE FROM T78497 CTL, 115.82 cm (45.600 in)
38	AT324059	2	Elbow Fitting	-
39	R26906	2	O-Ring	-
40	AT301917	4	Hose Clamp	-
41	T162675	2	Clamp	-
42	AH61472	2	Hose Fitting	ALSO ORDER U12547
43	U12547	1	O-Ring	-
44	T226960	1	Radiator Hose	-
45	-	1	Part 48	MAKE FROM TY22556 CTL, 60.96 cm (24.000 in)
46	AT300153	2	Hose Clamp	-
47	T288228	1	Elbow Fitting	-
48	U12547	1	O-Ring	-
49	T226273	1	Hose	-
50	AT105289	2	Clamp	-
51	T174427	7	Clamp	-
52	-	1	Part 55	MAKE FROM TY22566 CTL, 109.73 cm (43.200 in)
53	-	1	Part 56	MAKE FROM TY22566 CTL, 109.73 cm (43.200 in)
54	-	1	Part 57	-
54	T246173	1	Bracket	SUB FOR T239061 CTL, 143.26 cm (56.400 in)
55	-	1	Part 59	MAKE FROM TY22566 CTL, 97.54 cm (38.400 in)
56	T246173	1	Bracket	-
57	19M8324	3	Cap Screw	M10 X 16
58	19M8600	1	Cap Screw	M10 X 50
59	T254819	1	Gasket	-
60	AT349463	1	Hose	NLA, ORDER T257395
60	T257395	1	Radiator Hose	ALSO ORDER AT369010 SUB FOR AT349463
61	T226250	2	Radiator Hose	-
61	T250199	2	Radiator Hose	-
62	T226138	1	Radiator Hose	-

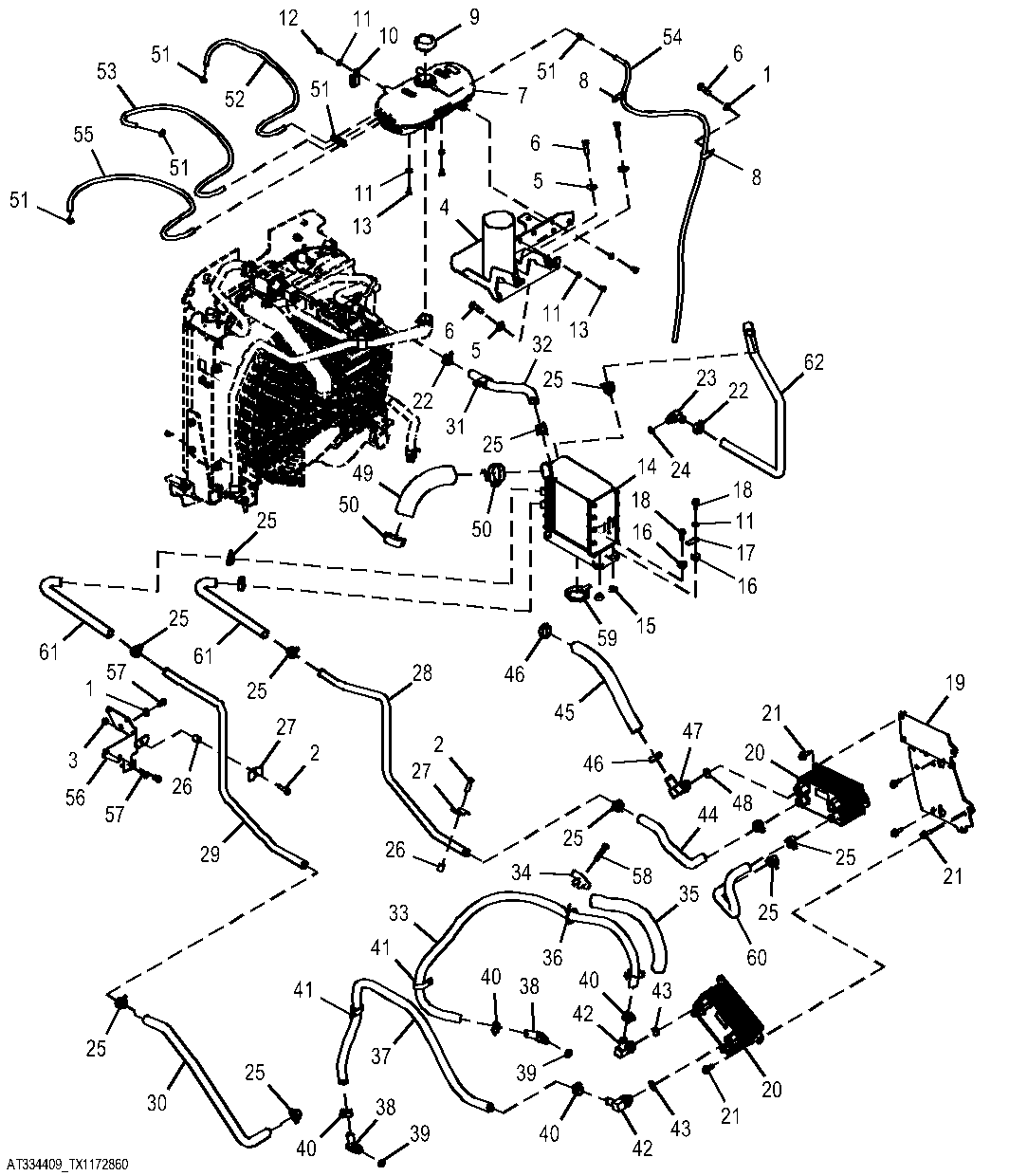

Cooling System Hoses and Fittings (Engine 4045HT054, 4045HL287-)
