Backhoe Extension Cylinder Hydraulics, Extendable Dipperstick

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
1	AT280344	1	Hydraulic Hose	Fabricate
2	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
2	AT436984	1	Hydraulic Hose	Fabricate, SUB FOR AT280343
3	AT178413	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder
3	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
4	AT178413	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder
5	AT179238	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder
6	AT179238	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder
7	AT170172	1	Hydraulic Hose	Rod End Bucket Cylinder Fabricate
7	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	AT170173	1	Hydraulic Hose	Head End Bucket Cylinder
9	38H1174	2	Adapter Fitting	-
10	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
11	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
12	AT382007	1	Hydraulic Hose	Fabricate, ALSO ORDER 38H1174 SUB FOR AT280343
12	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
13	AT382007	1	Hydraulic Hose	Fabricate, ALSO ORDER 38H1174 SUB FOR AT280343
14	38H1214	2	Adapter Fitting	-
15	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
16	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
17	AT325061	1	Tube	Head End Bucket Cylinder
18	AT325062	1	Oil Line	Rod End Bucket Cylinder
19	AT327155	1	Hose Support	-
20	C16054	1	Clamp	-
21	R46919	4	Half Clamp	-
22	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
23	T162004	8	Clamp	-
24	T162005	4	Strap	-
25	T165889	4	Screw	-
26	AT325063	1	Oil Line	Head End Dipperstick Extension Cylinder
27	AT325064	1	Oil Line	Rod End Dipperstick Extension Cylinder
28	T159954	1	Clamp	-
29	T160554	1	Clamp	-
30	19M7550	2	Cap Screw	M10 X 35
31	24M7239	2	Washer	10.700 X 21 X 2.500 mm
32	14M7274	4	Nut	M10
33	T105773	1	Guide	-
34	14M7426	4	Lock Nut	M8
35	19M7185	8	Cap Screw	M8 X 60
36	19M8637	2	Cap Screw	M10 X 40

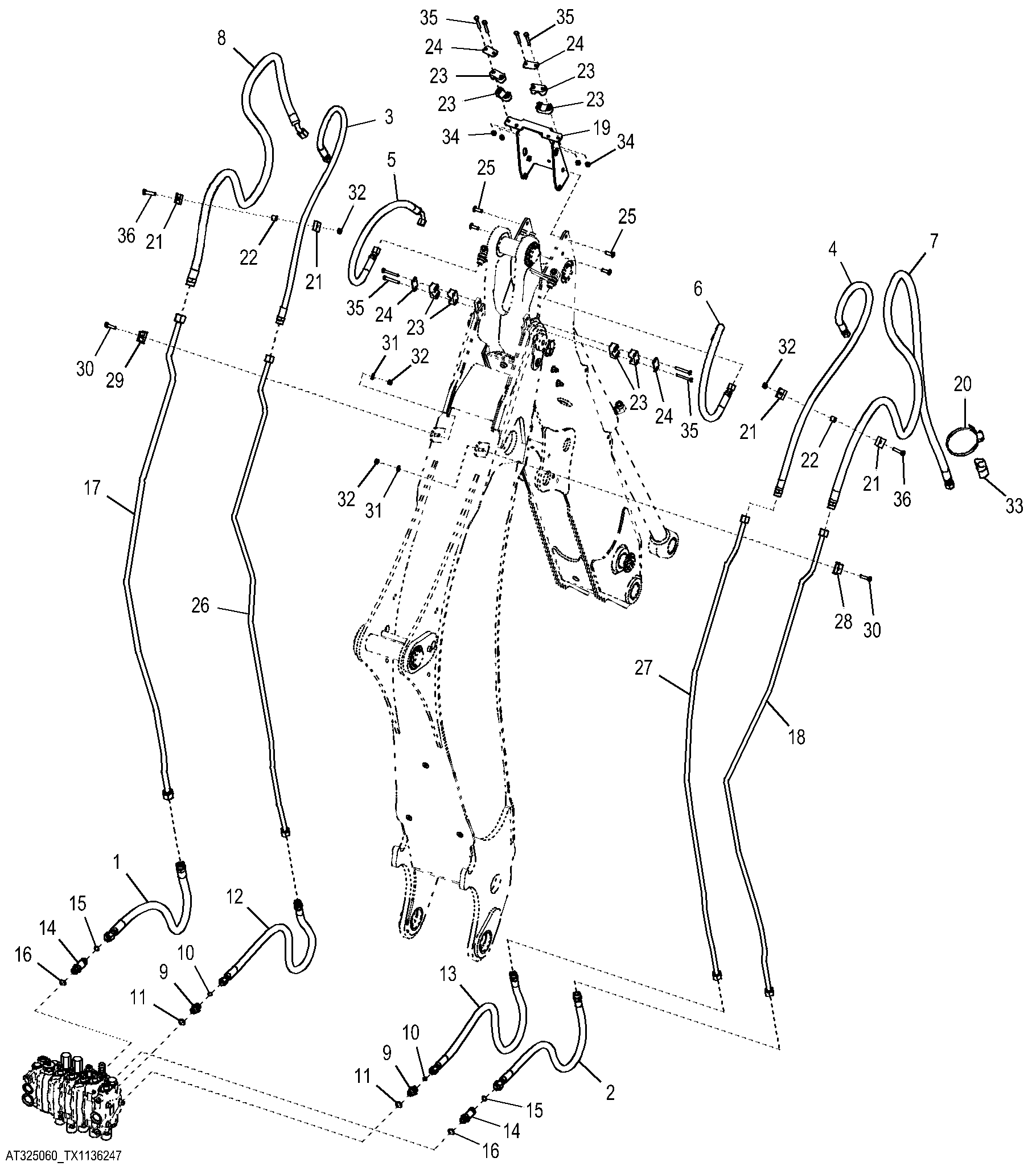

Backhoe Extension Cylinder Hydraulics, Extendable Dipperstick
