Открытый узел

Auxiliary Equipment Hydraulics, Standard Dipperstick

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325070	1	Hydraulic Equipment	WHOLE GOODS
2	AT325066	1	Oil Line	Auxiliary Return, ORDER AT434826
2	AT434826	1	Oil Line	Auxiliary Return
3	AT325067	1	Oil Line	Auxiliary Pressure, ORDER AT434827
3	AT434827	1	Oil Line	Auxiliary Pressure
4	AT280350	1	Hydraulic Hose	To Manual Hydraulic Valve, INCLUDES T77858
5	T160376	8	Clamp	-
6	03M7192	4	Bolt	M10 X 30
7	19M7572	2	Cap Screw	M10 X 45
8	24M7239	10	Washer	10.700 X 21 X 2.500 mm
9	14M7274	5	Nut	M10
10	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
11	T126052	1	Spacer	-
12	T162004	4	Clamp	-
13	T163702	2	Reducer	-
14	T77858	2	O-Ring	-
15	T205636	1	Bracket	-
16	T205637	1	Bracket	-
17	19M7662	4	Cap Screw	M10 X 30
18	38H1329	1	Adapter Fitting	-
19	T77932	1	O-Ring	-
20	U12547	1	O-Ring	-
21	T162005	2	Strap	-
22	19M7873	4	Screw	M8 X 110
23	38H1002	1	Tee Fitting	-
24	T76938	2	O-Ring	-
25	AT309710	1	Hydraulic Hose	Auxiliary Return
26	AT351154	1	Hydraulic Hose	Auxiliary Return
27	AT351154	1	Hydraulic Hose	Auxiliary Return
28	T78707	2	Nut	-
29	-	1	Part 31	MAKE FROM T107029 CTL, 154 mm (6.06 in)
30	H77698	2	Tie Band	-
31	AT280345	1	Hydraulic Hose	To Manual Hydraulic Valve, INCLUDES T77858
32	38H1528	1	Elbow Fitting	-
33	T77858	1	O-Ring	-
34	R26906	1	O-Ring	-
35	38H1162	1	Adapter Fitting	-
36	T77932	1	O-Ring	-
37	R26906	1	O-Ring	-
38	T159848	1	Clamp	-
39	28H3421	1	Spacer	0.493" X 0.675" X 7/16"
40	R46919	1	Half Clamp	-
41	19M8637	1	Cap Screw	M10 X 40
42	64H1007	2	Drain Plug	-
43	U12547	2	O-Ring	-
44	T77858	1	O-Ring	-
45	T77858	1	O-Ring	-

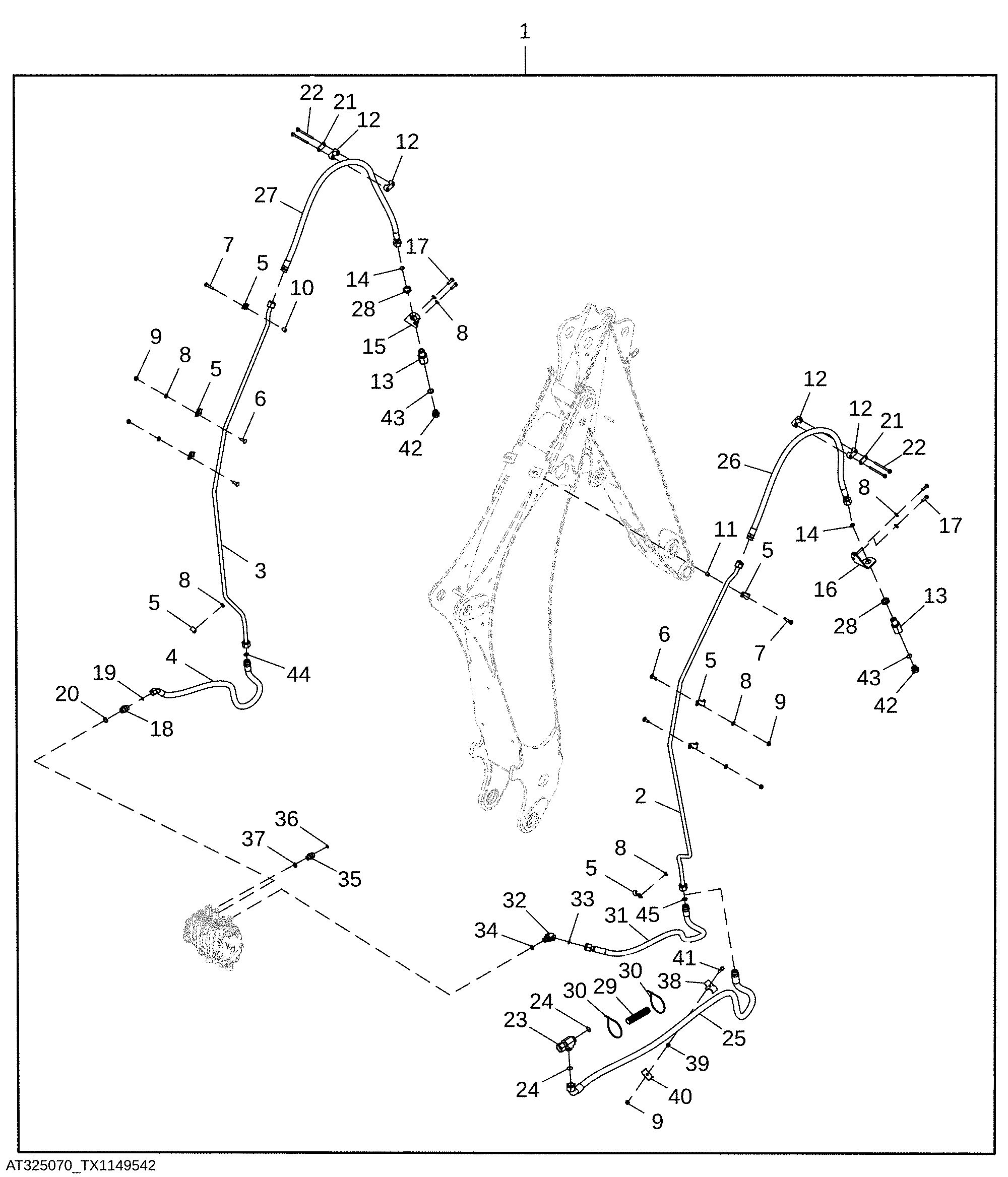

Auxiliary Equipment Hydraulics, Standard Dipperstick
