Auxiliary Backhoe Hydraulic Plumbing Kit, 2 Way For Thumb, Clamp, Swinger, or Jaw Bucket

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT194393	1	Hydraulic Hose	Not Illustrated See Installation Instructions, T187192, T287658, T287659, OR T287660
1	AT194394	1	Hydraulic Hose	Not Illustrated See Installation Instructions, T187192, T287658, T287659, OR T287660
1	AT194368	1	Hose Kit	Whole Goods See Installation Instructions, T187192, T287658, T287659, OR T287660
2	38H1010	1	Elbow Fitting	Thumb Or Clamp
3	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
4	T77613	12	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
6	38H5193	1	Adapter Fitting	-
7	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
8	38H5193	1	Adapter Fitting	-
9	AP22688	2	Hose Fitting	Swinger
10	AM3762T	1	Elbow Fitting	Swinger
11	T159976	2	Guide	-
12	T105774	4	Guide	-
13	19M7938	4	Cap Screw	M10 X 20
14	24M7040	4	Washer	11 X 20 X 2 mm
15	R49921	2	Clamp	-
16	14M7400	4	Lock Nut	M10
17	R44302	10	Tie Band	-
18	T24959	14	Clamp	-
19	T150961	2	O-Ring	-
19	T107887	1	O-Ring	-
19	AT392107	2	Pressure Relief Valve	220.63 bar (3200.00 psi), SUB FOR F437061
19	R63548	2	O-Ring	-
20	AT314539	1	Seal Kit	-
21	T118681	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
22	-	1	Part 27	NLA, ORDER AT314539
23	-	1	Part 28	NLA, ORDER AT314539
24	-	1	Part 29	NLA, ORDER AT314539
25	-	2	Part 30	NLA, ORDER AT314539
26	-	1	Part 31	NLA, ORDER AT314539
27	AT194397	2	Hydraulic Hose	Standard Or Extendable Thumb Or Clamp See Installation Instructions, T187192, T287658, T287659, OR T287660
27	AT194396	2	Hydraulic Hose	Standard Dipperstick Swinger See Installation Instructions, T187192, T287658, T287659, OR T287660
27	AT194392	2	Hydraulic Hose	Extendable Dipperstick Swinger See Installation Instructions, T187192, T287658, T287659, OR T287660
28	AT194398	2	Hydraulic Hose	Standard Dipperstick See Installation Instructions, T187192, T287658, T287659, OR T287660
28	AT194395	2	Hydraulic Hose	Extendable Dipperstick See Installation Instructions, T187192, T287658, T287659, OR T287660
29	AT194379	2	Hydraulic Hose	See Installation Instructions, T187192, T287658, T287659, OR T287660
30	AT194378	2	Hydraulic Hose	See Installation Instructions, T187192, T287658, T287659, OR T287660
31	AT194388	1	Hydraulic Hose	Not Illustrated See Installation Instructions, T187192, T287658, T287659, OR T287660
32	AT194389	1	Hydraulic Hose	Not Illustrated See Installation Instructions, T187192, T287658, T287659, OR T287660
33	AT194390	1	Hydraulic Hose	Not Illustrated See Installation Instructions, T187192, T287658, T287659, OR T287660
34	AT194391	1	Hydraulic Hose	Not Illustrated See Installation Instructions, T187192, T287658, T287659, OR T287660
35	19M7783	1	Screw	M10 X 16, Not Illustrated
36	38H5076	2	Adapter Fitting	Not Illustrated
37	51M7045	2	O-Ring	19.300 X 2.200 mm, Not Illustrated
38	T77857	2	O-Ring	Not Illustrated

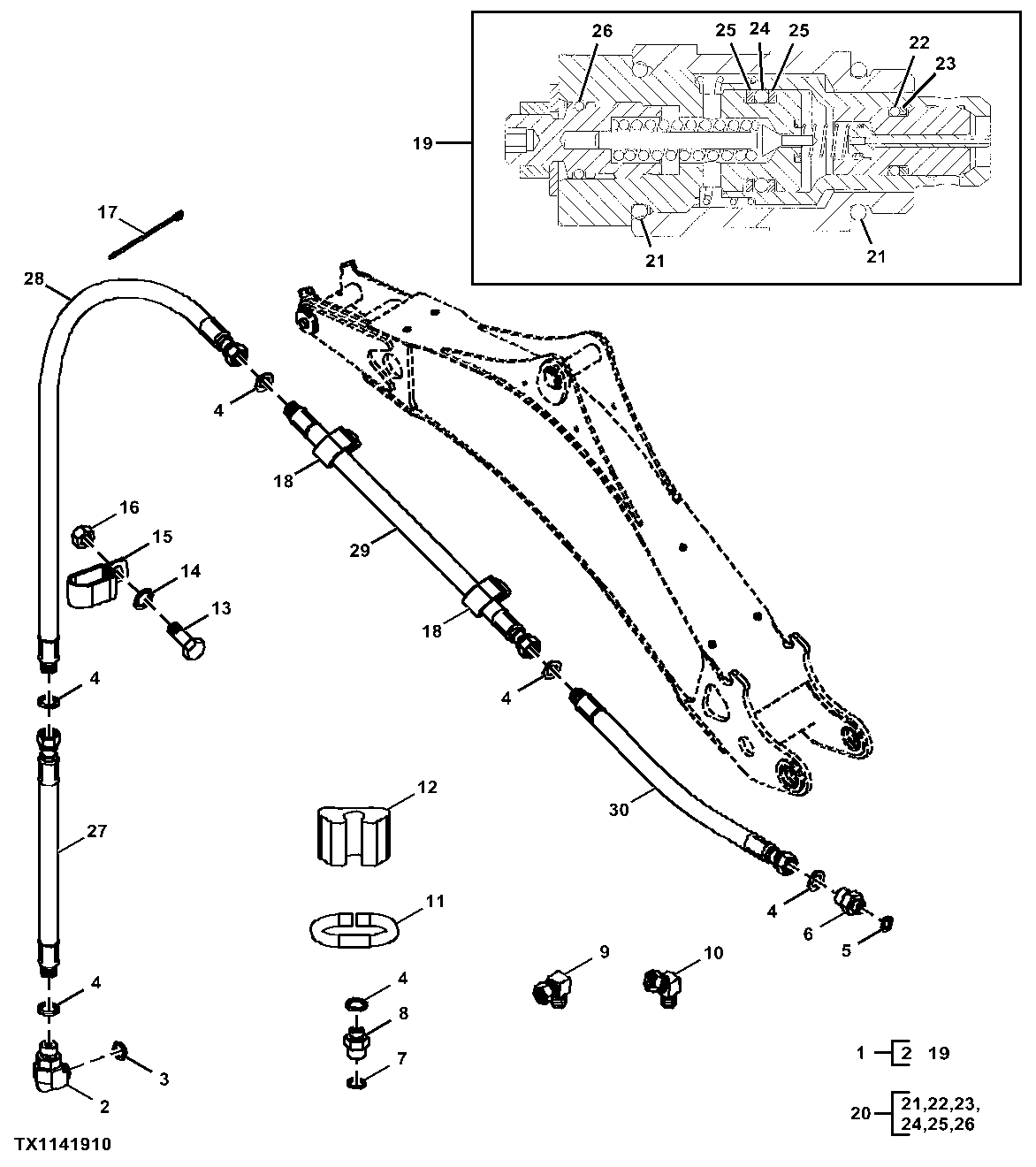

Auxiliary Backhoe Hydraulic Plumbing Kit, 2 Way For Thumb, Clamp, Swinger, or Jaw Bucket
