Открытый узел

2-Way Auxiliary Control Valve, for Left Foot Pedal Manual Control without Circuit Relief

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT192239	1	Valve	2-Way Auxiliary Control Valve, for Left Foot Pedal Manual Control without Circuit Relief Whole Goods Requires, AT185629
2	AT189168	1	Spool Valve	Manual Auxiliary Section Marked K Components On Separate Page
3	AT179109	1	Spool Valve	Manual Swing Valve Marked J Components On Separate Page
4	T140699	1	Rod	Converting From Four Function To Five Function
4	T140700	1	Rod	Converting From Five Function To Six Function
4	T161708	1	Stud	Converting From Five Function Plus Select Flow Not Included In Kit
5	14H865	2	Nut	1/2"
6	T118695	2	Rod	Converting From Four Function To Five Function
6	T118697	2	Rod	Converting From Five Function To Six Function
6	T161707	2	Stud	Converting From Five Function Plus Select Flow Not Included In Kit
7	14H807	4	Nut	7/16"
8	AT185629	1	Pedal Kit	-
9	AT185629	1	Pedal Kit	Left Foot Pedal, 2-Way Auxiliary Manual Controls Whole Goods Not Illustrated Components On Separate Page

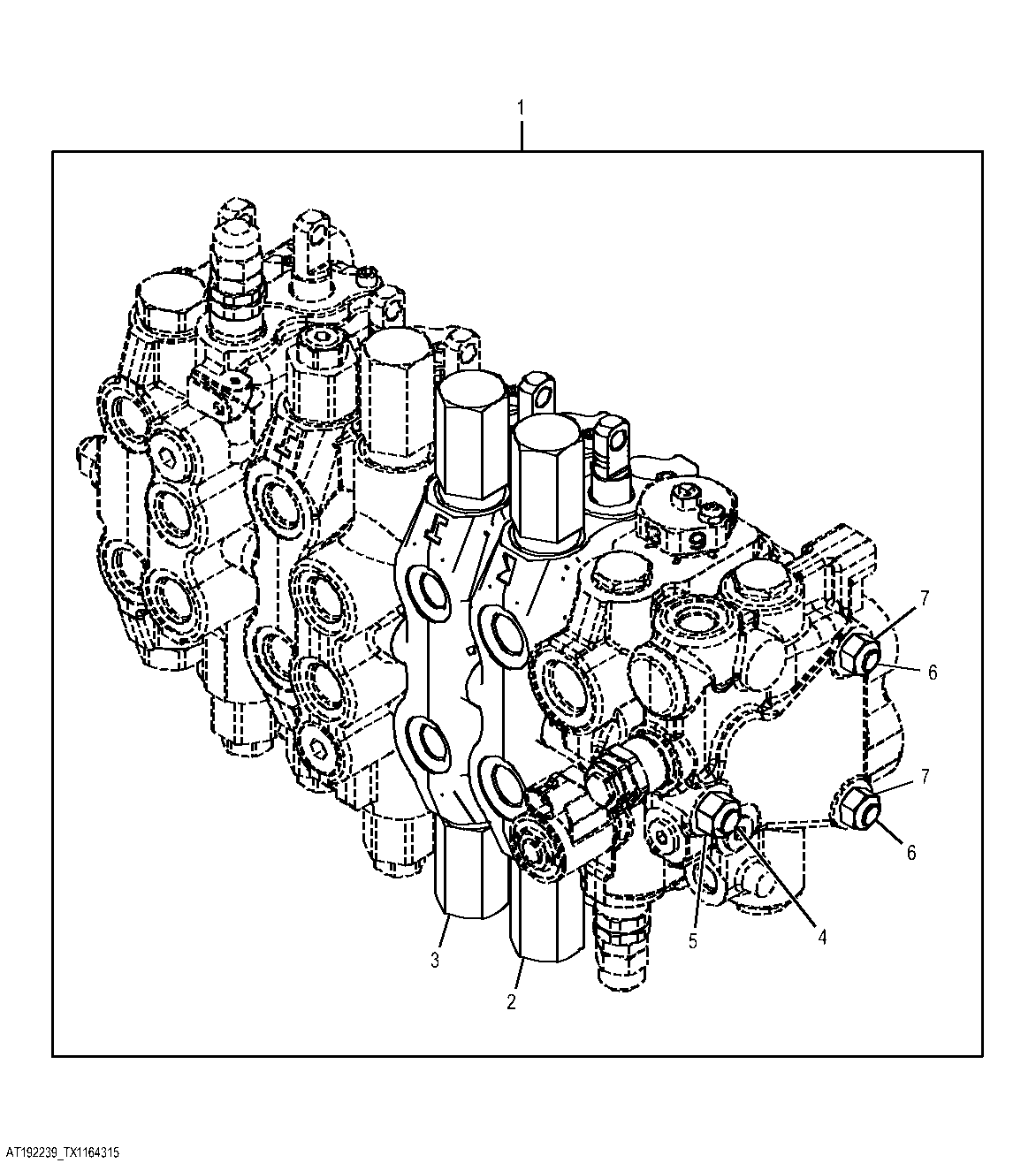

2-Way Auxiliary Control Valve, for Left Foot Pedal Manual Control without Circuit Relief

Нет текстового описания
