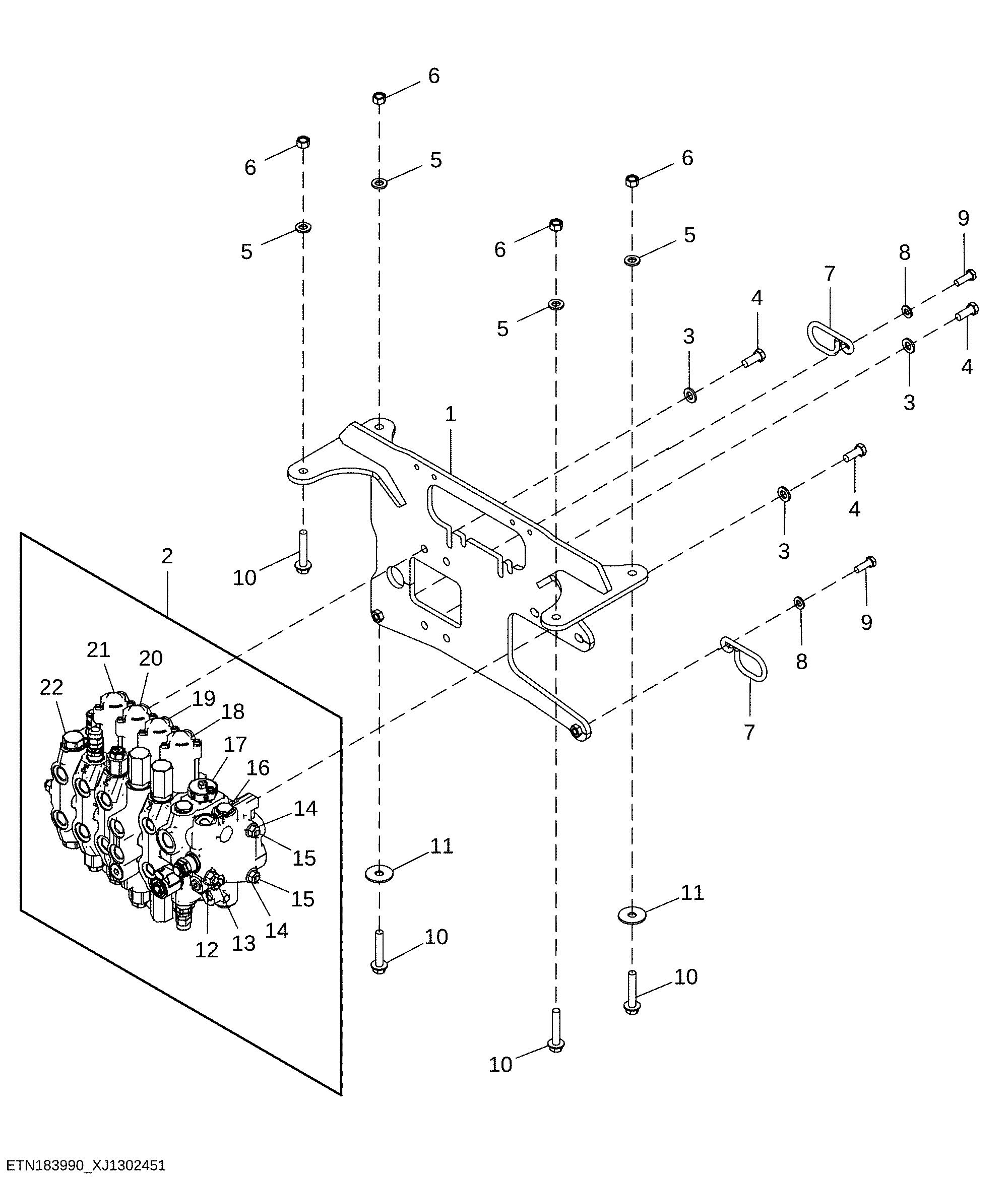

Backhoe Valve, Six Function Pilot with Extendable Dipperstick and Select Flow

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT314672	1	Bracket	-
2	AT483184	1	Hyd Actuated Control Valve	CA Six Function Backhoe Valve with Extendable Dipperstick and Select Flow
3	24M7240	3	Washer	13 X 25 X 3 mm
4	19M8011	3	Cap Screw	M12 X 30
5	24M7240	4	Washer	13 X 25 X 3 mm
6	14M7275	4	Nut	M12
7	T166223	2	Guide	-
8	24M7239	2	Washer	10.700 X 21 X 2.500 mm
9	19M7662	2	Cap Screw	M10 X 30
10	19M7816	4	Screw	M12 X 65
11	T187044	2	Washer	-
12	T140700	1	Rod	-
13	14H865	2	Nut	1/2"
14	T118697	2	Rod	-
15	14H807	4	Nut	7/16"
16	AT386733	1	Hyd Actuated Control Valve	Inlet Section Components on Separate Page
17	AT192384	1	Flow Control Hyd. Valve	Selective Flow Section Components on Separate Page
18	AT301763	1	Spool Valve	4-Function, 5-Function, 6-Function, With Flow Control Auxiliaries Components on Separate Page
19	AT320370	1	Hyd Actuated Control Valve	Boom Section Components on Separate Page
20	AT320369	1	Hyd Actuated Control Valve	Bucket Section Components on Separate Page
21	AT320378	1	Hyd Actuated Control Valve	Crowd Section Components on Separate Page
22	AT191712	1	Hyd Actuated Control Valve	Extendable Section Components on Separate Page

Backhoe Valve, Six Function Pilot with Extendable Dipperstick and Select Flow
