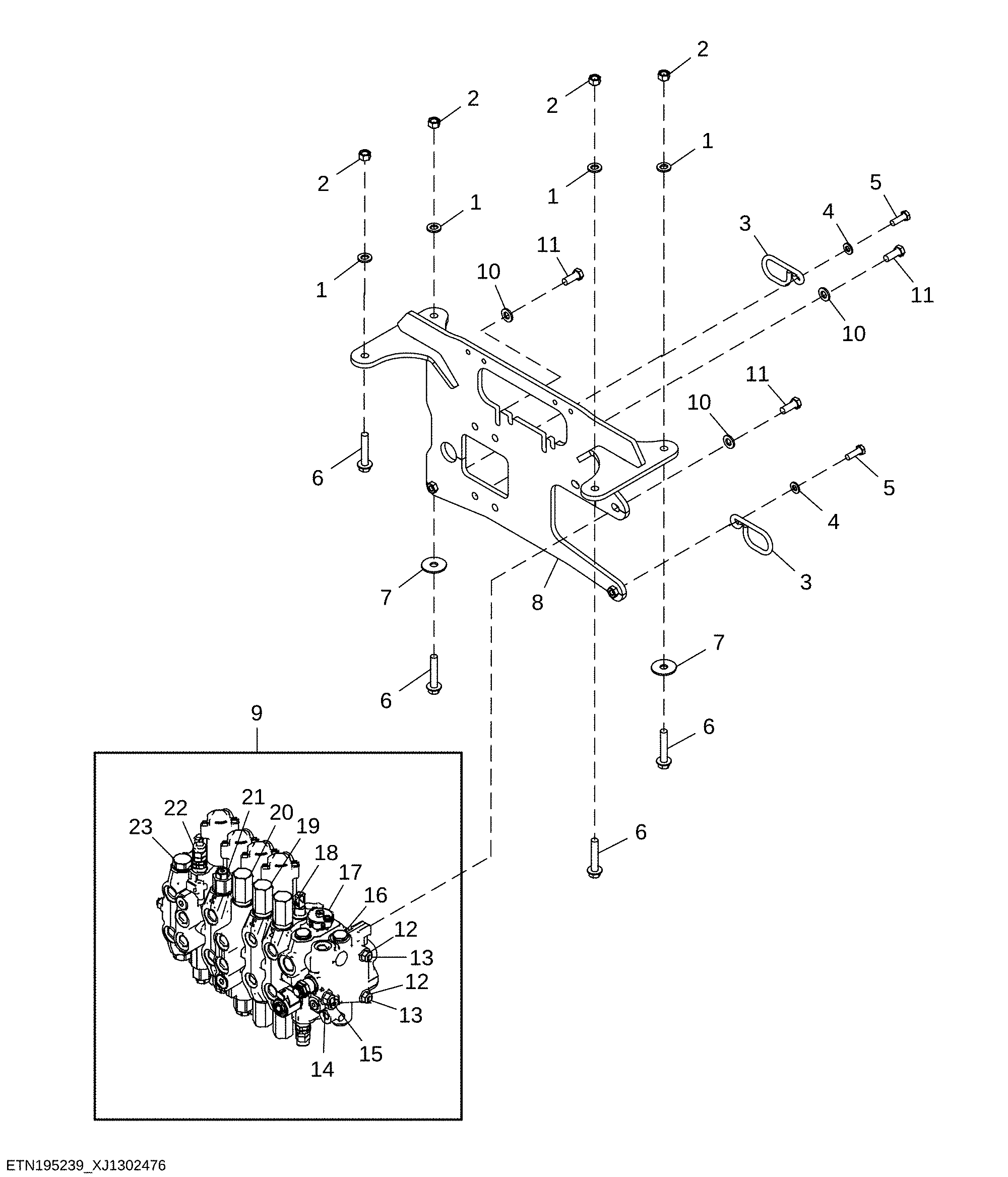

Backhoe Valve, Seven Function Pilot with Extendable Dipperstick and Select Flow

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7240	4	Washer	13 X 25 X 3 mm
2	14M7275	4	Nut	M12
3	T166223	2	Guide	-
4	24M7239	2	Washer	10.700 X 21 X 2.500 mm
5	19M7662	2	Cap Screw	M10 X 30
6	19M7816	4	Screw	M12 X 65
7	T187044	2	Washer	-
8	AT314672	1	Bracket	-
9	AT490787	1	Hyd Actuated Control Valve	CA
10	24M7240	3	Washer	13 X 25 X 3 mm
11	19M8011	3	Cap Screw	M12 X 30
12	T159263	2	Stud	-
13	14H807	4	Nut	7/16"
14	T159264	2	Stud	-
15	14H865	2	Nut	1/2"
16	AT386733	1	Hyd Actuated Control Valve	Inlet Section Components on Separate Page
17	AT192384	1	Flow Control Hyd. Valve	Selective Flow Section Components on Separate Page
18	AT191710	1	Spool Valve	Manual Auxiliary Section Components on Separate Page
19	AT300805	1	Valve	Pilot Swing Valve Components on Separate Page
20	AT320370	1	Hyd Actuated Control Valve	Boom Section Components on Separate Page
21	AT320369	1	Hyd Actuated Control Valve	Bucket Section Components on Separate Page
22	AT320378	1	Hyd Actuated Control Valve	Crowd Section Components on Separate Page
23	AT191712	1	Hyd Actuated Control Valve	Extendable Section Components on Separate Page

Backhoe Valve, Seven Function Pilot with Extendable Dipperstick and Select Flow
