Single Lever Loader Control Kit, 3-Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT469499	1	Wiring Harness	Loader Coupler Components on Separate Page
1	BYT10281	1	Valve Kit	WHOLE GOODS, ALSO ORDER AT456719, AT469499, (4) 19M7775, (4) 14M7303, T209627, (2) 57M9940, 19M7866, 14M7298 AND (12) H77698; INCLUDES AT431592
1	AT431592	1	Software	Order Through JD™ Point
1	H77698	12	Tie Band	-
1	14M7298	1	Flange Nut	M8
1	19M7866	1	Screw	M8 X 20
1	14M7303	4	Flange Nut	M6
1	57M9940	2	Elec. Connector Accessory	-
1	AT456719	1	Wiring Harness	Auxiliary Loader Coupler Wiring Harness Components on Separate Page
1	19M7775	4	Screw	M6 X 16
2	AT381636	1	Flow Control Hyd. Valve	Pilot Pressure Supply Valve, INCLUDES AT386503 AND AT335739
2	AT335739	1	Elec.Proportional Valve	INCLUDES AT368250
2	AT368250	1	Seal Kit	-
2	AT386503	1	Elec.Proportional Valve	INCLUDES AT519614 AND AT368250
2	AT519614	1	Seal Kit	-
2	AT368250	1	Seal Kit	-
3	19M8040	2	Screw	M6 X 60
4	14M7303	2	Flange Nut	M6
5	T351612	1	Label	Loader Control
6	38H3435	1	Adapter Fitting	-
7	T77613	1	O-Ring	-
8	R28782	1	O-Ring	-
9	38H5071	1	Elbow Fitting	-
10	T77857	1	O-Ring	-
11	51M7043	1	O-Ring	15.300 X 2.200 mm
12	AT438866	1	Hydraulic Hose	Return
13	AT433740	1	Hydraulic Hose	Top Pilot Cap Supply Port A
14	38H3309	2	Adapter Fitting	-
15	T77613	2	O-Ring	-
16	R28782	2	O-Ring	-
17	AT433745	1	Hydraulic Hose	Bottom Pilot Cap Supply Port B, ALSO ORDER 62M1010 AND T77613
17	62M1010	1	Fitting	-
17	T77613	1	O-Ring	-
18	38H3564	1	Adapter Fitting	-
19	T77613	1	O-Ring	-
20	R28782	1	O-Ring	-
21	T340339	1	Check Valve	-
22	T77613	1	O-Ring	-
23	R26448	1	O-Ring	-
24	AT433739	1	Hydraulic Hose	Backhoe Valve To Accumulator
25	AT433742	1	Hydraulic Hose	Accumulator To Pilot Pressure Supply Valve
26	AT433706	1	Hydraulic Hose	Backhoe Valve To Pilot Pressure Supply Valve
27	T300004	1	Bracket	-
28	T148409	2	Nut	-
29	19M7785	2	Screw	M10 X 25
30	AR44217	2	Clamp	-
31	AT432165	1	Hydraulic Hose	To Loader Valve, INCLUDES T77932
32	T77932	1	O-Ring	-
33	AT432166	1	Hydraulic Hose	To Loader Valve, INCLUDES T77932
34	38H3161	2	Adapter Fitting	-
35	T77857	2	O-Ring	-
36	R26375	2	O-Ring	-
37	AT432171	1	Oil Line	-
38	AT432172	1	Oil Line	-
39	R46919	2	Half Clamp	-
40	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
41	19M8081	1	Cap Screw	M10 X 80
42	T159954	2	Clamp	-
43	19M7875	2	Cap Screw	M10 X 70
44	T217085	1	Clamp	-
45	24M7239	3	Washer	10.700 X 21 X 2.500 mm
46	19M7784	1	Screw	M10 X 20
47	-	1	Part 63	MAKE FROM T339502 CTL, 609.6 mm (24 in)
48	H77698	2	Tie Band	-
49	AT428490	1	Grip	Single Lever Loader Control
50	T339747	1	Grip	-
51	T209627	1	Clamp	-
52	AT425597	1	Toggle/Rocker Switch	Loader Auxiliary Rocker Switch
53	AT435061	1	Hydraulic Hose	Female Coupler, INCLUDES T77932
54	AT435061	1	Hydraulic Hose	Male Coupler, INCLUDES T77932
55	T77932	1	O-Ring	-
56	KV11305	1	Hyd. Quick-Connect Coupler	Female
57	T80306	1	Nut	-
58	T77932	1	O-Ring	-
59	AT312876	1	Hyd. Quick-Connect Coupler	Male
60	T77932	1	O-Ring	-
61	T188880	1	Cap	Male
62	T188879	1	Cap	Female
63	38H3016	1	Tee Fitting	-
64	T77613	2	O-Ring	-
65	R26448	1	O-Ring	-
66	38H3004	1	Adapter Fitting	-
67	R26448	1	O-Ring	-
68	T77613	1	O-Ring	-
69	38H3160	1	Adapter Fitting	-
70	T77613	1	O-Ring	-
71	R26448	1	O-Ring	-
72	62H1021	1	Adapter Fitting	-
73	38H5037	1	Adapter Fitting	-
74	T77613	1	O-Ring	-
75	51M7042	1	O-Ring	13.300 X 2.200 mm
76	AT431035	1	Wiring Harness	Loader Auxiliary Harness
77	57M9817	1	Elec. Connector Housing	Loader Auxiliary Inline, X82
77	R78065	3	Elec. Connector Terminal	-
77	R78069	1	Elec. Connector Cavity Plug	-
78	57M8021	1	Electrical Connector Assy	Loader Auxiliary Retract, Y21
78	R78065	2	Elec. Connector Terminal	-
79	57M8022	1	Elec.Connect Locking Device	-
80	57M11055	1	Elec. Connector Housing	Loader Auxiliary Extended, Y20
80	57M8621	2	Elec. Connector Terminal	-
80	57M7399	2	Elec. Connector Seal	-
81	57M9940	1	Elec. Connector Accessory	-
82	57M7628	1	Electrical Connector Assy	-
83	38H5427	2	Fitting Plug	-
84	T77932	2	O-Ring	-
85	AT376347	1	Accumulator Kit	INCLUDES AT196760, T290050, T215217, T215216 AND T180944
85	AT196760	1	Valve Kit	INCLUDES T26209
85	T26209	1	Ring	-
85	T180944	1	Label	Warning, Accumulator English
85	T215217	1	Label	Warning, Accumulator Spanish
85	T215216	1	Label	Warning, Accumulator French
85	T290050	1	Label	Warning, Accumulator Russian
86	57M7619	1	Elec.Connect Locking Device	-
87	R44302	2	Tie Band	-
88	R44302	3	Tie Band	-
89	AT460670	1	Control Valve	5-Function Loader and Stabilizer Valve with Electrohydraulic Auxiliary Components On Separate Page, ORDER AT523874
89	AT523874	1	Control Valve	5-Function Loader and Stabilizer Valve with Electrohydraulic Auxiliary Components On Separate Page
90	T77932	1	O-Ring	-

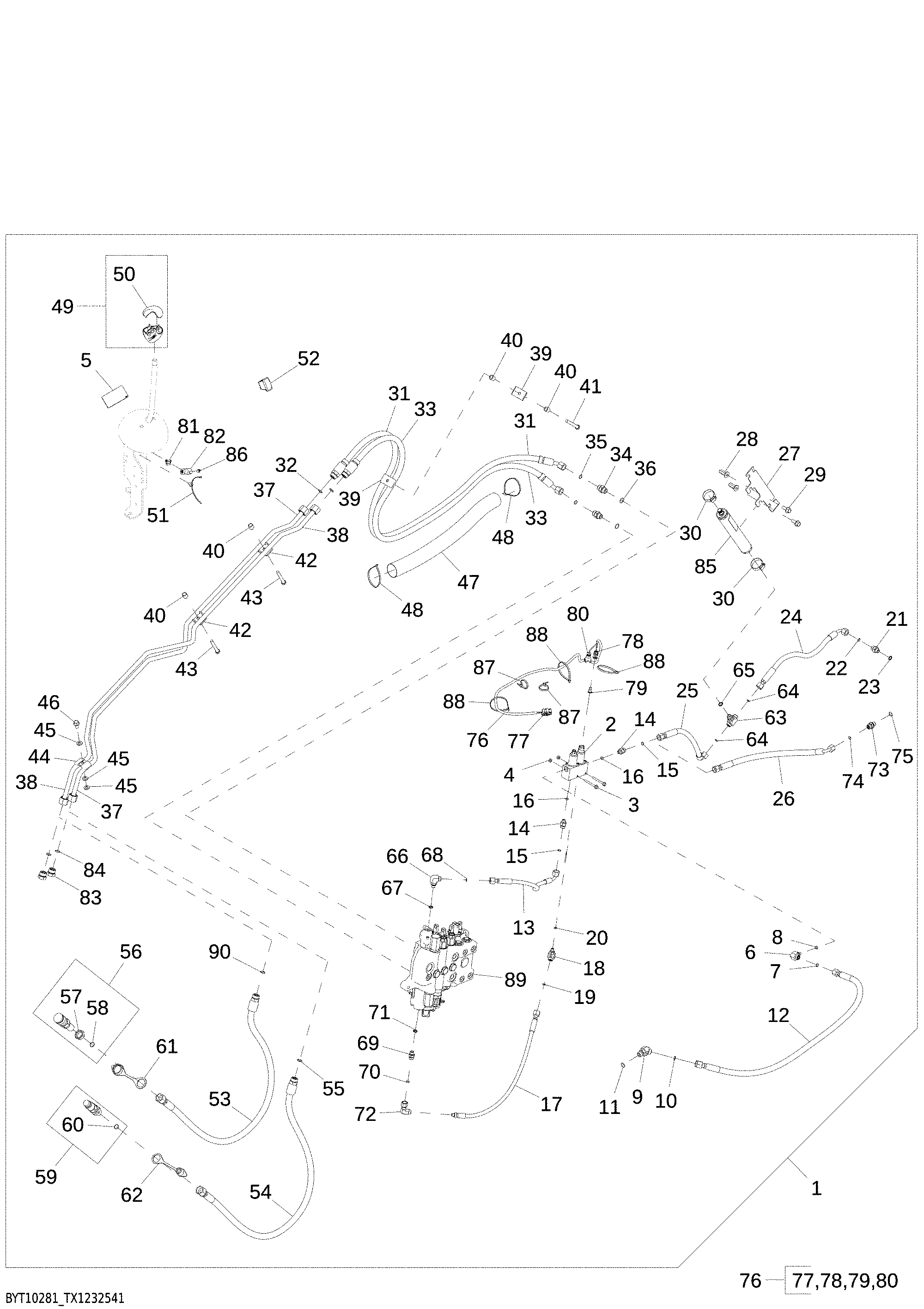

Single Lever Loader Control Kit, 3-Function
