Открытый узел

Loader Auxiliary Control Kit, Single Lever

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

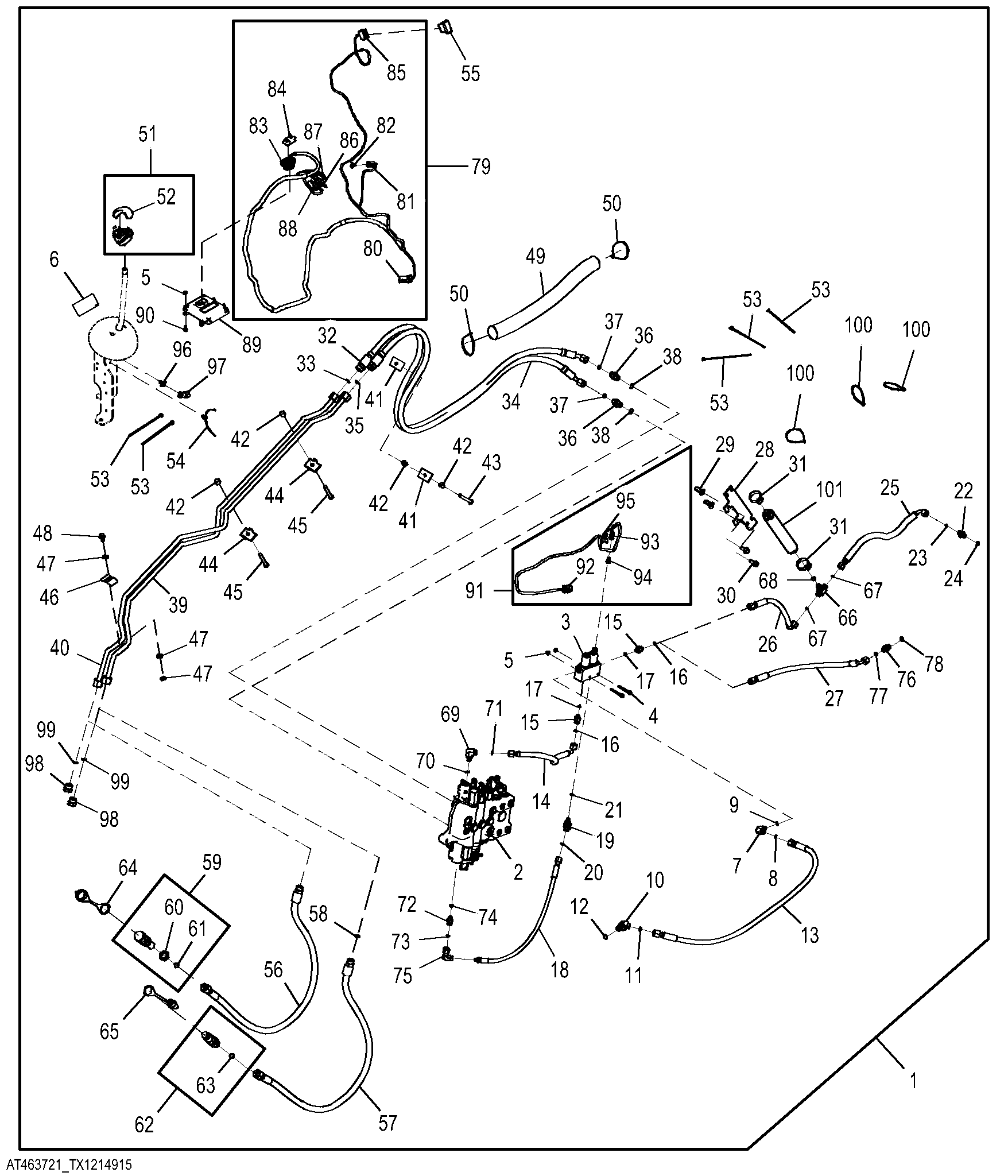

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT431592	1	Software	Must Order Software Part Number Through JD Point
1	AT463721	1	Valve Kit	Whole Goods
2	AT460670	1	Control Valve	Fifth Function Components On Separate Page
3	AT381636	1	Flow Control Hyd. Valve	Pilot Pressure Supply Valve
3	AT368250	1	Seal Kit	USE WITH AT386503 AND AT335739
3	AT386503	1	Elec.Proportional Valve	20 bar, Solenoid Valve Pressure Control
3	AT335739	1	Elec.Proportional Valve	20 bar, Solenoid Valve Pressure Supply With Deutsch Connector
4	19M8040	2	Screw	M6 X 60
5	14M7303	6	Flange Nut	M6
6	T351612	1	Label	No Text Loader Control Lever Three Function with Electrohydraulic Auxiliary
7	38H3435	1	Adapter Fitting	-
8	T77613	1	O-Ring	-
9	R28782	1	O-Ring	-
10	38H5071	1	Elbow Fitting	-
11	T77857	1	O-Ring	-
12	51M7043	1	O-Ring	15.300 X 2.200 mm
13	AT438866	1	Hydraulic Hose	Return Fabricate
14	AT433740	1	Hydraulic Hose	Fabricate
15	38H3309	2	Adapter Fitting	-
16	T77613	2	O-Ring	-
17	R28782	2	O-Ring	-
18	AT433745	1	Hydraulic Hose	Port B Fabricate, ALSO ORDER 62M1010 AND T77613
18	62M1010	1	Fitting	-
19	38H3564	1	Adapter Fitting	-
20	T77613	1	O-Ring	-
21	R28782	1	O-Ring	-
22	T340339	1	Check Valve	-
23	T77613	1	O-Ring	-
24	R26448	1	O-Ring	-
25	AT433739	1	Hydraulic Hose	To Backhoe Valve Fabricate
26	AT433742	1	Hydraulic Hose	To Solenoid Valve Fabricate
27	AT433706	1	Hydraulic Hose	Pilot Supply Fabricate
28	T300004	1	Bracket	-
29	T148409	2	Nut	-
30	19M7785	2	Screw	M10 X 25
31	AR44217	2	Clamp	-
32	AT432165	1	Hydraulic Hose	Third Function Fabricate
33	T77932	1	O-Ring	-
34	AT432166	1	Hydraulic Hose	Third Function Fabricate
35	T77932	1	O-Ring	-
36	38H3161	2	Adapter Fitting	-
37	T77857	2	O-Ring	-
38	R26375	2	O-Ring	-
39	AT432171	1	Oil Line	-
40	AT432172	1	Oil Line	-
41	R46919	2	Half Clamp	-
42	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
43	19M8081	1	Cap Screw	M10 X 80
44	T159954	2	Clamp	-
45	19M7875	2	Cap Screw	M10 X 70
46	T217085	1	Clamp	-
47	24M7239	3	Washer	10.700 X 21 X 2.500 mm
48	19M7784	1	Screw	M10 X 20
49	-	1	Part 54	MAKE FROM T339502; CTL 609.6 mm (24 in)
50	H77698	2	Tie Band	-
51	AT428490	1	Grip	-
52	T339747	1	Grip	-
53	R44302	9	Tie Band	-
54	T209627	1	Clamp	-
55	AT425597	1	Toggle/Rocker Switch	Loader Auxiliary
56	AT435061	1	Hydraulic Hose	To Male Coupler Fabricate
57	AT435061	1	Hydraulic Hose	To Male Coupler Fabricate
58	T77932	1	O-Ring	-
59	KV11305	1	Hyd. Quick-Connect Coupler	Female
60	T80306	1	Nut	-
61	T77932	1	O-Ring	-
62	AT312876	1	Hyd. Quick-Connect Coupler	Male
63	T77932	1	O-Ring	-
64	T188880	1	Cap	Male
65	T188879	1	Cap	Female
66	38H3016	1	Tee Fitting	-
67	T77613	2	O-Ring	-
68	R26448	1	O-Ring	-
69	38H3004	1	Adapter Fitting	-
70	R26448	1	O-Ring	-
71	T77613	1	O-Ring	-
72	38H3160	1	Adapter Fitting	-
73	T77613	1	O-Ring	-
74	R26448	1	O-Ring	-
75	62H1021	1	Adapter Fitting	-
76	38H5037	1	Adapter Fitting	-
77	T77613	1	O-Ring	-
78	51M7042	1	O-Ring	13.300 X 2.200 mm
79	AT432161	1	Wiring Harness	Loader Auxiliary
80	57M9821	1	Elec. Connector Housing	Loader Auxillary Inline
80	R78066	3	Elec. Connector Terminal	-
80	R78069	1	Elec. Connector Cavity Plug	-
81	57M10530	1	Elec. Connector Housing	Loader Control Lever
81	57M8263	4	Elec. Connector Terminal	-
82	57M7618	1	Electrical Connector Assy	Lock
83	57M10615	1	Elec. Connector Housing	Auxiliary Valve Controller (AVC)
83	57M10330	10	Elec. Connector Terminal	-
83	57M10331	6	Elec. Connector Terminal	-
83	57M10330	30	Elec. Connector Terminal	-
83	57M10334	2	Elec. Connector Cavity Plug	-
84	57M10613	1	Elec. Connector Housing	-
85	57M7511	3	Elec. Connector Terminal	-
85	57M10961	1	Elec. Connector Housing	Loader Auxiliary Mode Switch
86	57M9772	1	Elec. Connector Housing	Operators Station Resistor
86	57M10321	2	Elec. Connector Terminal	-
87	57M9776	1	Elec. Connector Housing	CAN Termination Resistor 2
87	57M10322	2	Elec. Connector Terminal	-
88	57M9822	1	Elec. Connector Housing	Side Console Control Option
88	57M7541	1	Elec. Connector Terminal	-
88	57M10730	3	Elec. Connector Terminal	-
89	AT431208	1	Electrohydraulic Controller	M50 Controller Required If Not Equipped Not Illustrated
90	19M7775	4	Screw	M6 X 16
91	AT431035	1	Wiring Harness	Loader Auxiliary Third Function
92	57M9817	1	Elec. Connector Housing	Loader Auxiliary Inline
92	R78065	3	Elec. Connector Terminal	-
92	R78069	3	Elec. Connector Cavity Plug	-
93	57M8021	1	Electrical Connector Assy	Loader Auxiliary Retension Solenoid
93	R78065	2	Elec. Connector Terminal	-
94	57M8022	1	Elec.Connect Locking Device	-
95	57M11055	1	Elec. Connector Housing	Loader Auxiliary Extension Soleniod
95	57M8621	2	Elec. Connector Terminal	-
95	57M7399	2	Elec. Connector Seal	-
96	57M9940	1	Elec. Connector Accessory	-
97	57M7628	1	Electrical Connector Assy	-
98	38H5427	2	Fitting Plug	-
99	T77932	2	O-Ring	-
100	R44302	3	Tie Band	-
101	AT376347	1	Accumulator Kit	Uncharged Accumulator, INCLUDES AT196760, T180944, T215217, T215216, AND T290050
101	AT196760	1	Valve Kit	INCLUDES T26209
101	T26209	1	Ring	10.820 X 1.778 mm (0.426" X 0.070")
101	T180944	1	Label	Accumulator English
101	T215217	1	Label	Accumulator Spanish
101	T215216	1	Label	Accumulator French
101	T290050	1	Label	Accumulator Russian

Loader Auxiliary Control Kit, Single Lever
