Открытый узел

Auxiliary Loader Coupler Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

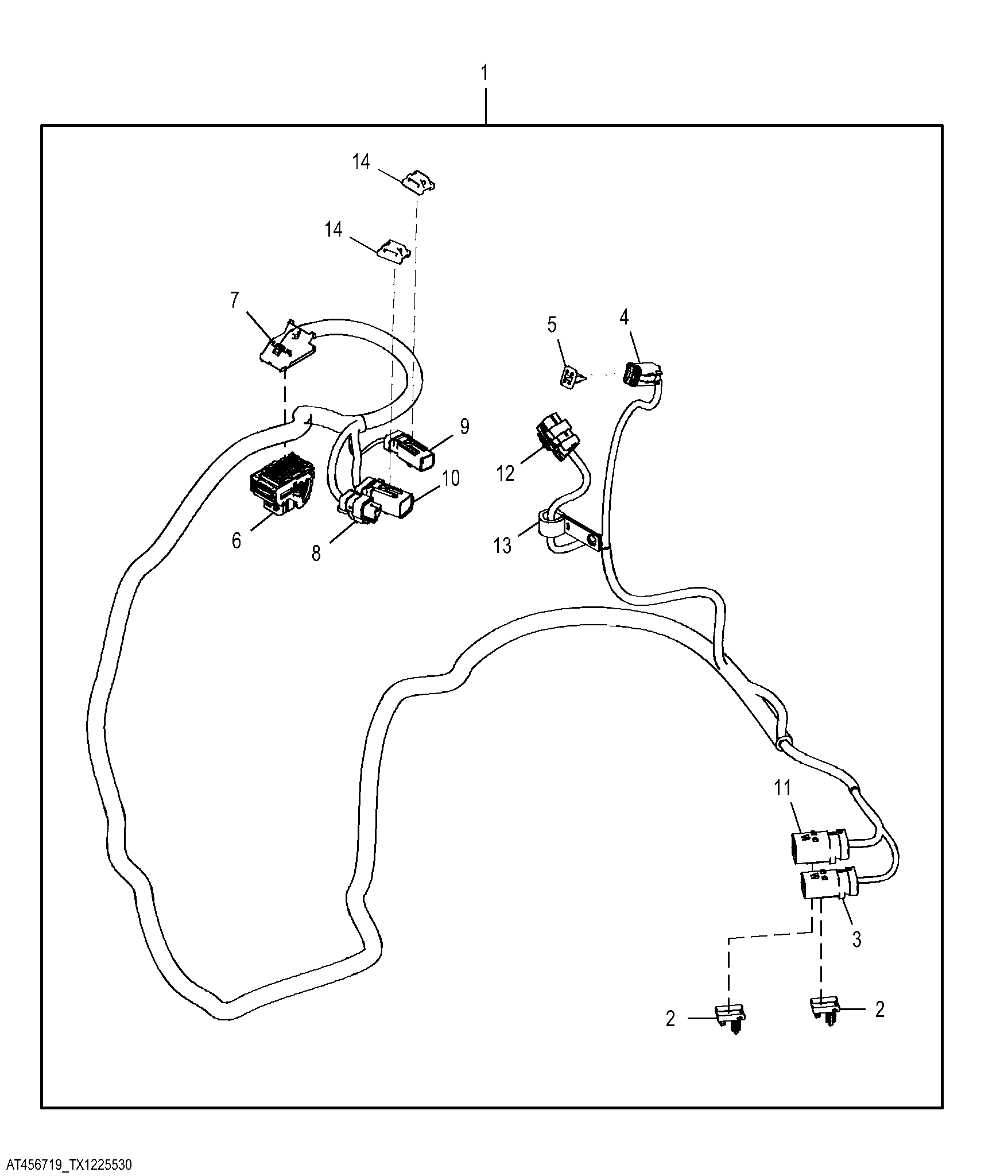

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT456719	1	Wiring Harness	Loader Coupler
2	57M9940	2	Elec. Connector Accessory	-
3	57M9821	1	Elec. Connector Housing	Loader Auxiliary Solenoid Harness Connector, X82
3	57M9813	3	Elec. Connector Terminal	-
3	57M10336	1	Elec. Connector Cavity Plug	-
4	57M10530	1	Elec. Connector Housing	Loader Control Inline Connector, X124
4	57M8263	4	Elec. Connector Terminal	-
5	57M7618	1	Electrical Connector Assy	-
6	57M10615	1	Elec. Connector Housing	Auxiliary Valve Controller (AVC), A11
6	57M10330	12	Elec. Connector Terminal	-
6	57M10617	6	Elec. Connector Housing	-
6	57M10331	1	Elec. Connector Terminal	-
6	57M10333	28	Elec. Connector Cavity Plug	-
6	57M10334	1	Elec. Connector Cavity Plug	-
7	57M10613	1	Elec. Connector Housing	-
8	57M9772	1	Elec. Connector Housing	CAN Termination Resistor 2, R02
8	57M10321	2	Elec. Connector Terminal	-
9	57M9776	1	Elec. Connector Housing	CAN Termination Resistor 2, R02
9	57M10322	2	Elec. Connector Terminal	-
10	57M9747	1	Elec. Connector Housing	Operator's Station Option Connector, X62
10	57M9811	1	Elec. Connector Terminal	-
10	57M10603	3	Elec. Connector Terminal	-
11	57M9789	1	Elec. Connector Housing	Loader Coupler Console Harness to Loader Coupler Solenoid Harness Connector, X81
11	57M10603	1	Elec. Connector Terminal	-
11	57M9813	2	Elec. Connector Terminal	-
11	57M10336	3	Elec. Connector Cavity Plug	-
12	57M9820	1	Elec. Connector Housing	Auxiliary Valve Control Harness to Loader Auxiliary and Coupler Switch Harness Connector, X83
12	57M9809	3	Elec. Connector Terminal	-
12	57M10631	1	Elec. Connector Terminal	-
13	57M13295	1	Clamp	-
14	T380249	2	Elec. Connector Accessory	-

Auxiliary Loader Coupler Wiring Harness

Нет текстового описания
