Multi Purpose Bucket Anti Drift Valve Field Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

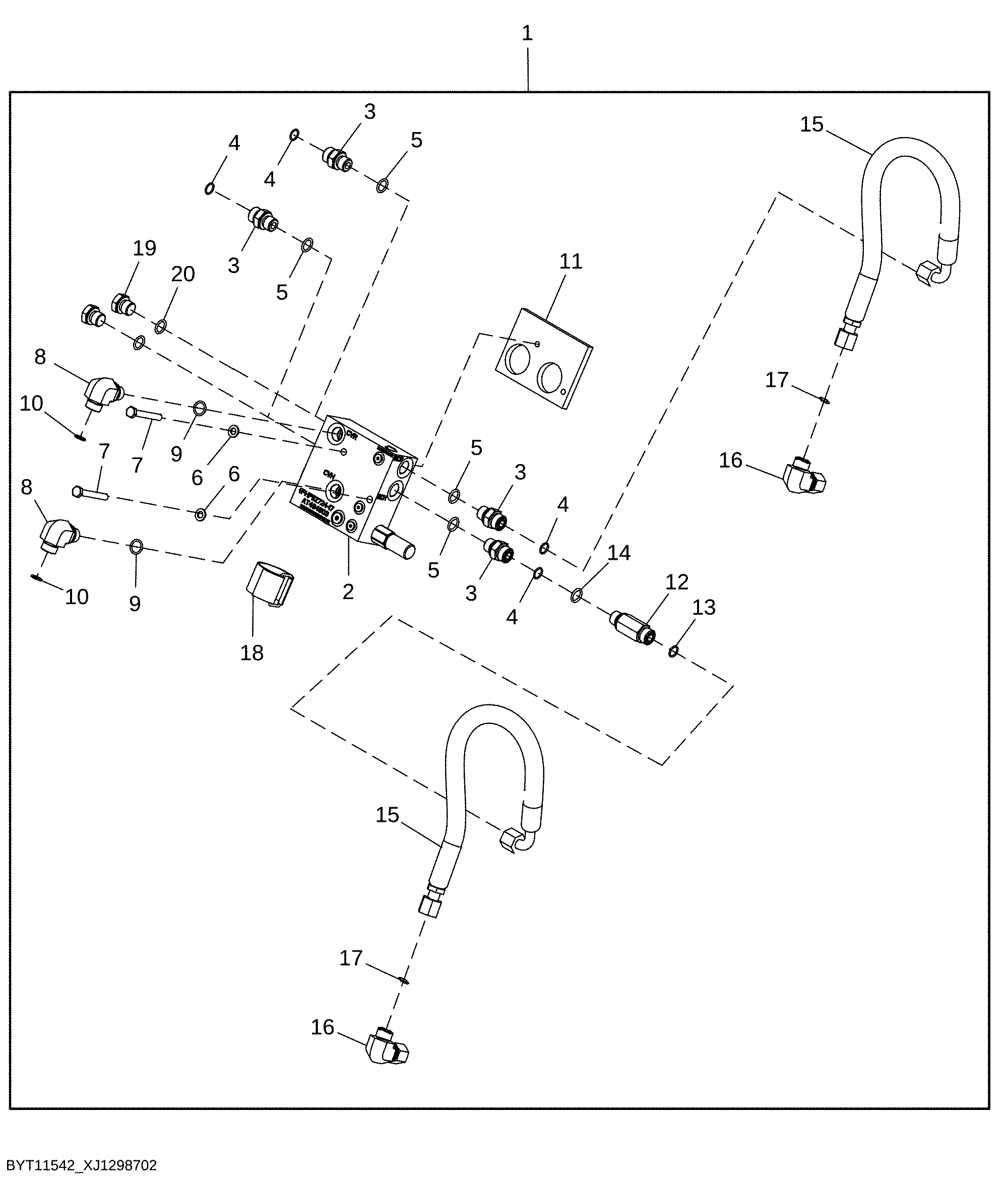

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11542	1	Valve Kit	WHOLE GOODS Multi Purpose Bucket Anti Drift Valve Field Kit
2	AT484803	1	Flow Control Hyd. Valve	Multi Purpose Bucket Anti Drift Valve, INCLUDES AT514282 AND AT464221
2	AT514282	1	Pressure Relief Valve	Sequence Cartridge, INCLUDES AT381397
2	AT381397	1	Seal Kit	Sun Counter Balance Valve Seal Kit
2	AT464221	1	Hyd Actuated Control Valve	Cartridge Check Valve, INCLUDES AT464220
2	AT464220	1	Seal Kit	-
3	38H5003	4	Adapter Fitting	-
4	T77857	4	O-Ring	-
5	51M7043	4	O-Ring	15.300 X 2.200 mm
6	24M7055	2	Washer	8.400 X 16 X 1.600 mm
7	19M7185	2	Cap Screw	M8 X 60
8	38H5017	2	Elbow Fitting	-
9	51M7043	2	O-Ring	15.300 X 2.200 mm
10	T77857	2	O-Ring	-
11	T440100	1	Bracket	Check Valve Bracket
12	38H5153	1	Adapter Fitting	-
13	T77857	1	O-Ring	-
14	51M7043	1	O-Ring	15.300 X 2.200 mm
15	AT513864	2	Hydraulic Hose	To Multi Purpose Anti Drift Valve
16	38H5107	2	Elbow Fitting	-
17	T77857	2	O-Ring	-
18	T253535	1	Adjusting Strap	-
19	64M1005	2	Drain Plug	-
20	51M7043	2	O-Ring	15.300 X 2.200 mm

Multi Purpose Bucket Anti Drift Valve Field Kit
