Pilot Enable Pattern Select Valve (PEPS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

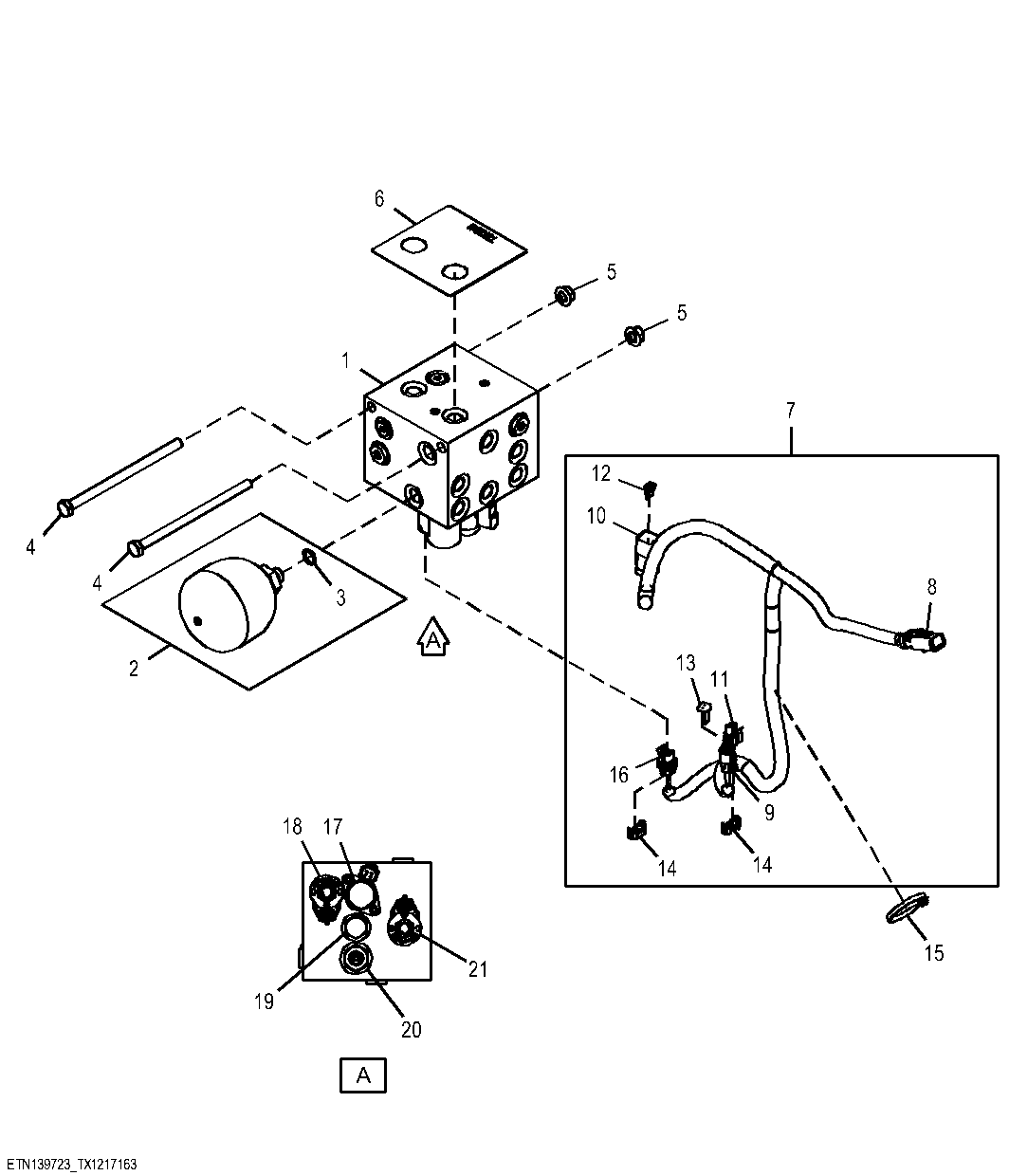

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT300255	1	Seal Kit	Seals For Pilot Actuation Manifold
1	AT484146	1	Hydr./Pilot Control Valve	Pilot Enable Pattern Select Valve
2	AT464008	1	Hydraulic Accumulator	-
3	51M7042	1	O-Ring	13.300 X 2.200 mm
4	19M9938	2	Cap Screw	M10 X 170
5	14M7296	2	Flange Nut	M10
6	T372341	1	Label	Pilot Enable Pattern Select Valve Connections
7	AT372695	1	Wiring Harness	Pilot Enable Pattern Select Valve Harness
8	57M9738	1	Elec. Connector Housing	X52-A1
8	R78066	3	Elec. Connector Terminal	-
9	R78065	2	Elec. Connector Terminal	-
9	57M8021	1	Electrical Connector Assy	Y52
10	57M8014	1	Elec. Connector Housing	X52
10	R78066	6	Elec. Connector Terminal	-
11	57M7254	1	Elec. Connector Housing	Y59
11	R104846	2	Elec. Connector Terminal	-
11	57M9883	2	Elec. Connector Cable Seal	-
12	57M7678	1	Elec. Connector Terminal	-
13	57M8022	1	Elec.Connect Locking Device	-
14	57M7289	2	Elec.Connect Locking Device	-
15	R44302	1	Tie Band	-
16	57M7254	1	Elec. Connector Housing	Y58
16	R104846	2	Elec. Connector Terminal	-
16	57M9883	2	Elec. Connector Cable Seal	-
17	KV25678	1	Solenoid Valve	-
17	AT224873	1	Seal Kit	-
17	T204128	2	Screw	-
18	AT333807	1	Solenoid Valve Coil	Solenoid Coil
18	F433465	1	Seal Kit	-
18	AT195982	1	Hydr./Pilot Control Valve	-
19	AT224570	1	Check Valve	Check Valve
19	AT224862	1	Seal Kit	-
20	AT386505	1	Pressure Relief Valve	600 psi, Pressure Reducing/Relieving Valve Inline
20	AT432210	1	Seal Kit	-
21	AT195922	1	Hyd Actuated Control Valve	Cartraige Valve
21	F433465	1	Seal Kit	-
21	AT333807	1	Solenoid Valve Coil	-
22	0344046	1	Bolt	Not Illustrated

Pilot Enable Pattern Select Valve (PEPS)

Нет текстового описания
