Открытый узел

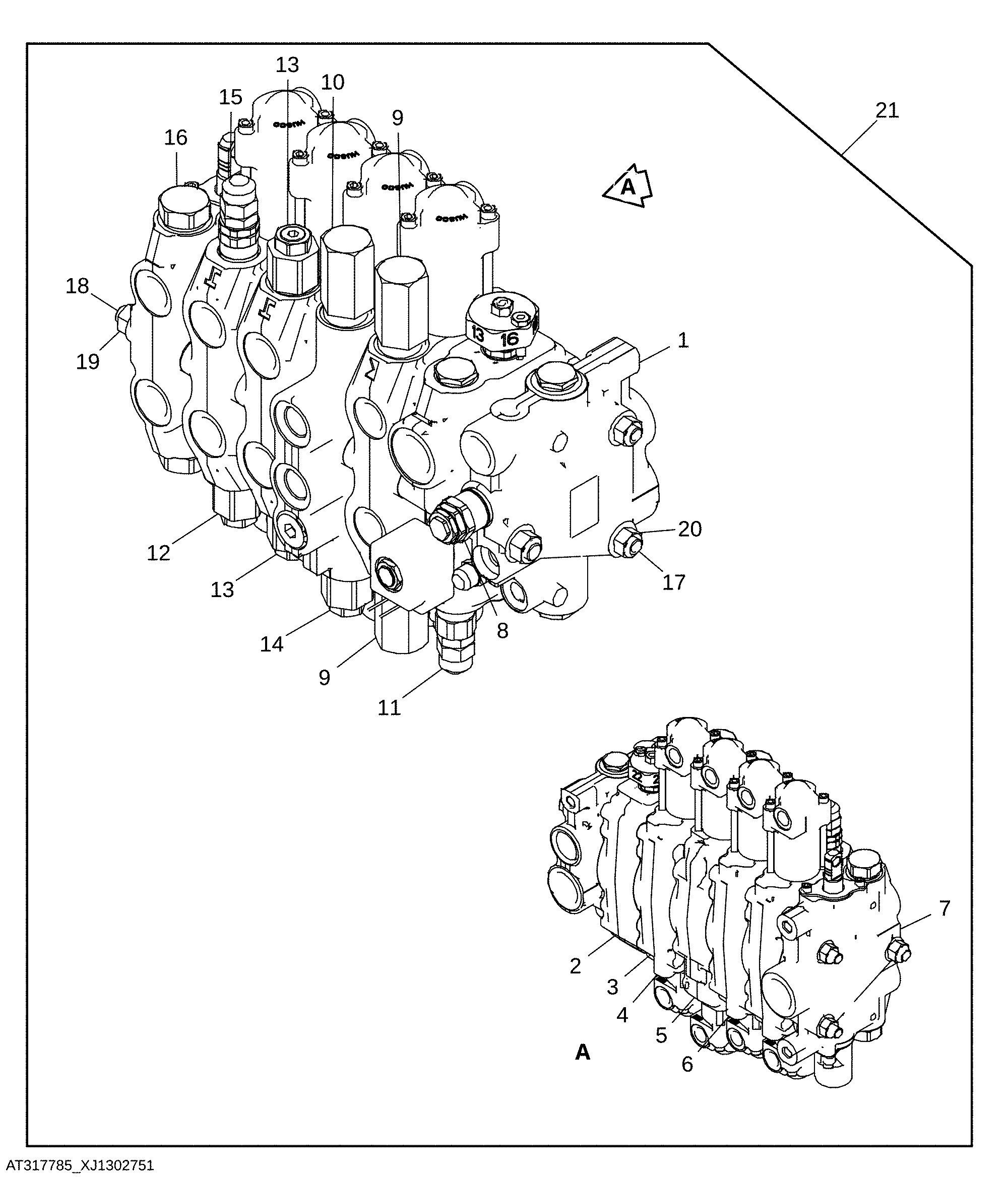

Manual Sixth Function Backhoe Valve, with Pilot Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT386733	1	Hyd Actuated Control Valve	Inlet Section Components on Seperate Page
2	AT192384	1	Flow Control Hyd. Valve	Selective flow section valve Components on Seperate Page
3	AT301763	1	Spool Valve	Swing Section Components on Seperate Page
4	AT320370	1	Hyd Actuated Control Valve	Boom Section Components on Seperate Page
5	AT320369	1	Hyd Actuated Control Valve	Bucket Section Components on Seperate Page
6	AT320378	1	Hyd Actuated Control Valve	Crowd Section Components on Seperate Page
7	AT191712	1	Hyd Actuated Control Valve	ED Section Components on Seperate Page
8	AT340275	1	Pressure Relief Valve	3525 psi, Components on Seperate Page
9	-	2	Part 9	3800 psi, Components on Seperate Page
10	AT485803	1	Pressure Relief Valve	2750 psi, Components on Seperate Page
11	AT472448	1	Pressure Relief Valve	Relief Valve Components on Seperate Page
12	AT303954	1	Pressure Relief Valve	3800 psi, Components on Seperate Page
12	AT301751	1	Pressure Relief Valve	3800 psi, Components on Seperate Page
13	AT301526	1	Pressure Relief Valve	4600 psi, Components on Seperate Page
13	AT301527	1	Pressure Relief Valve	4600 psi, Components on Seperate Page
14	AT300803	1	Pressure Relief Valve	5000 psi, Components on Seperate Page
14	AT301128	1	Pressure Relief Valve	5000 psi, Components on Seperate Page
15	AT171404	1	Pressure Relief Valve	4750 psi, Components on Seperate Page
16	AT83174	1	Fitting Plug	INCLUDES T183757
16	T183757	1	Seal	-
17	T118697	2	Rod	-
18	T140700	1	Rod	-
19	14H865	2	Nut	1/2"
20	14H807	1	Nut	7/16"
21	AT317785	1	Hyd Actuated Control Valve	Manual Sixth Function Backhoe Valve

Manual Sixth Function Backhoe Valve, with Pilot Control

Нет текстового описания
