Открытый узел

Main Hydraulic Pump Chassis Plumbing

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT472078	1	Suction Hose	Suction Hose OC
2	38H3160	1	Adapter Fitting	-
3	T77613	1	O-Ring	-
4	R26448	1	O-Ring	-
5	AT472799	1	Hydraulic Hose	Pump Pressure to Backhoe Valve
6	T167142	1	Hose Clamp	-
7	N189220	1	Tie Band	-
8	38H3194	1	Adapter Fitting	-
9	T77858	1	O-Ring	-
10	R29936	1	O-Ring	-
11	38H3005	1	Adapter Fitting	-
12	R26375	1	O-Ring	-
13	T77857	1	O-Ring	-
14	TY22485	4	Hose Clamp	-
15	AT301917	2	Hose Clamp	-
16	AT501326	1	Hydraulic Hose	Backhoe Valve Return
17	38H3343	1	Adapter Fitting	-
18	T77858	1	O-Ring	-
19	U17409	1	O-Ring	-
20	19M7835	1	Screw	M10 X 35
21	R46667	1	Clamp	-
22	14M7296	2	Flange Nut	M10
23	38H5013	3	Adapter Fitting	-
24	T77858	3	O-Ring	-
25	51M7048	3	O-Ring	29.600 X 2.900 mm
26	AT486146	1	Hydraulic Hose	Loader Valve to Hydraulic Oil Filter Return
27	38H3216	1	Adapter Fitting	-
28	T76938	1	O-Ring	-
29	R29936	1	O-Ring	-
30	AT485543	1	Hydraulic Hose	Hydraulic Power Beyond to Combo Valve
31	38H5019	2	Elbow Fitting	-
32	51M7047	2	O-Ring	23.600 X 2.900 mm
33	T77858	2	O-Ring	-
34	AT500789	1	Oil Line	Cooler Tube, INCLUDES (2) T77858
35	T77858	2	O-Ring	-
36	AT500787	1	Hydraulic Hose	Cooler Supply Hose
37	AT500790	1	Oil Line	Cooler Supply Hose, INCLUDES (2) T77858
38	T77858	2	O-Ring	-
39	AT500788	1	Hydraulic Hose	Cooler Return Hose
40	38H5264	1	Adapter Fitting	-
41	51M7048	1	O-Ring	29.600 X 2.900 mm
42	T77858	1	O-Ring	-
43	AT485480	1	Hydraulic Hose	Filter Return Hose
44	AN209299	1	Hose Clamp	-
45	R72659	4	Clamp	-
46	19M7785	5	Screw	M10 X 25
47	AT359780	1	Clamp	-
48	T159956	1	Clamp	-
49	24H1301	1	Washer	13/32" X 9/16" X 0.065"
50	19M7572	2	Cap Screw	M10 X 45
51	24M7239	3	Washer	10.700 X 21 X 2.500 mm
52	14M7274	2	Nut	M10
53	38H5400	1	Adapter Fitting	-
54	T76938	1	O-Ring	-
55	51M7049	1	O-Ring	38.600 X 2.900 mm
56	AT496626	1	Hose	Molded Filter Return
57	T422150	1	Rod	HOC Return Hose Support
58	14M7648	1	Flange Nut	M10
59	AT502137	1	Bracket	-
60	-	1	Part 60	MAKE FROM T78497, CTL 582.16 mm (22.92 in)
61	T364145	1	Hose Fitting	-
62	64M1007	1	Drain Plug	-
63	51M7045	1	O-Ring	19.300 X 2.200 mm
64	AT503329	1	Hydraulic Hose	Cooler Tube to Reservoir
65	AT503793	1	Rod	Hose Support
66	R557994	1	Clamp	-
67	38H3174	1	Adapter Fitting	-
68	T77857	1	O-Ring	-
69	R26906	1	O-Ring	-
70	38H3317	1	Elbow Fitting	-
71	T77932	1	O-Ring	-
72	R26375	1	O-Ring	-
73	AT472700	1	Hydraulic Hose	Park Brake
74	03M7195	1	Bolt	M10 X 45
75	T160554	1	Clamp	-
76	38H3003	1	Adapter Fitting	-
77	R28782	1	O-Ring	-
78	T77814	1	O-Ring	-
79	38H3168	1	Adapter Fitting	-
80	T77814	1	O-Ring	-
81	R26448	1	O-Ring	-
82	AT511367	1	Hydraulic Hose	Differential Lock
83	RE345761	2	Swivel	-
84	E73003	3	Tie Band	-
85	T430457	1	Cap	Case Drain
86	AT300153	1	Hose Clamp	-
87	E73003	1	Tie Band	-
88	AH125760	1	Hyd. Quick-Connect Coupler	-
89	R26448	1	O-Ring	-
90	R77175	1	Cover	Dust

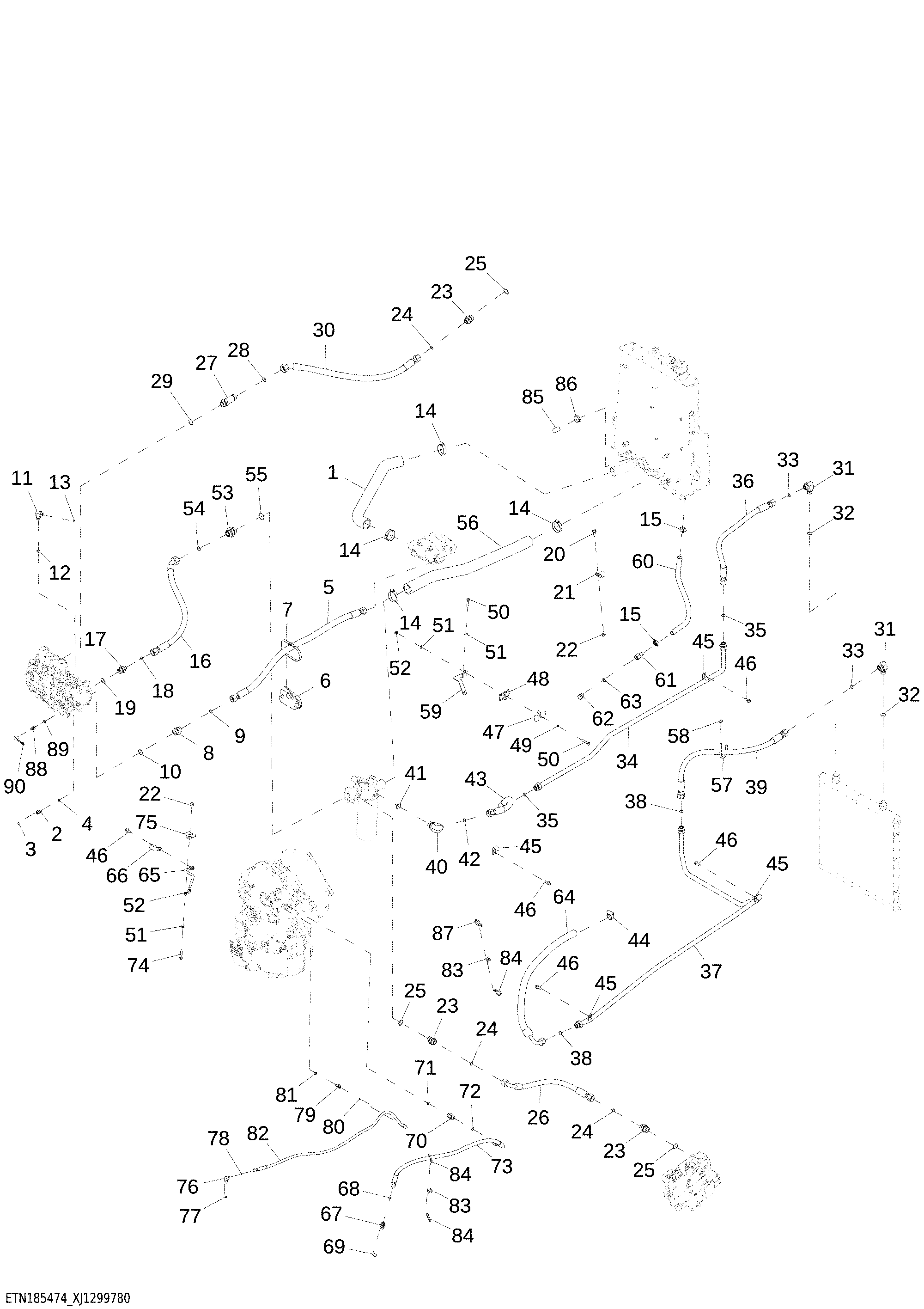

Main Hydraulic Pump Chassis Plumbing
