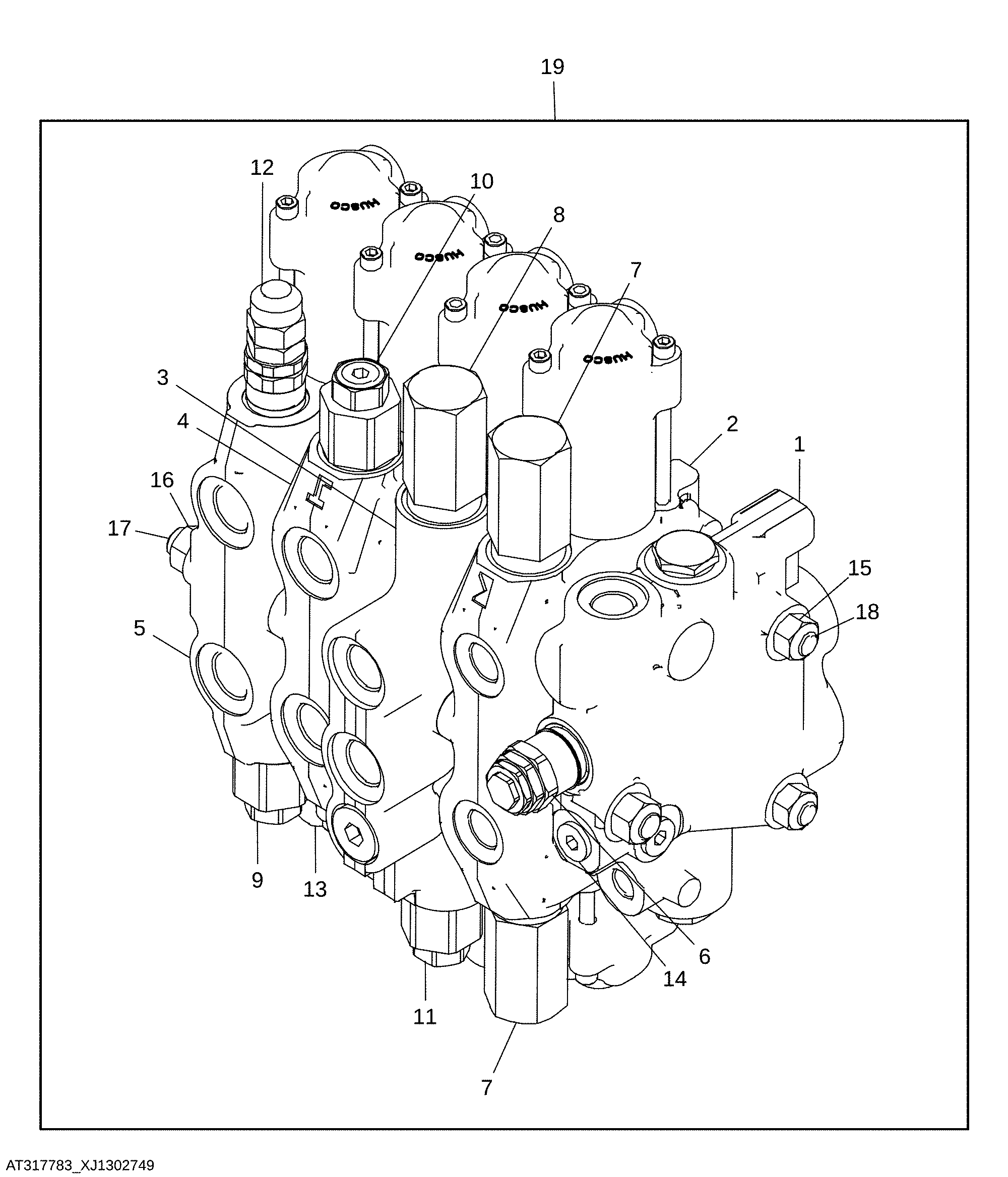

Hydraulic Actuated Control Valve with Pilot Control Fourth Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT386733	1	Hyd Actuated Control Valve	Inlet Section Components on Seperate Page
2	AT301763	1	Spool Valve	Swing Section Components on Seperate Page
3	AT320370	1	Hyd Actuated Control Valve	Boom Section Components on Seperate Page
4	AT320369	1	Hyd Actuated Control Valve	Bucket Section Components on Seperate Page
5	AT320372	1	Hyd Actuated Control Valve	Crowd Section Components on Seperate Page
6	AT340275	1	Pressure Relief Valve	3525 psi, Components on Seperate Page
7	-	2	Part 7	3800 psi, Components on Seperate Page
8	AT485803	1	Pressure Relief Valve	2750 psi, Components on Seperate Page
9	AT301751	1	Pressure Relief Valve	3800 psi, Components on Seperate Page
9	AT303954	1	Pressure Relief Valve	3800 psi, Components on Seperate Page
10	AT301527	1	Pressure Relief Valve	4600 psi, Components on Seperate Page
10	AT301526	1	Pressure Relief Valve	4600 psi, Components on Seperate Page
11	AT300803	1	Pressure Relief Valve	5000 psi, Components on Seperate Page
11	AT301128	1	Pressure Relief Valve	5000 psi, Components on Seperate Page
12	AT171404	1	Pressure Relief Valve	4750 psi, Components on Seperate Page
13	AT307332	1	Plug	Shut Off Plug
14	-	1	Part 17	ORDER AT317783
15	T160629	2	Stud	-
16	T160628	1	Stud	-
17	14H865	2	Nut	1/2"
18	14H807	4	Nut	7/16"
19	AT317783	1	Hyd Actuated Control Valve	Manual Fourth Function Backhoe Valve

Hydraulic Actuated Control Valve with Pilot Control Fourth Function
