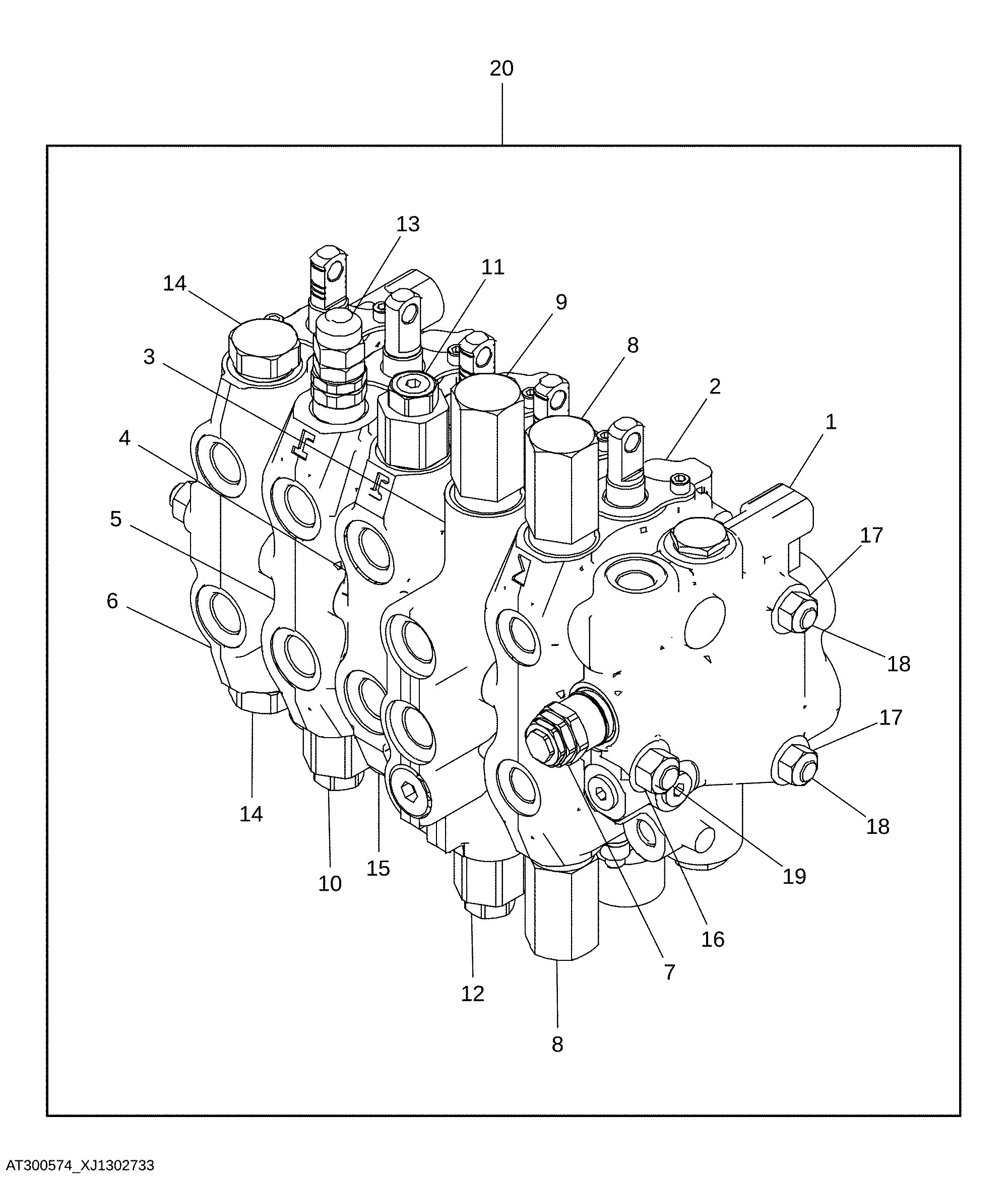

Hydraulic Actuated Control Valve with Fifth Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT386733	1	Hyd Actuated Control Valve	Inlet Section Components on Seperate Page
2	AT191709	1	Hyd Actuated Control Valve	Swing Valve Components on Seperate Page
3	AT301789	1	Hyd Actuated Control Valve	Boom Section Components on Seperate Page
4	AT301786	1	Hyd Actuated Control Valve	Bucket Section Components on Seperate Page
5	AT301787	1	Hyd Actuated Control Valve	Crowd Section Components on Seperate Page
6	AT191712	1	Hyd Actuated Control Valve	ED Section Components on Seperate Page
7	AT340275	1	Pressure Relief Valve	3525 psi, Components on Seperate Page
8	-	2	Part 8	3800 psi, Components on Seperate Page
9	AT485803	1	Pressure Relief Valve	2750 psi, Components on Seperate Page
10	AT303954	1	Pressure Relief Valve	3800 psi, Components on Seperate Page
10	AT301751	1	Pressure Relief Valve	3800 psi, Components on Seperate Page
11	AT301526	1	Pressure Relief Valve	4600 psi, Components on Seperate Page
11	AT301527	1	Pressure Relief Valve	4600 psi, Components on Seperate Page
12	AT300803	1	Pressure Relief Valve	5000 psi
12	AT301128	1	Pressure Relief Valve	5000 psi, Components on Seperate Page
13	AT171404	1	Pressure Relief Valve	4750 psi, Components on Seperate Page
14	AT83174	2	Fitting Plug	Shut Off Plug
15	AT307332	1	Plug	Shut Off Plug
16	14H865	1	Nut	1/2"
17	14H807	1	Nut	7/16"
18	T118695	1	Rod	-
19	T140699	1	Rod	-
20	AT300574	1	Manual Hydraulic Valve	CA Manual Fifth Function Backhoe Valve

Hydraulic Actuated Control Valve with Fifth Function
