Fuel Filter and Lines (Engine 4045HT054, 4045HT072, 4045HT086, 4045HT087-) (272373 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T289880	1	Bracket	-
2	19M7804	2	Screw	M10 X 40
3	RE559942	1	Filter Head	Complete Primary Assembly with Water Sepatator and Water In Fuel Sensor
3	RE541922	1	Filter Element	Element Not Illustrated
3	RE51650	1	Sediment Bowl	Not Illustrated
3	RE526834	1	Filter Kit	Not Illustrated
3	RE60854	1	Valve Kit	Not Illustrated
3	RE516553	1	Seal Kit	Not Illustrated
3	RE545631	1	Sensor	Water In Fuel Not Illustrated
4	38H5008	2	Adapter Fitting	-
5	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
6	51M7040	2	O-Ring	9.300 X 2.200 mm
7	AT396959	1	Hose	-
8	AT335148	1	Hydraulic Hose	Fabricate
9	AR77962	6	Hose Clamp	-
10	19M7835	2	Screw	M10 X 35
11	14M7296	2	Flange Nut	M10
12	RE46686	2	Fitting Plug	O-Ring, INCLUDES
13	-	1	Part 19	MAKE FROM TY22503, CTL 2.90 m (9.500 ft)
14	T27523	2	Clamp	-
15	19M7572	1	Cap Screw	M10 X 45
16	-	1	Part 22	MAKE FROM PS-B-15, CTL 192.00 cm (75.590 in)
17	AH77869	1	Clip	-
18	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
19	-	1	Part 25	MAKE FROM M87571, CTL 2.04 m (7.400 ft)
20	-	1	Part 26	MAKE FROM PS-B-16, CTL 166.70 cm (65.630 in)
21	R44302	4	Tie Band	-
22	R44302	2	Tie Band	-
23	AH96317	2	Clip	-
24	T238878	1	Fuel Line	-

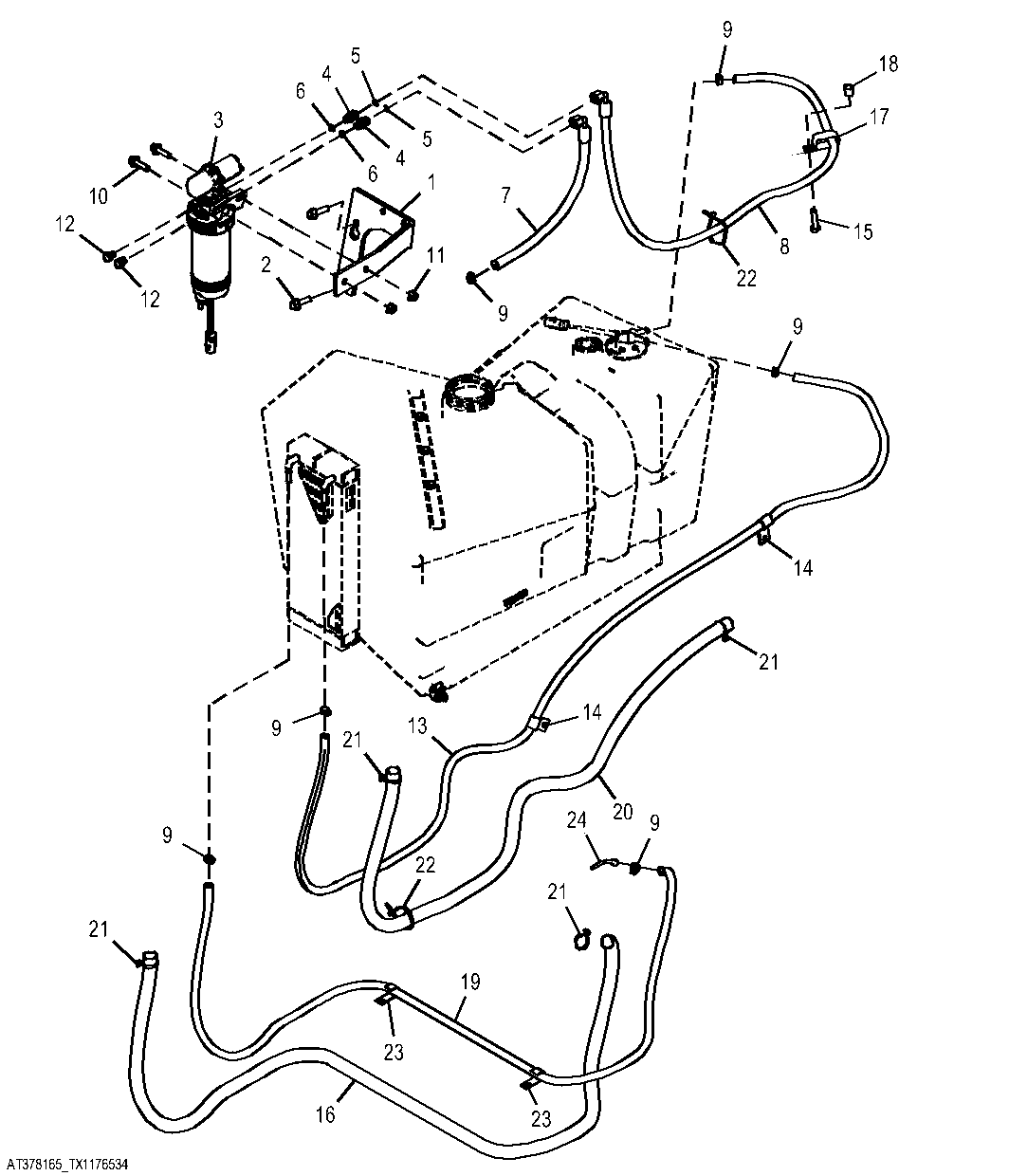

Fuel Filter and Lines (Engine 4045HT054, 4045HT072, 4045HT086, 4045HT087-) (272373 - )

Нет текстового описания
