Air Conditioning System (Engine 4045HT054, 4045HT072, 4045HT086, 4045HT087)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T347011	1	Bracket	SUB FOR T277801
2	34M7189	2	Spring Pin	11 X 8 mm
3	RE284680	1	Compressor	-
4	19M7913	3	Screw	M8 X 90
5	AT376003	1	Plate	-
6	T27523	1	Clamp	-
7	R34557	1	Clamp	-
8	24M7238	1	Washer	8.700 X 17 X 2 mm
9	19M7513	1	Cap Screw	M8 X 30
10	AT403941	1	Refrigerant Hose	-
11	24M7293	2	Washer	6.500 X 13 X 1.600 mm
12	19M8505	2	Screw	M6 X 25
13	T143169	1	O-Ring	-
14	AT373101	1	Refrigerant Hose	-
15	R113050	1	O-Ring	-
16	-	1	Part 16	Components On Separate Page, AT393132 NLA
17	T280861	1	Bracket	-
18	24M7239	1	Washer	10.700 X 21 X 2.500 mm
19	19M7572	1	Cap Screw	M10 X 45
20	R40445	1	Grommet	-
21	AT374479	1	Wiring Harness	Air Conditioning Engine Harness
22	57M10942	1	Diode	-
23	57M9730	1	Elec. Connector Housing	-
24	57M7306	1	Elec.Connect Locking Device	-
25	AT103399	1	Diode	-
26	R44302	2	Tie Band	-
27	T204370	1	Tie Band	-
28	R115350	1	Grommet	-
29	51M7089	1	O-Ring	10.800 X 2.400 mm
30	51M7090	1	O-Ring	13.400 X 2.400 mm
31	T297306	1	Bracket	-
32	AT162848	1	Receiver-Dryer	-
33	TY22474	2	Clamp	-
34	AT439957	1	Refrigerant Hose	SUB FOR AT391470, ALSO ORDER AT439968
34	AT439957	1	Refrigerant Hose	-
35	R183409	2	O-Ring	-
36	AT439968	1	Refrigerant Hose	SUB FOR AT403940, ALSO ORDER AT439957
36	AT439968	1	Refrigerant Hose	-
37	R183409	1	O-Ring	-
38	-	1	Part 40	MF T82659, CTL 53.34 cm (1.75 ft)
39	19M7785	1	Screw	M10 X 25
40	R136508	1	Screw	-
41	T242165	1	Spacer	-
42	H77698	1	Tie Band	-

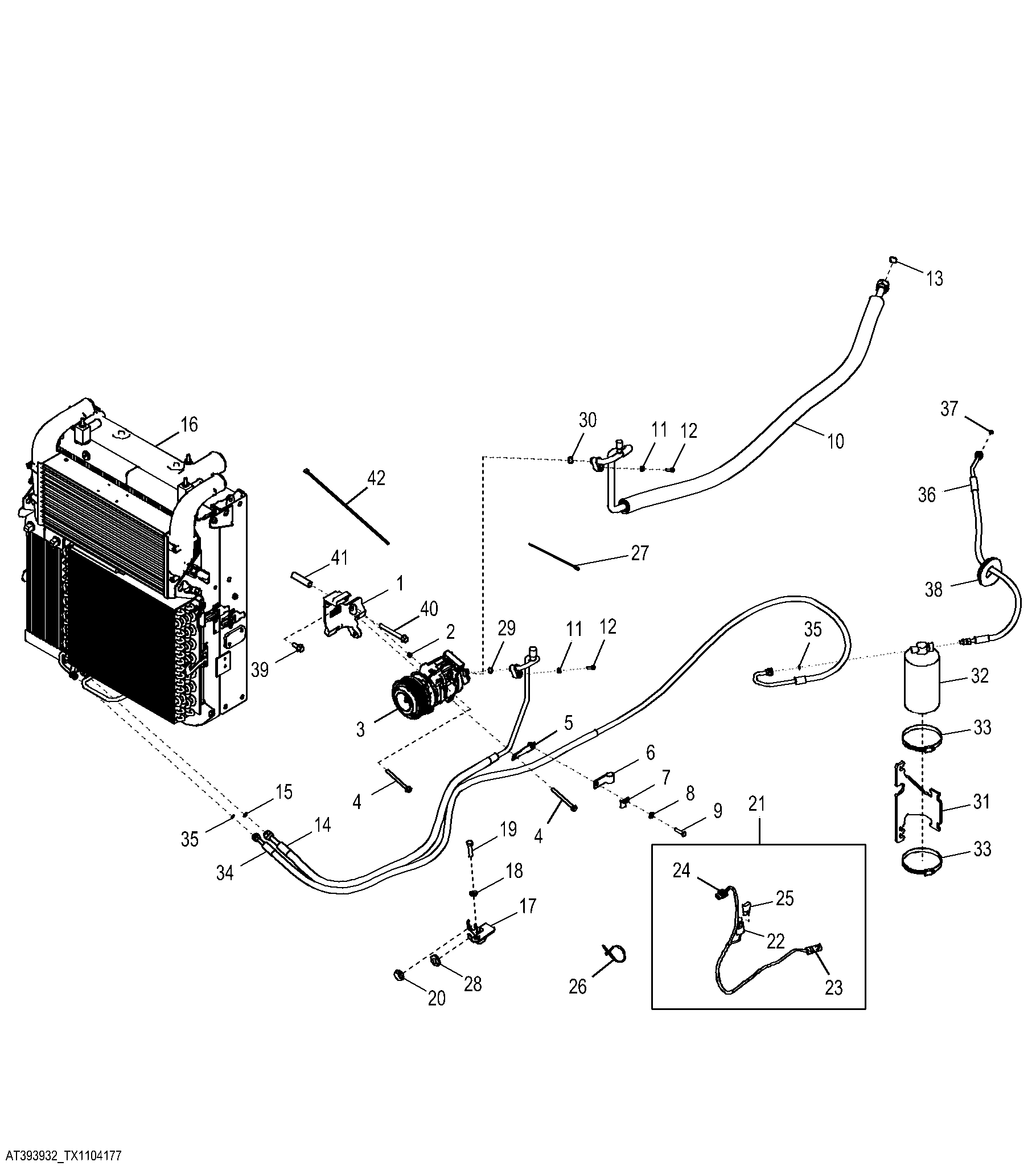

Air Conditioning System (Engine 4045HT054, 4045HT072, 4045HT086, 4045HT087)
