Открытый узел

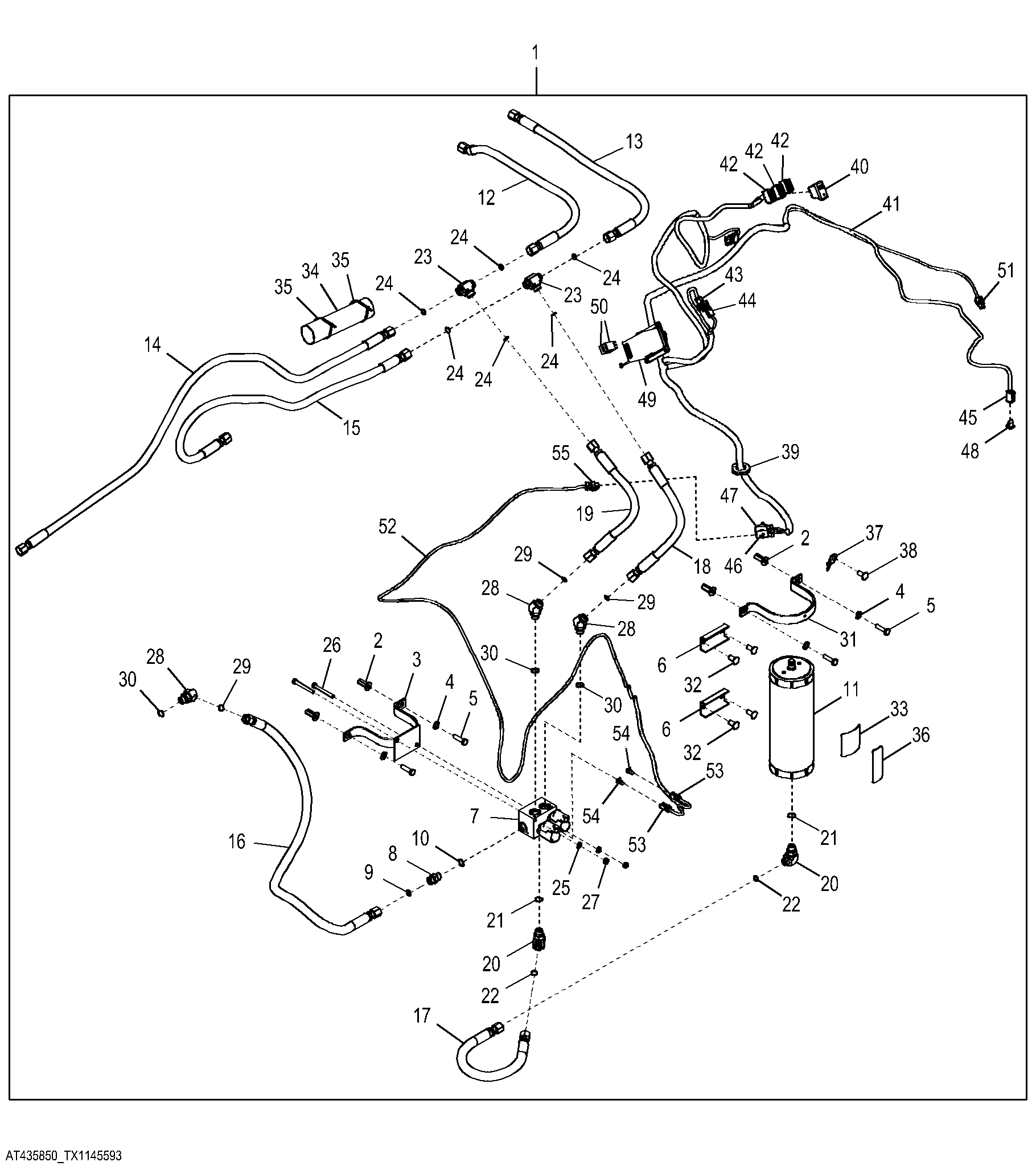

Ride Control Kit (Engine 4045TT096-RE556068)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T187193	2	Label	Ride Control
1	AT435850	1	Valve Kit	Whole Goods
2	T148409	4	Nut	-
3	AT323844	1	Clamp	-
4	24M7239	4	Washer	10.700 X 21 X 2.500 mm
5	19M7550	4	Cap Screw	M10 X 35
6	T216750	2	Channel	-
7	R28776	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
7	R47151	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
7	E71998	2	Back-Up Ring	-
7	AT280441	2	Solenoid Valve Coil	-
7	AT280440	2	Solenoid Hydraulic Valve	Valve Cartridge
7	14M7477	2	Nut	M18
7	AT443892	1	Solenoid Hydraulic Valve	Metric Fitting Ports Ride Control, ALSO ORDER 38H5003, 38H5017, (2) 38H5071, (4) T77857, AND (4) 51M7043 SUB FOR AT310818
8	38H1161	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
11	AT196351	1	Hydraulic Accumulator	Requires Label, T225374, T225375, T225376, OR T252395
11	AT196760	1	Valve Kit	-
12	AT391758	1	Hydraulic Hose	Fabricate
13	AT325028	1	Hydraulic Hose	Fabricate
14	AT403134	1	Hydraulic Hose	Rod To Ride Control Tee Fabricate
14	AT403074	1	Hydraulic Hose	with Ride Control Fabricate
15	AT199645	1	Hydraulic Hose	with Ride Control Fabricate
15	AT403133	1	Hydraulic Hose	Rod To Ride Control Tee Fabricate
16	AT199641	1	Hydraulic Hose	Fabricate
17	AT199640	1	Hydraulic Hose	Fabricate
18	AT199639	1	Hydraulic Hose	Fabricate
19	AT199639	1	Hydraulic Hose	Fabricate
20	38H1005	2	Elbow Fitting	-
21	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
22	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
23	38H5031	2	Tee Fitting	-
24	T77857	6	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
25	24M7238	2	Washer	8.700 X 17 X 2 mm
26	19M7663	2	Cap Screw	M8 X 70
27	14M7273	2	Nut	M8
28	38H1046	3	Elbow Fitting	-
29	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
30	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
31	T216756	1	Clamp	-
32	MT2485	4	Plug	-
33	T225374	1	Label	English Accumulator Warning
33	T225376	1	Label	Spanish Accumulator Warning
33	T225375	1	Label	French Accumulator Warning
33	T252395	1	Label	Russian Accumulator Warning
34	-	1	Part 47	CTL 25.40 cm (10.000 in) MF T78606
35	H77698	2	Tie Band	-
36	T305799	1	Label	Accumulator No Text
37	T210717	1	Bracket	-
38	MT2485	1	Plug	-
39	R50636	1	Grommet	-
40	AT317451	1	Toggle/Rocker Switch	Ride Control
41	AT375551	1	Wiring Harness	Pilot Flow Ride
42	T210282	3	Elec. Connector Housing	-
43	RE12363	1	Electrical Connector Assy	-
44	R78053	1	Electrical Connector Assy	-
45	57M8012	1	Electrical Connector Assy	-
46	57M9733	1	Elec. Connector Housing	-
47	57M9730	1	Elec. Connector Housing	-
48	57M8013	1	Elec.Connect Locking Device	-
49	AT346012	1	Fuse Box	NLA; ORDER AT475421
49	AT475421	1	Fuse Box	-
49	T339027	1	Fuse Box	Cover
49	T279729	1	Label	Load Center Base
50	AT434626	2	Relay	-
51	RE12363	1	Electrical Connector Assy	-
52	AT375570	1	Wiring Harness	Ride Control Valve
53	57M8021	2	Electrical Connector Assy	-
54	57M8022	2	Elec.Connect Locking Device	-
55	57M9729	1	Elec. Connector Housing	-
56	38H5003	1	Adapter Fitting	Not Illustrated
57	38H5017	1	Elbow Fitting	Not Illustrated
58	38H5071	2	Elbow Fitting	Not Illustrated
59	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
60	51M7043	4	O-Ring	15.300 X 2.200 mm, Not Illustrated

Ride Control Kit (Engine 4045TT096-RE556068)

Нет текстового описания
