Открытый узел

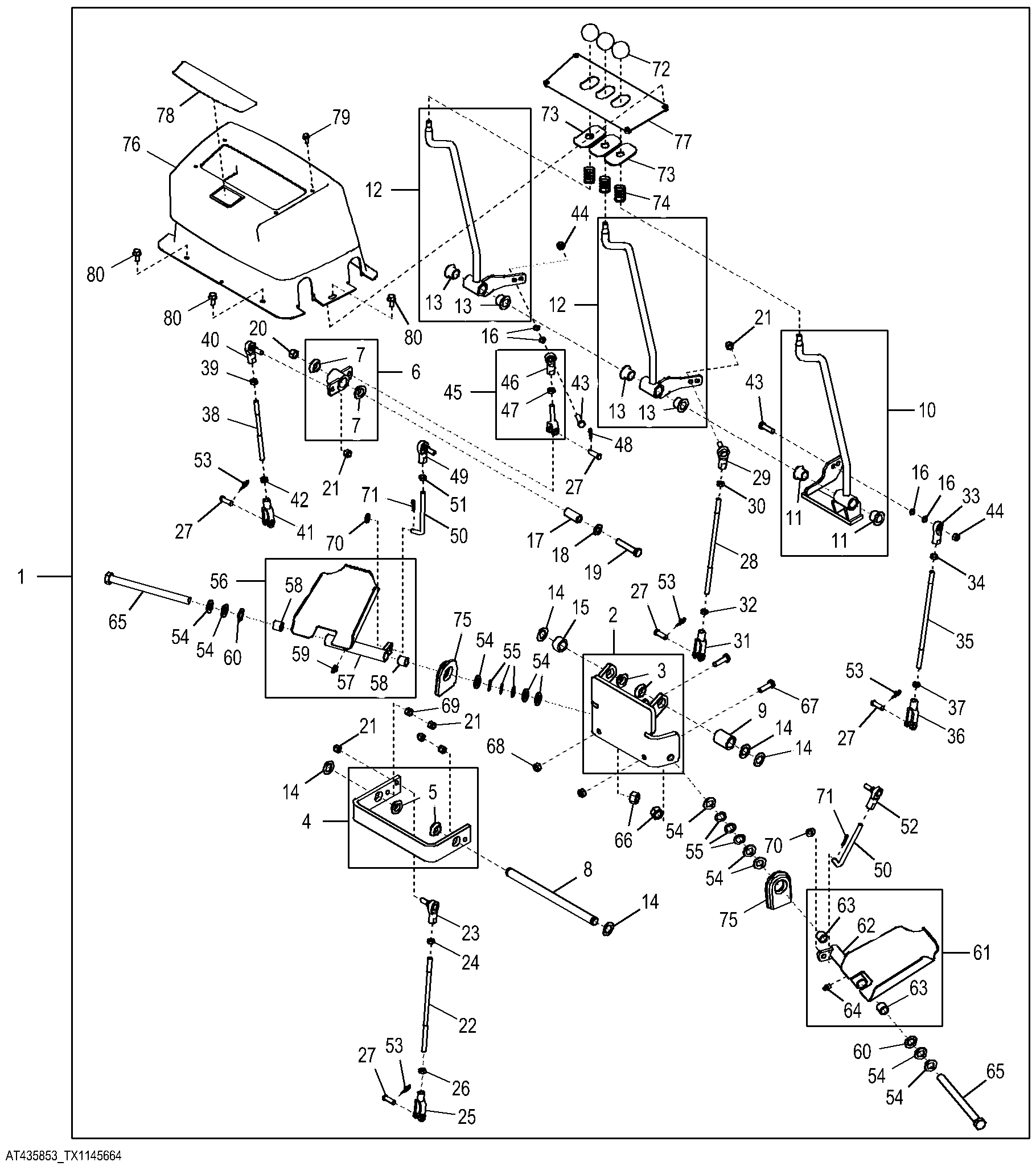

Backhoe Control Valve Linkage Conversion Kit, 3-Lever

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Whole Goods, AT435853 NLA
2	AT317091	1	Support	-
3	T166097	2	Bearing	-
4	AT185340	1	Bracket	-
5	T166097	2	Bearing	-
6	AT309186	1	Bellcrank	-
7	T166097	2	Bearing	-
8	T207309	1	Pin	-
8	U17408	2	Ring	-
9	T207484	1	Spacer	-
10	AT309185	1	Control Lever	-
11	T212828	2	Bushing	-
12	AT309184	2	Control Lever	-
13	T212828	2	Bushing	-
14	24H1391	5	Washer	25/32" X 1-5/16" X 0.060"
15	T167247	1	Spacer	-
16	M359T	4	Washer	-
17	T166031	1	Spacer	-
18	24M7240	1	Washer	13 X 25 X 3 mm
19	19M7363	1	Cap Screw	M12 X 60
20	14M7275	1	Nut	M12
21	M68954	5	Lock Nut	-
22	T165697	1	Rod	-
23	AT169087	1	Ball Joint	-
24	14H774	1	Nut	3/8"
25	T140328	1	Yoke	Left
26	14H913	1	Nut	3/8"
27	R65563	5	Pin Fastener	-
28	T165697	1	Rod	-
29	AT169087	1	Ball Joint	-
30	14H774	1	Nut	3/8"
31	T140328	1	Yoke	Left
32	14H913	1	Nut	3/8"
33	AE37072	1	Link End	-
34	14H774	1	Nut	3/8"
35	T165788	1	Rod	-
36	T140328	1	Yoke	Left
37	14H913	1	Nut	3/8"
38	T165787	1	Rod	-
39	14H774	1	Nut	3/8"
40	AT169087	1	Ball Joint	-
41	T140328	1	Yoke	Left
42	14H913	1	Nut	3/8"
43	19H3239	2	Cap Screw	3/8" X 1-1/4"
44	H129201	2	Lock Nut	Right
45	AT309413	1	Link	-
46	AE37072	1	Link End	Right
47	14H774	1	Nut	3/8"
48	R46528	1	Spring Locking Pin	-
49	AT169087	1	Ball Joint	-
50	T165785	2	Hook Bolt	-
51	14H774	1	Nut	3/8"
52	AT169087	1	Ball Joint	-
53	T202956	4	Retainer	-
54	24M7053	10	Washer	17 X 30 X 3 mm
55	M87534	6	Spring Washer	-
56	AT185749	1	Pedal	Left Swing
57	28H1605	1	Bushing	0.742" X 1.050" X 6"
58	T58109	2	Bushing	-
59	T162396	1	Lubrication Fitting	-
60	AT48016	2	Seal	-
61	AT185750	1	Pedal	Right Swing
62	28H1605	1	Bushing	0.742" X 1.050" X 6"
63	T58109	2	Bushing	-
64	T162396	1	Lubrication Fitting	-
65	19H3323	2	Cap Screw	5/8" X 8"
66	U14555	2	Lock Nut	-
67	19M7550	2	Cap Screw	M10 X 35
68	14M7274	2	Nut	M10
69	M68954	2	Lock Nut	-
70	24M7239	2	Washer	10.700 X 21 X 2.500 mm
71	R46528	2	Spring Locking Pin	-
72	39M1709	3	Knob	-
73	T209588	3	Cover	-
74	T165591	3	Spring	-
75	T166224	2	Grommet	-
76	AT189272	1	Cover	-
77	AT312121	1	Cover	-
78	T165585	1	Label	Backhoe Control 3-Lever
79	19M7775	4	Screw	M6 X 16
80	19M7866	4	Screw	M8 X 20

Backhoe Control Valve Linkage Conversion Kit, 3-Lever

Нет текстового описания
