Auxiliary Selective Flow Valve Kit (Engine 4045TT096-RE556068)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

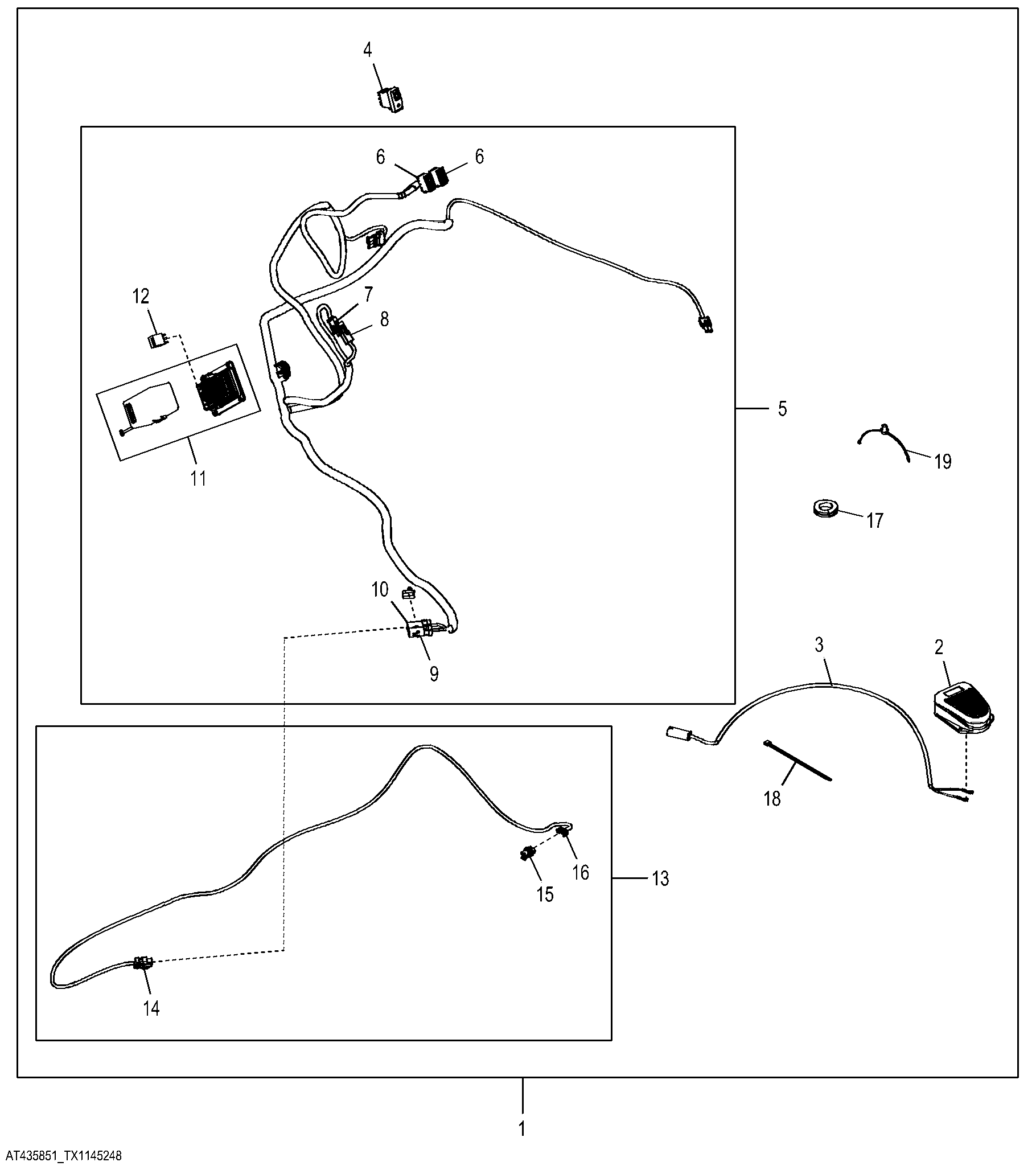

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T159264	1	Stud	7-Function
1	AT435851	1	Valve Kit	Components On Separate Page
1	14H807	4	Nut	7/16", 0.4375 in
1	14H865	2	Nut	1/2", 0.500 in
1	T159263	2	Stud	7-Function
1	T140700	1	Rod	6-Function
1	T118697	2	Rod	6-Function
1	T140699	1	Rod	5-Function
1	T118695	2	Rod	5-Function
1	AT192384	1	Flow Control Hyd. Valve	Selective Flow Components On Separate Page
1	AT417189	1	Software	Software Available Through John Deere Custom Performance Website
2	AT82210	1	Switch	Flow Control Foot Pedal
3	AT156431	1	Wiring Harness	Flow Control Foot Pedal
4	AT317504	1	Toggle/Rocker Switch	Auxiliary Hydraulics Three Position
5	AT375553	1	Wiring Harness	Operators Station
6	T210282	2	Elec. Connector Housing	-
7	RE12363	1	Electrical Connector Assy	-
8	R78053	1	Electrical Connector Assy	-
9	57M9733	1	Elec. Connector Housing	-
10	57M9730	1	Elec. Connector Housing	-
11	AT346012	1	Fuse Box	NLA; ORDER AT475421
11	AT475421	1	Fuse Box	-
11	T339027	1	Fuse Box	Cover
11	T279729	1	Label	Load Center Base
12	AT434626	1	Relay	-
13	AT375600	1	Wiring Harness	Selective Control Valve Components On Separate Page
14	57M9726	1	Elec. Connector Housing	-
15	57M7254	1	Elec. Connector Housing	-
16	57M7289	1	Elec.Connect Locking Device	-
17	R50636	1	Grommet	-
18	R44302	10	Tie Band	-
19	T209627	1	Clamp	-

Auxiliary Selective Flow Valve Kit (Engine 4045TT096-RE556068)
