Steering Hydraulics (With Mechanical Front Wheel Drive)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28H3421	4	Spacer	0.493" X 0.675" X 7/16"
2	R46919	4	Half Clamp	-
3	19M8081	1	Cap Screw	M10 X 80
4	19M7742	1	Cap Screw	M10 X 65
5	38H1160	1	Adapter Fitting	ALSO ORDER R26448 AND T77613
6	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	38H1212	1	Adapter Fitting	ALSO ORDER R26448 AND T77613
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	62H1043	1	Adapter Fitting	Not Illustrated
11	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
11	AT324031	1	Hydraulic Hose	ALSO ORDER 62H1043 AND T77857
12	AR21836	1	Clamp	-
13	AT388330	1	Hydraulic Hose	ALSO ORDER 62H1042 AND T77613
13	62H1042	1	Adapter Fitting	Not Illustrated
13	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated
14	AT388332	1	Hydraulic Hose	ALSO ORDER 62H1042 AND T77613
14	62H1042	1	Adapter Fitting	Not Illustrated
14	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated
15	-	1	Part 21	MF T78606, CTL 254.00 mm (10.00 in)
16	R44302	2	Tie Band	-

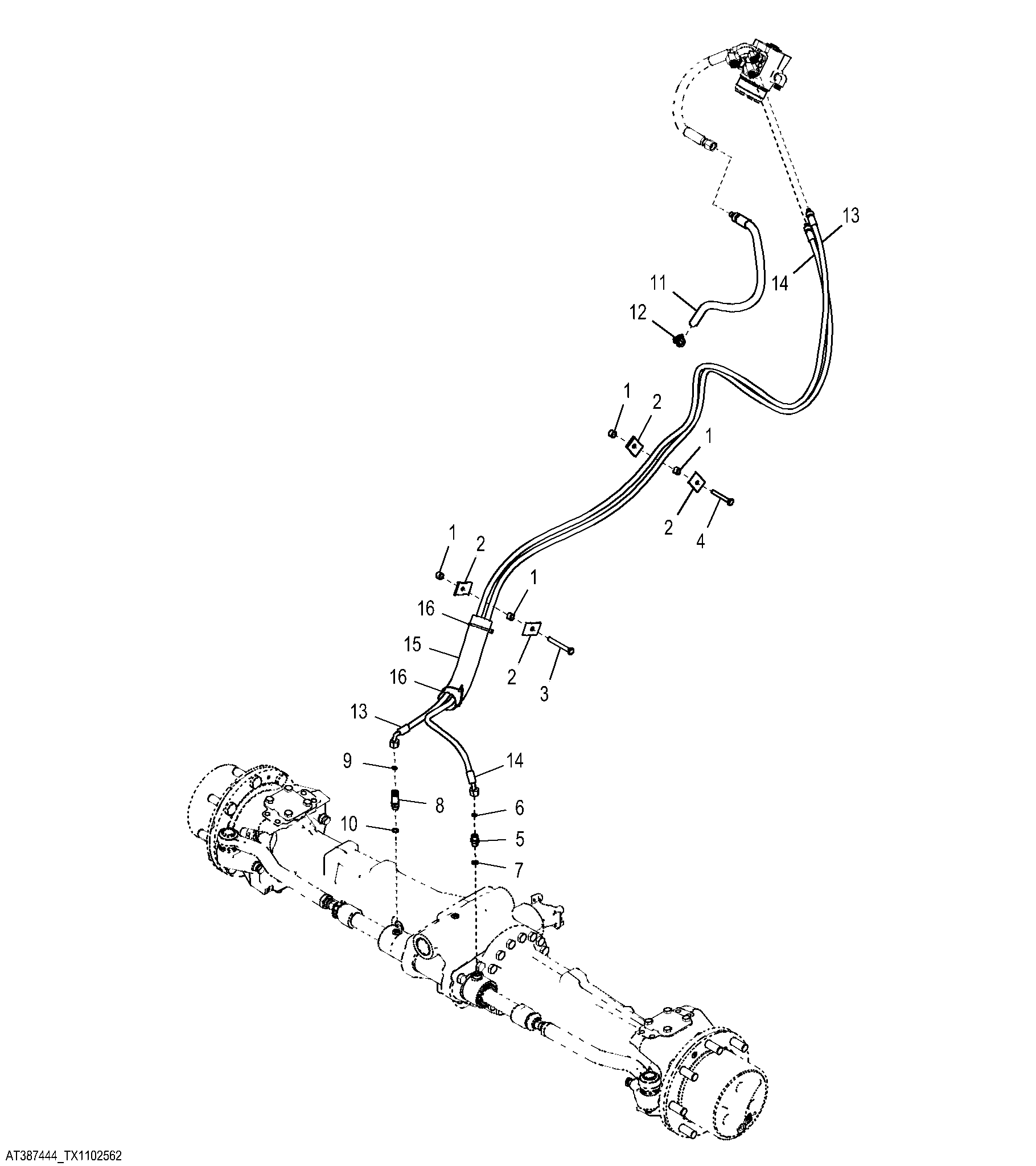

Steering Hydraulics (With Mechanical Front Wheel Drive)
