Multipurpose Bucket Kit with Reversible Cutting Edge 0.94 m³ (1.23 yd³) 2.18 m (86.00 in)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT448175	1	Multi-Purpose Bucket	Whole Goods
2	T166454	1	Cutting Edge	-
3	09H1776	7	Bolt	5/8" X 1-3/4"
4	24M7241	7	Washer	17 X 34 X 4 mm
5	14H1039	7	Nut	5/8"
6	T166455	1	Cutting Edge	-
7	T128533	2	Bushing	-
8	T166433	2	Bushing	-
9	T128533	2	Bushing	-
10	T166433	2	Bushing	-
11	T150517	1	Cutting Edge	-
12	09H1759	7	Bolt	5/8" X 2-1/4"
13	24M7241	7	Washer	17 X 34 X 4 mm
14	14H1039	7	Nut	5/8"
15	T328756	2	Pin	-
16	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
17	19H2106	4	Cap Screw	7/16" X 2-3/4"
18	K40006	4	Lock Nut	-
19	JD7844	4	Lubrication Fitting	-
20	AHC15426	2	Hydraulic Cylinder	Components On Separate Page
21	AT425236	2	Pin	-
22	19H1800	2	Cap Screw	3/8" X 1-1/2"
23	24M7239	2	Washer	10.700 X 21 X 2.500 mm
24	T54568	2	Lock Nut	-
25	T352251	2	Pin	-
26	H135156	6	Clamp	-
27	AT448019	2	Line	-
28	T77857	2	O-Ring	-
29	38H5107	1	Elbow Fitting	-
30	T77857	1	O-Ring	-
31	H121168	3	Plate	-
32	38H5036	1	Elbow Fitting	-
33	51M7042	1	O-Ring	13.300 X 2.200 mm
34	T77857	2	O-Ring	-
35	AT448076	1	Hydraulic Hose	Fabricate
36	AT448076	1	Hydraulic Hose	Fabricate
37	AT448075	1	Hydraulic Hose	Fabricate
38	AT448075	1	Hydraulic Hose	Fabricate
39	19H1906	3	Cap Screw	5/16" X 1-1/2"
40	38H5154	1	Elbow Fitting	-
41	T77613	2	O-Ring	-
42	51M7042	1	O-Ring	13.300 X 2.200 mm
43	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
44	T27022	1	Clamp	-
45	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
46	19H1800	1	Cap Screw	3/8" X 1-1/2"
47	AT448168	1	Hydraulic Hose	-
48	AT448168	1	Hydraulic Hose	-
49	R44302	1	Tie Band	-

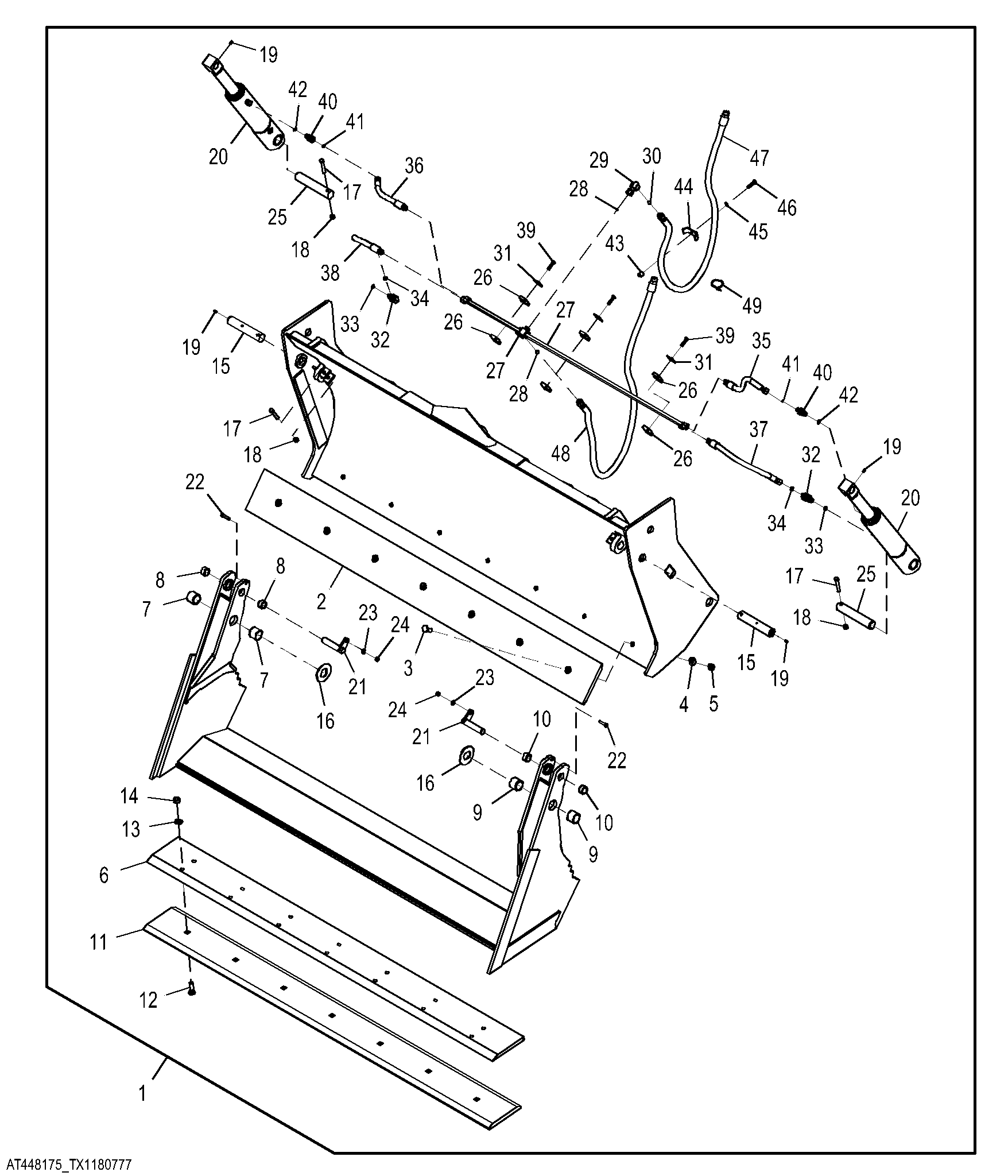

Multipurpose Bucket Kit with Reversible Cutting Edge 0.94 m³ (1.23 yd³) 2.18 m (86.00 in)
