Открытый узел

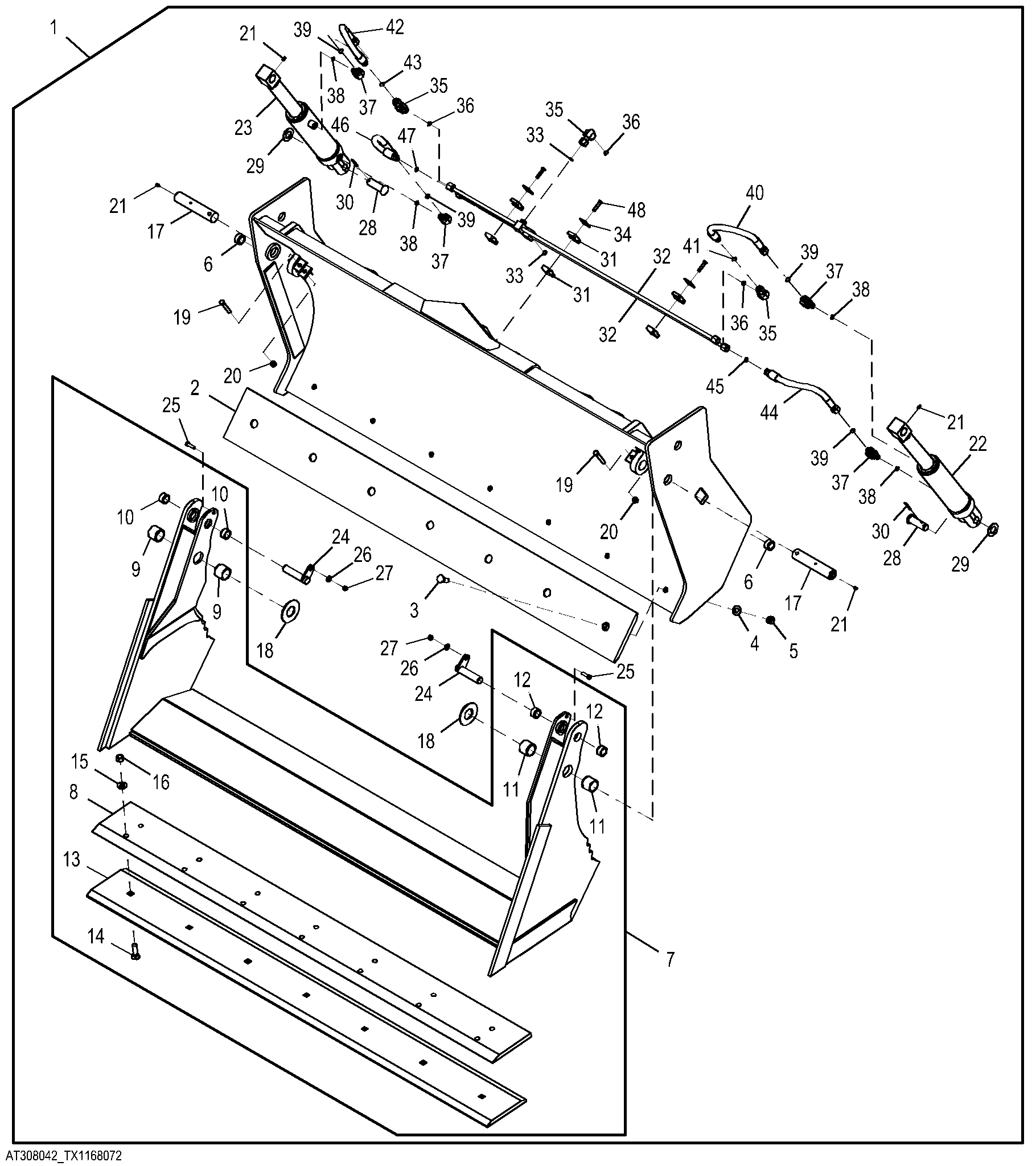

Multipurpose Bucket Kit with Reversible Cutting Edge 0.76 m (1.00 yd³) 2.08 m (82.00 in)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2633	1	Cap Screw	3/8" X 1-1/2"
1	AT308042	1	Multi-Purpose Bucket	Components On Separate Page, NLA; ORDER AT448174
1	T27022	1	Clamp	-
1	R44302	1	Tie Band	-
1	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
1	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
1	24M7106	1	Washer	10 X 18 X 2.500 mm
1	AT172386	2	Hydraulic Hose	-
2	T166418	1	Cutting Edge	202.88 cm (79.874 in)
3	09H1776	7	Bolt	5/8" X 1-3/4"
4	24M7241	7	Washer	17 X 34 X 4 mm
5	14H1039	7	Nut	5/8"
6	T166433	1	Bushing	-
7	AT186388	1	Hinge	-
8	T166419	1	Cutting Edge	208.28 cm (82.000 in)
9	T128533	2	Bushing	-
10	T166433	2	Bushing	-
11	T128533	2	Bushing	-
12	T166433	2	Bushing	-
13	T166437	1	Cutting Edge	208.28 cm (82.000 in)
14	09H1759	7	Bolt	5/8" X 2-1/4"
15	24M7241	7	Washer	17 X 34 X 4 mm
16	14H1039	7	Nut	5/8"
17	T167059	2	Pin	-
18	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
19	19H2106	2	Cap Screw	7/16" X 2-3/4"
20	K40006	2	Lock Nut	-
21	JD7844	4	Lubrication Fitting	-
22	AH210737	1	Hydraulic Cylinder	Components On Separate Page
23	AH210737	1	Hydraulic Cylinder	Components On Separate Page
24	AT190900	2	Pin	-
25	19H3239	2	Cap Screw	3/8" X 1-1/4"
26	24M7239	2	Washer	10.700 X 21 X 2.500 mm
27	T54568	2	Lock Nut	-
28	T191318	2	Pin Fastener	-
29	24H1138	2	Washer	1-1/16" X 2" X 0.134"
30	11M7030	2	Cotter Pin	5 X 40 mm
31	H135156	6	Clamp	-
32	AT189819	2	Line	Oil, NLA; ORDER AT448019
32	AT448019	2	Line	Oil
33	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
34	H121168	3	Plate	-
35	38H1095	2	Elbow Fitting	-
36	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
37	38H1314	1	Elbow Fitting	-
38	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
39	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	AT189822	1	Hydraulic Hose	Fabricate
41	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
42	AT189822	1	Hydraulic Hose	Fabricate
43	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
44	AT190702	1	Hydraulic Hose	Fabricate
45	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
46	AT190702	1	Hydraulic Hose	Fabricate
47	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
48	19H3552	3	Cap Screw	5/16" X 1-1/2"

Multipurpose Bucket Kit with Reversible Cutting Edge 0.76 m (1.00 yd³) 2.08 m (82.00 in)
