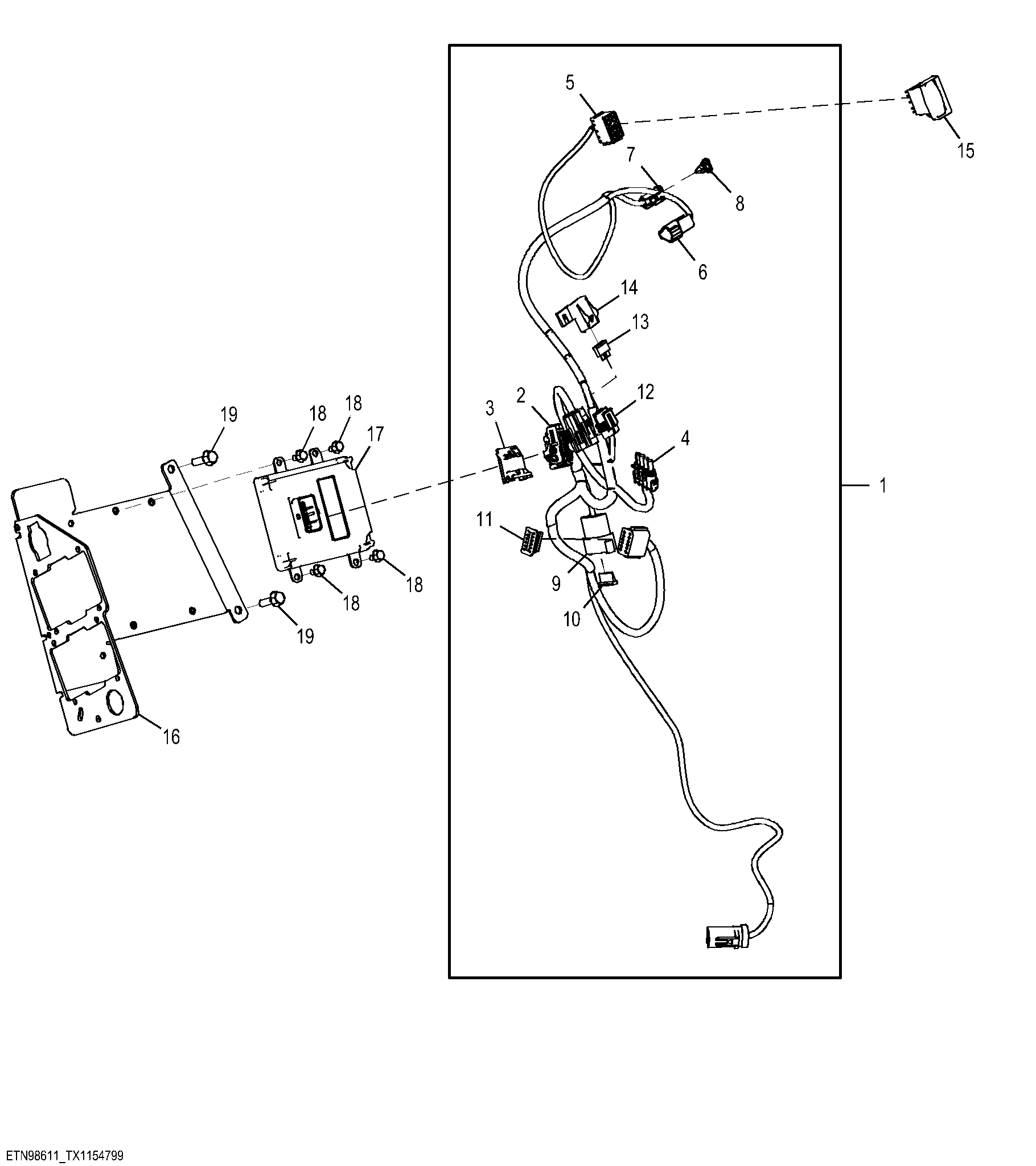

Loader Controller and Auxiliary Harness, Single Lever

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT433912	1	Software	Software Available Through John Deere Custom Performance Website
1	AT422601	1	Wiring Harness	Loader Auxiliary Harness
2	57M10614	1	Elec. Connector Housing	-
3	57M10613	1	Elec. Connector Housing	-
4	RE12365	1	Electrical Connector Assy	Option Connector
5	T210282	1	Elec. Connector Housing	Loader Auxiliary Mode Switch
6	57M8020	1	Elec. Connector Housing	-
7	57M8018	1	Electrical Connector Assy	-
8	57M8221	1	Elec.Connect Locking Device	-
9	57M8959	1	Elec. Connector Housing	Loader Grip Inline
10	57M7682	1	Elec.Connect Locking Device	-
11	57M8009	1	Elec.Connect Locking Device	Loader Control
12	57M8267	1	Elec. Connector Housing	Battery Power Fuse
13	57M7121	1	Fuse	-
14	57M8487	1	Electrical Connector Cap	-
15	AT425597	1	Toggle/Rocker Switch	Loader Auxiliary
16	AT428446	1	Bracket	-
17	AT388817	1	Electrohydraulic Controller	-
18	19M9007	4	Screw	M6 X 12
19	19M7868	2	Screw	M8 X 30

Loader Controller and Auxiliary Harness, Single Lever
