Extendable Dipperstick Plumbing with Auxiliary Hydraulics (244263 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	4	Bolt	M10 X 30
2	24M7239	22	Washer	10.700 X 21 X 2.500 mm
3	38H1002	1	Tee Fitting	-
4	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
5	38H1329	1	Adapter Fitting	-
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	T160376	8	Clamp	-
9	19M7572	2	Cap Screw	M10 X 45
10	14M7274	15	Nut	M10
11	AT326504	1	Oil Line	-
12	AT326505	1	Oil Line	-
13	T205636	1	Bracket	-
14	T205637	1	Bracket	-
15	T163702	2	Reducer	-
16	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	19M7662	6	Cap Screw	M10 X 30
19	R27175	2	Drain Plug	INCLUDES U12547
20	T162004	16	Clamp	-
21	19M8456	8	Cap Screw	M8 X 100
22	T78707	2	Nut	-
23	AT280350	1	Hydraulic Hose	Fabricate
24	T161365	1	Sleeve	-
25	T161365	1	Sleeve	-
26	AT309710	1	Hydraulic Hose	Auxiliary Return
27	AT308466	1	Hydraulic Hose	-
28	AT308466	1	Hydraulic Hose	-
29	T102934	2	Clamp	-
30	-	1	Part 30	MAKE FROM T107029 CTL, 152.40 mm (6.00 in)
31	H77698	2	Tie Band	-
32	R46919	5	Half Clamp	-
33	T159848	1	Clamp	-
34	28H3421	1	Spacer	0.493" X 0.675" X 7/16"
35	19M8637	3	Cap Screw	M10 X 40
36	T162005	4	Strap	-
37	38H1006	1	Elbow Fitting	-
38	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
39	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
40	38H1214	2	Adapter Fitting	-
41	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
42	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
43	38H1174	2	Adapter Fitting	-
44	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
45	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
46	T105773	1	Guide	-
47	AR21842	1	Clamp	-
48	AT325046	1	Oil Line	-
49	AT325047	1	Oil Line	-
50	AT325049	1	Oil Line	-
51	AT325050	1	Oil Line	-
52	AT327144	1	Bracket	-
53	AT436984	1	Hydraulic Hose	Fabricate
54	AT280344	1	Hydraulic Hose	Fabricate
55	AT382007	1	Hydraulic Hose	Fabricate
56	AT382007	1	Hydraulic Hose	Fabricate
57	AT178413	1	Hydraulic Hose	Head End
58	AT178413	1	Hydraulic Hose	Rod End
59	AT179238	1	Hydraulic Hose	Head End
60	AT179238	1	Hydraulic Hose	Rod End
61	AT170172	1	Hydraulic Hose	Rod End Fabricate
62	AT170173	1	Hydraulic Hose	Head End
63	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
64	T159954	1	Clamp	-
65	T160554	1	Clamp	-
66	T165889	4	Screw	-
67	14M7426	6	Lock Nut	M8
68	T161342	2	Plate	-
69	24M7238	2	Washer	8.700 X 17 X 2 mm
70	19M7932	2	Cap Screw	M8 X 16

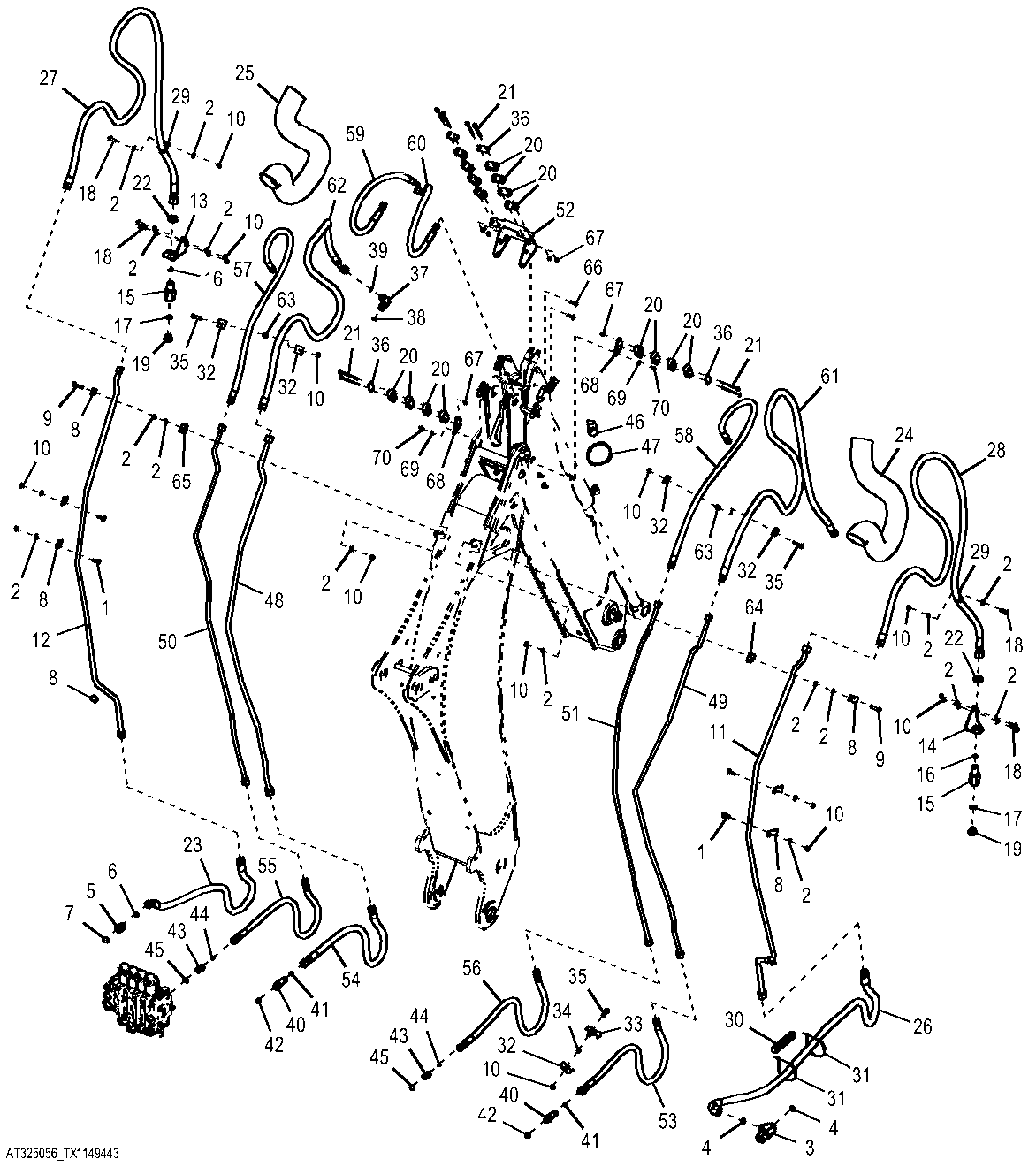

Extendable Dipperstick Plumbing with Auxiliary Hydraulics (244263 - )
