Extendable Dipperstick Plumbing with Auxiliary Hydraulics ( - 244262)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	4	Bolt	M10 X 30
2	24M7239	22	Washer	10.700 X 21 X 2.500 mm
3	38H1002	1	Tee Fitting	-
4	T76938	2	O-Ring	-
5	38H1329	1	Adapter Fitting	-
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	T160376	8	Clamp	-
9	19M7572	2	Cap Screw	M10 X 45
10	14M7274	15	Nut	M10
11	AT326504	1	Oil Line	-
12	AT326505	1	Oil Line	-
13	T205636	1	Bracket	-
14	T205637	1	Bracket	-
15	T163702	1	Reducer	-
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	19M7662	6	Cap Screw	M10 X 30
19	R27175	2	Drain Plug	INCLUDES U12547
20	T162004	16	Clamp	-
21	19M8456	8	Cap Screw	M8 X 100
22	T78707	2	Nut	-
23	AT280350	1	Hydraulic Hose	1" X 1206 mm (47-1/2") X 30.1752", Fabricate
24	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	T161365	1	Sleeve	-
26	T161365	1	Sleeve	-
27	AT309710	1	Hydraulic Hose	1" X 2057 mm (81") X 13/16"
28	AT308466	1	Hydraulic Hose	30.1752" X 3322 mm (130-3/4") X 30.1752"
29	AT308466	1	Hydraulic Hose	30.1752" X 3322 mm (130-3/4") X 30.1752"
30	T102934	2	Clamp	-
31	-	1	Part 31	MAKE FROM T208566, CTL 152.40 mm (6.00 in)
32	H77698	2	Tie Band	-
33	R46919	5	Half Clamp	-
34	T159848	1	Clamp	-
35	28H3421	1	Spacer	0.493" X 0.675" X 7/16"
36	19M8637	3	Cap Screw	M10 X 40
37	T162005	4	Strap	-
38	38H1006	1	Elbow Fitting	-
39	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
40	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
41	38H1214	1	Adapter Fitting	-
42	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
43	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
44	38H1174	1	Adapter Fitting	-
45	T77857	1	O-Ring	-
46	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
47	T105773	1	Guide	-
48	TY22474	1	Clamp	-
49	AT325046	1	Oil Line	-
50	AT325047	1	Oil Line	-
51	AT325049	1	Oil Line	-
52	AT325050	1	Oil Line	-
53	AT327144	1	Bracket	-
54	AT280343	1	Hydraulic Hose	1" X 1080 mm (42-1/2") X 1", Fabricate
55	AT280344	1	Hydraulic Hose	1" X 1080 mm (42-1/2") X 30.1752", Fabricate
56	AT382007	1	Hydraulic Hose	13/16" X 1123 mm (44-1/4") X 1", Fabricate
57	AT382007	1	Hydraulic Hose	13/16" X 1123 mm (44-1/4") X 1", Fabricate
58	AT178413	1	Hydraulic Hose	13/16" X 1199 mm (47-1/4") X 1"
59	AT178413	1	Hydraulic Hose	13/16" X 1199 mm (47-1/4") X 1"
60	AT179238	1	Hydraulic Hose	13/16" X 459 mm (18") X 13/16"
61	AT179238	1	Hydraulic Hose	13/16" X 459 mm (18") X 13/16"
62	AT170172	1	Hydraulic Hose	1" X 2892 mm (113-3/4") X 1", Rod End Fabricate
63	AT170173	1	Hydraulic Hose	1" X 1999 mm (78-3/4") X 30.1752", Head End
64	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
65	T159954	1	Clamp	-
66	T160554	1	Clamp	-
67	T165889	4	Screw	M10 X 30
68	14M7426	6	Lock Nut	M8
69	T202050	2	Angle	-
70	19M7550	2	Cap Screw	M10 X 35
71	T161342	2	Plate	-
72	24M7238	2	Washer	8.700 X 17 X 2 mm
73	19M7932	2	Cap Screw	M8 X 16

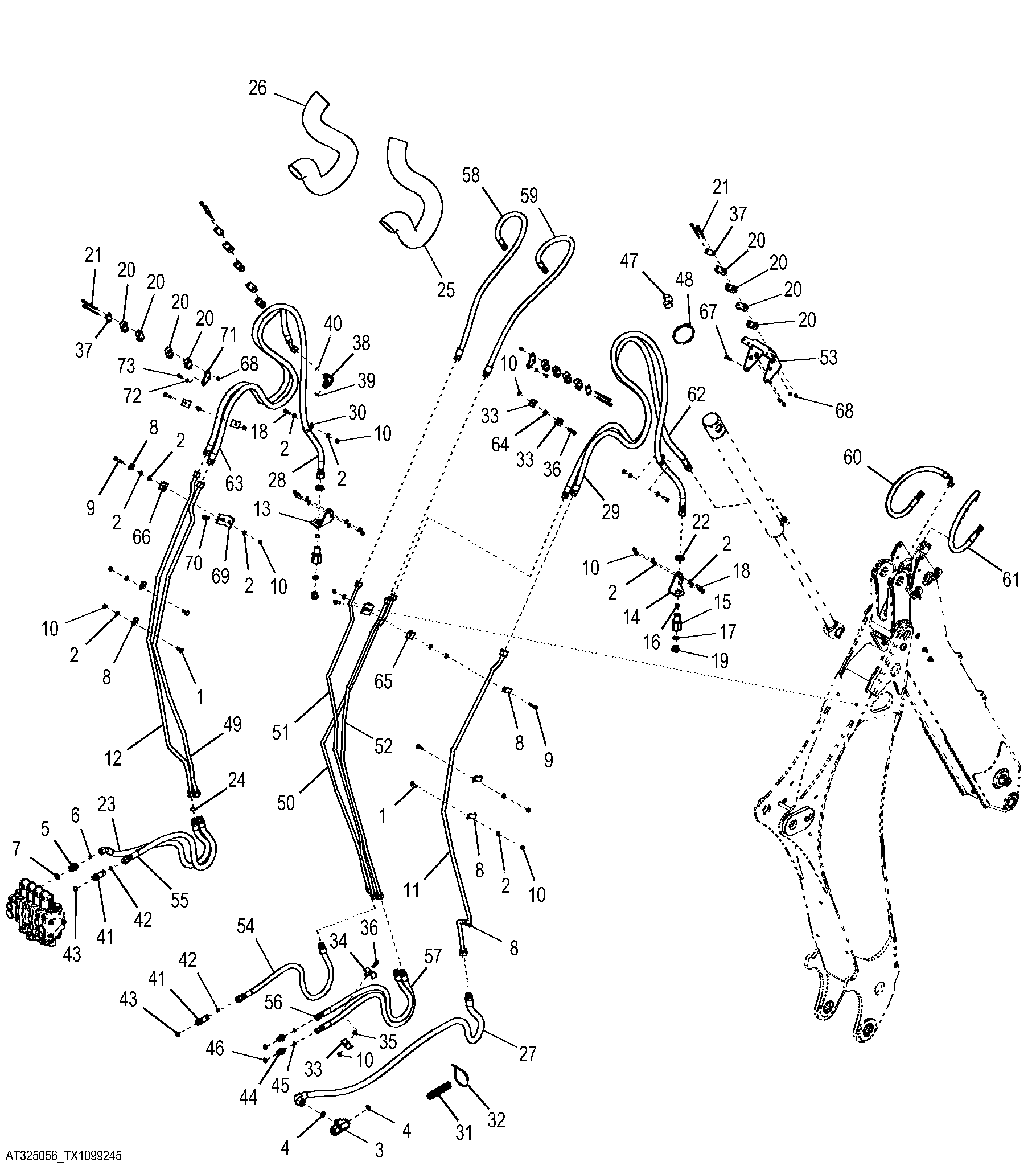

Extendable Dipperstick Plumbing with Auxiliary Hydraulics ( - 244262)
