Dipperstick Plumbing with Auxiliary Hydraulics (244263 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	4	Bolt	M10 X 30
2	T126052	2	Spacer	-
3	38H1002	1	Tee Fitting	-
4	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
5	38H1329	1	Adapter Fitting	-
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	AT326504	1	Oil Line	-
9	T160376	9	Clamp	-
10	24M7239	6	Washer	10.700 X 21 X 2.500 mm
11	19M7572	2	Cap Screw	M10 X 45
12	14M7274	7	Nut	M10
13	T162003	2	Clamp	-
14	T162004	6	Clamp	-
15	19M7873	4	Screw	M8 X 110
16	T205636	1	Bracket	-
17	AT326505	1	Oil Line	-
18	T163702	2	Reducer	-
19	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	T205637	1	Bracket	-
21	T78707	2	Nut	-
22	AT280350	1	Hydraulic Hose	Fabricate
23	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	24M7238	4	Washer	8.700 X 17 X 2 mm
25	AT309710	1	Hydraulic Hose	Auxiliary Return
26	AT310257	1	Hydraulic Hose	-
26	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
27	AT310257	1	Hydraulic Hose	-
27	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
28	-	1	Part 30	ORDER T107029 CTL, 152.40 mm (6.00 in)
29	H77698	2	Tie Band	-
30	R46919	1	Half Clamp	-
31	28H3421	1	Spacer	0.493" X 0.675" X 7/16"
32	T159848	1	Clamp	-
33	19M8637	1	Cap Screw	M10 X 40
34	U12288	1	Clamp	-
35	T162005	2	Strap	-
36	38H1006	1	Elbow Fitting	-
37	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
38	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
39	38H1214	2	Adapter Fitting	-
40	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
41	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
42	T105773	1	Guide	-
43	AT325047	1	Oil Line	-
44	AT325046	1	Oil Line	-
45	AT280344	1	Hydraulic Hose	Fabricate
45	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
46	AT436984	1	Hydraulic Hose	Fabricate
46	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
47	AT174393	1	Hydraulic Hose	Head End
47	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
48	AT174394	1	Hydraulic Hose	Rod End
48	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
49	AR21842	1	Clamp	-
50	14M7298	4	Flange Nut	M8
51	R27175	2	Drain Plug	INCLUDES U12547
52	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")

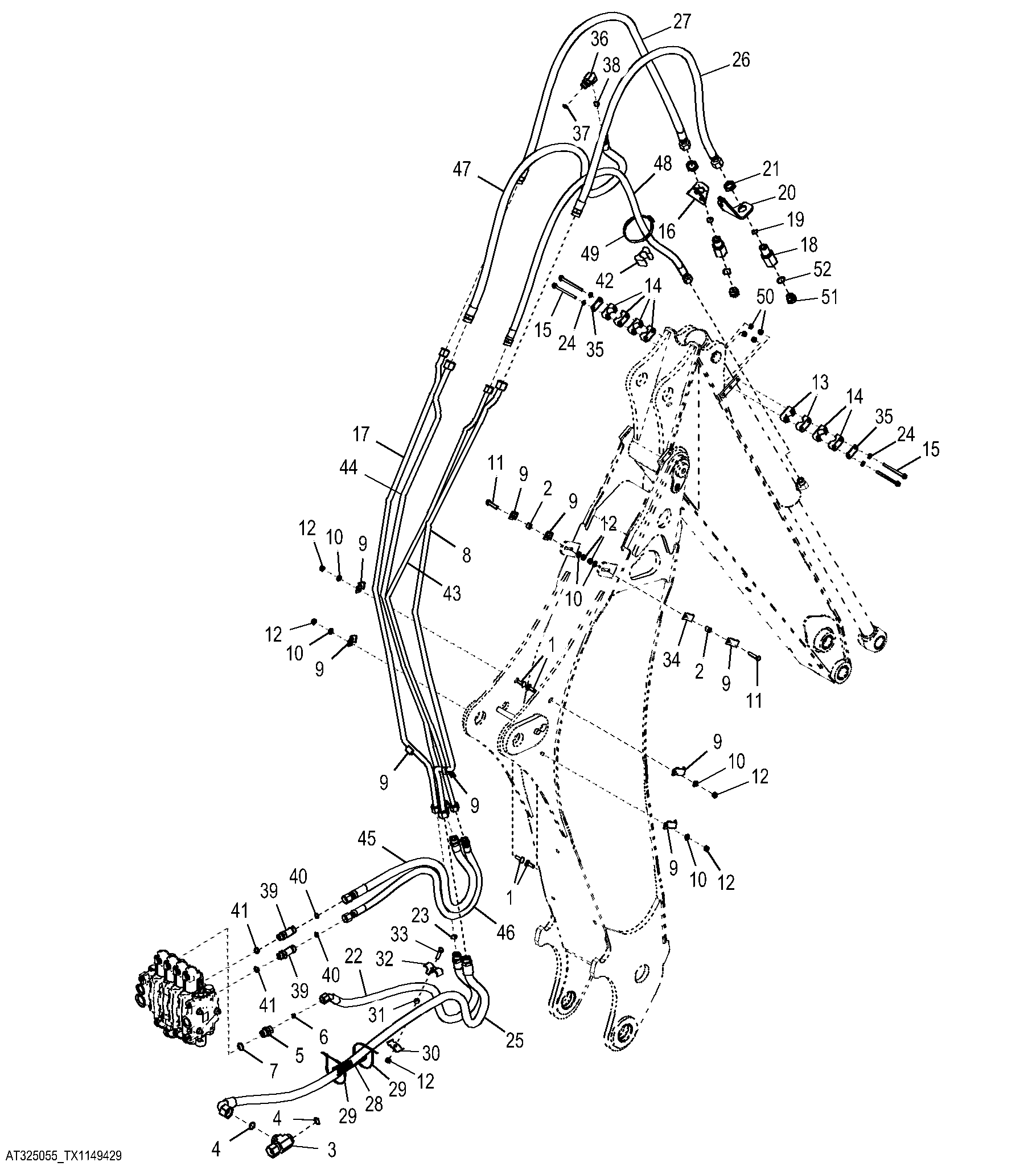

Dipperstick Plumbing with Auxiliary Hydraulics (244263 - )
