Открытый узел

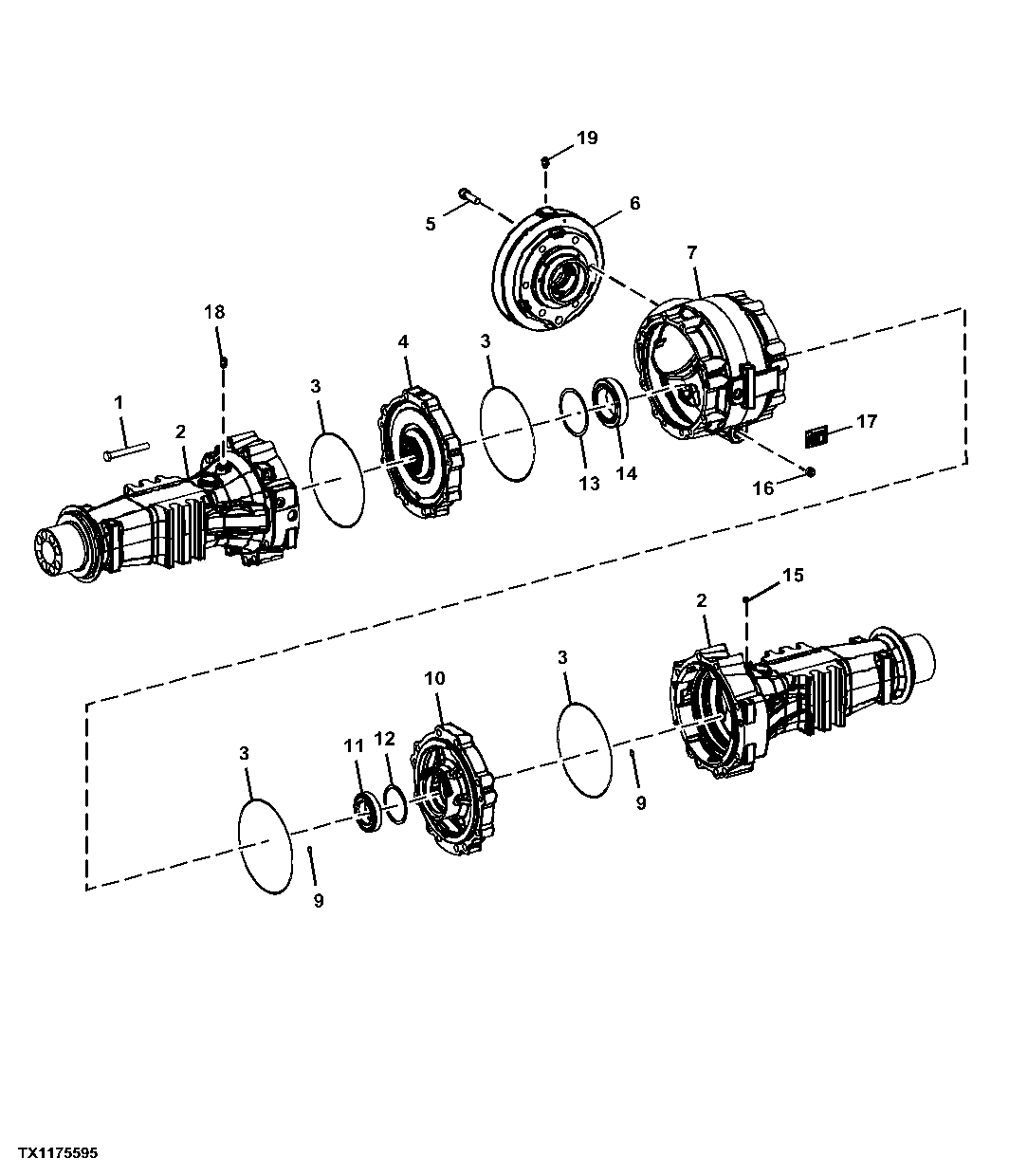

Differential and Rear Axle Housings (270516 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T228913	20	Screw	-
2	T353718	2	Housing	NLA, ORDER R77175, RE190805 AND T393323
2	R77175	1	Cover	-
2	RE190805	1	Diagnostic Coupling	-
2	T393323	1	Housing	-
3	T218785	4	Seal	-
4	T381418	1	Housing	SUB FOR T258089
5	T228939	6	Screw	-
6	T353726	1	Housing	-
7	T228957	1	Housing	-
9	T159373	8	O-Ring	-
10	T381419	1	Housing	SUB FOR T353720
11	JD8161	1	Bearing Cone	RH
11	JD10229	1	Bearing Cup	RH
12	T228923	1	Shim	TK = 1.55 mm
12	T228914	1	Shim	TK = 2.00 mm
12	T228915	1	Shim	TK = 1.95 mm
12	T228916	1	Shim	TK = 1.90 mm
12	T228917	1	Shim	TK = 1.85 mm
12	T228918	1	Shim	TK = 1.80 mm
12	T228919	1	Shim	TK = 1.75 mm
12	T228920	1	Shim	TK = 1.70 mm
12	T228921	1	Shim	TK = 1.65 mm
12	T228922	1	Shim	TK = 1.60 mm
12	T228924	1	Shim	TK = 1.50 mm
12	T228926	1	Shim	TK = 1.40 mm
12	T228935	1	Shim	TK = 0.90 mm
12	T177394	1	Solid Shim	TK = 0.95 mm
12	T228934	1	Shim	TK = 1.00 mm
12	T228933	1	Shim	TK = 1.05 mm
12	T228932	1	Shim	TK = 1.10 mm
12	T228931	1	Shim	TK = 1.15 mm
12	T228930	1	Shim	TK = 1.20 mm
12	T228929	1	Shim	TK = 1.25 mm
12	T228928	1	Shim	TK = 1.30 mm
12	T228927	1	Shim	TK = 1.35 mm
12	T228925	1	Shim	TK = 1.45 mm
13	TTZF160532	1	Shim	TK = 2.20 mm
13	T183502	1	Solid Shim	TK = 2.25 mm
13	T183500	1	Solid Shim	TK = 2.15 mm
13	TTZF160534	1	Shim	TK = 2.30 mm
13	TTZF160535	1	Shim	TK = 2.35 mm
13	T183505	1	Solid Shim	TK = 2.40 mm
13	T183506	1	Solid Shim	TK = 2.45 mm
13	T183507	1	Solid Shim	TK = 2.50 mm
13	T159454	1	Shim	TK = 2.60 mm
13	T159455	1	Shim	TK = 2.70 mm
13	T159457	1	Shim	TK = 2.80 mm
13	T159458	1	Shim	TK = 2.90 mm
13	T159459	1	Shim	TK = 3.00 mm
13	T159460	1	Shim	TK = 3.10 mm
13	T159461	1	Shim	TK = 3.20 mm
13	T159462	1	Shim	TK = 3.30 mm
13	T159463	1	Shim	TK = 3.40 mm
13	T159443	1	Shim	TK = 0.20 mm
13	TTZF160529	1	Shim	TK = 2.05 mm
13	T159444	1	Shim	TK = 0.10 mm
13	T159445	1	Shim	TK = 0.15 mm
13	T159440	1	Shim	TK = 0.30 mm
13	T159441	1	Shim	TK = 0.50 mm
13	T228936	1	Shim	TK = 0.75 mm
13	T159442	1	Shim	TK = 1.00 mm
13	T159446	1	Shim	TK = 1.10 mm
13	T159447	1	Shim	TK = 1.20 mm
13	T159448	1	Shim	TK = 1.30 mm
13	T159449	1	Shim	TK = 1.40 mm
13	T159450	1	Shim	TK = 1.50 mm
13	T159451	1	Shim	TK = 1.60 mm
13	T159452	1	Shim	TK = 1.70 mm
13	T159453	1	Shim	TK = 1.80 mm
13	TTZF160528	1	Shim	TK = 2.00 mm
13	TTZF160530	1	Shim	TK = 2.10 mm
14	AT179504	1	Tapered Roller Bearing	Cone Cup LH, AND
15	T84081	2	Screw	ORDER 15M7033
16	T159565	2	Plug	-
17	-	1	Part 76	NLA
17	25M7021	4	Groove Pin	3 X 5 mm
18	T162517	2	Brake	Bleeder Fitting
19	AL32877	1	Vent	-

Differential and Rear Axle Housings (270516 - )
