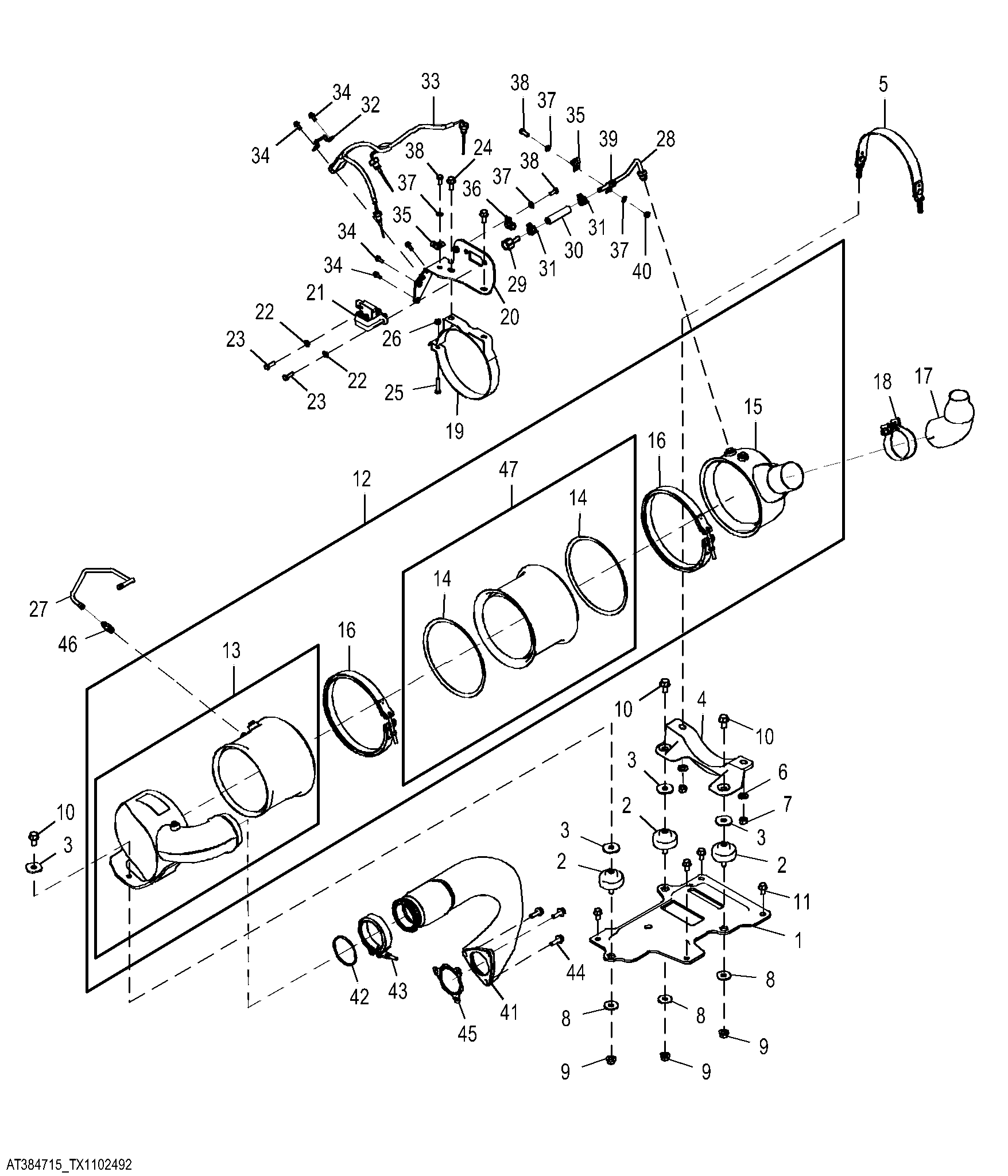

Diesel Particulate Filter Installation

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T265104	1	Mounting Parts	-
2	AT410193	3	Isolator	-
3	24M7102	4	Washer	13.500 X 44 X 4 mm
4	T277898	1	Bracket	-
5	AT384790	1	Strap	-
6	24M7544	2	Washer	13 X 25 X 3 mm
7	14M7718	2	Lock Nut	M12
8	24M7180	3	Washer	13 X 37 X 3 mm
9	14M7299	3	Flange Nut	M12
10	19M7788	3	Screw	M12 X 25
11	19M7784	4	Screw	M10 X 20
12	-	1	Part 12	Order Individual Parts for Service
13	RE547745	1	Diesel Oxidation Catalyst	-
14	R532139	2	Gasket	-
15	RE547748	1	Exhaust Pipe	-
16	RE545865	2	Clamp	-
17	AT410211	1	Muffler Extension	-
18	AT374779	1	Clamp	-
19	AT387090	1	Clamp	-
20	AT440611	1	Bracket	SUB FOR AT436488 AND AT413658
21	RE544911	1	Sensor Kit	Exhaust Filter Pressure Sensor
22	24M7238	2	Washer	8.700 X 17 X 2 mm
23	19M7407	2	Cap Screw	M8 X 25
24	19M7785	2	Screw	M10 X 25
25	19M7922	1	Cap Screw	M8 X 40
26	14M7707	1	Lock Nut	M8
27	AT413701	1	Air Flow Tube	-
28	AT443783	1	Air Flow Tube	SUB FOR AT413700 ALSO ORDER T351998,(2) R133839, AND T312887 CTL, 80.00 mm (3.150 in)
29	T351998	1	Hose Fitting	-
30	-	1	Part 30	MAKE FROM T312887 CTL, 80.00 mm (3.150 in)
31	R133839	2	Clamp	-
32	RE542006	1	Strap	-
33	RE546926	1	Temperature Sensor	Exhaust Gas
34	19M7775	5	Screw	M6 X 16
35	T269639	2	Clamp	-
36	T269640	1	Clamp	-
37	24M7238	4	Washer	8.700 X 17 X 2 mm
38	19M7881	3	Screw	M8 X 20
39	T269643	1	Clamp	SUB FOR T269640
40	14M7273	1	Nut	M8
41	AT373457	1	Exhaust Pipe	-
42	R528112	1	Seal	-
43	RE289839	1	Clamp	-
44	R528364	3	Cap Screw	-
45	R531297	1	Gasket	-
46	R27095	1	Fitting	-
47	RE568454	1	Diesel Particulate Filter	-
