№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT375617	1	Wiring Harness	-
2	T143596	1	Grommet	-
3	57M9555	2	Clip	-
4	57M7476	1	Elec. Connector Housing	X26, Roof Harness Connector
4	57M9555	6	Clip	-
5	R78053	2	Electrical Connector Assy	X60, Side Console Option Connector
5	R78061	2	Elec. Connector Terminal	-
5	R78063	2	Elec. Connector Seal	-
6	RE12363	1	Electrical Connector Assy	-
7	57M7752	1	Elec. Connector Housing	X21, Operator Station Transmission Inline
7	R78069	9	Elec. Connector Cavity Plug	-
7	57M8264	6	Elec. Connector Terminal	-
8	57M8264	8	Elec. Connector Terminal	-
8	R78069	8	Elec. Connector Cavity Plug	-
8	57M7750	1	Elec. Connector Housing	X20, Operator Station Engine Inline
9	57M8484	1	Elec. Connector Housing	J1, Monitor
9	57M8300	15	Elec. Connector Terminal	-
9	57M9446	1	Elec. Connector Seal	-
9	57M9884	15	Elec. Connector Cable Seal	-
10	57M7255	1	Elec. Connector Housing	B21, Hand Throttle
10	57M9920	3	Elec. Connector Terminal	-
10	57M9910	3	Elec. Connector Cable Seal	-
11	57M7290	1	Elec. Connector Accessory	-
12	57M9883	1	Elec. Connector Cable Seal	-
12	57M7328	1	Elec. Connector Housing	S10, Diffrential Lock Switch
12	57M9910	1	Elec. Connector Cable Seal	-
13	LVA15613	1	Electrical Connector Assy	X16, Service Connector
13	R78069	4	Elec. Connector Cavity Plug	-
14	57M9712	1	Elec. Connector Accessory	-
15	57M9207	1	Elec. Connector Housing	B20, Engine Speed Control Pedal
15	57M9572	3	Elec. Connector Terminal	-
15	57M7741	3	Elec. Connector Terminal	-
16	57M8231	3	Electrical Connector Assy	-
17	57M9919	1	Elec. Connector Accessory	-
18	57M11184	2	Elec. Connector Seal	-
18	57M10210	2	Elec. Connector Terminal	-
18	57M10213	2	Elec. Connector Cable Seal	-
18	57M10208	1	Elec. Connector Housing	K10, Ignition Relay
19	57M9836	1	Elec. Connector Housing	J3, Monitor
19	57M8300	12	Elec. Connector Terminal	-
19	57M9884	12	Elec. Connector Cable Seal	-
20	57M7937	1	Electrical Connector Assy	K20, Accesory Relay
20	57M8571	2	Elec. Connector Terminal	-
21	R77479	1	Elec. Connector Terminal	K09, Flasher Relay
21	57M9200	2	Elec. Connector Terminal	-
22	57M8018	1	Electrical Connector Assy	R05, CAN Terminator
22	57M8263	3	Elec. Connector Terminal	-
23	57M10942	2	Diode	-
24	AT103399	2	Diode	-
25	57M8131	1	Electronic Terminator	-
26	57M7724	1	Electrical Connector Assy	-
27	57M8009	1	Elec.Connect Locking Device	-
28	57M8221	1	Elec.Connect Locking Device	-
29	R78055	1	Electrical Connector Assy	-
30	57M9786	1	Elec. Connector Housing	B09, Seat Position Sensor
30	57M10321	6	Elec. Connector Terminal	-
31	T210282	8	Elec. Connector Housing	S30, Turn Signal Switch
31	57M7511	5	Elec. Connector Terminal	-
31	57M7880	8	Elec. Connector Terminal	-
32	RE12365	1	Electrical Connector Assy	-
33	AT434626	1	Relay	-
34	57M9705	1	Electrical Connector Assy	-
35	57M10823	1	Clamp	-
36	57M9452	2	Elec. Connector Housing	X38, Negative Left Power Port
36	57M9454	1	Elec. Connector Terminal	-
37	57M9940	1	Elec. Connector Accessory	-
38	57M9452	1	Elec. Connector Housing	X39, Negative Right Power Port
38	57M9454	1	Elec. Connector Terminal	-
39	T210282	1	Elec. Connector Housing	S13, Front Wiper Switch
39	57M7511	6	Elec. Connector Terminal	-
40	57M7511	2	Elec. Connector Terminal	-
40	T210282	1	Elec. Connector Housing	S11, MFWD Switch
41	T210282	1	Elec. Connector Housing	S25, Front Work Lights Switch
41	57M7429	3	Elec. Connector Terminal	-
41	57M7511	1	Elec. Connector Terminal	-
42	T210282	1	Elec. Connector Housing	S24, Rear Work Lights Switch
42	Z70804	1	Elec. Connector Terminal	-
42	57M7512	3	Elec. Connector Terminal	-
42	57M7521	2	Elec. Connector Terminal	-
42	57M7429	1	Elec. Connector Terminal	-
43	57M7511	2	Elec. Connector Terminal	-
43	57M7512	2	Elec. Connector Terminal	-
43	57M7429	1	Elec. Connector Terminal	-
43	T210282	1	Elec. Connector Housing	S28, Docking Light Switch
44	T210282	1	Elec. Connector Housing	S20, Rear Wiper Control Switch
44	57M7511	5	Elec. Connector Terminal	-
44	57M7880	2	Elec. Connector Terminal	-
45	T210282	1	Elec. Connector Housing	S15, Front Washer Switch
45	57M7511	2	Elec. Connector Terminal	-
46	57M9704	1	Electrical Connector Assy	X45, Air Seat Power
46	57M8304	2	Elec. Connector Terminal	-
46	57M8324	2	Elec. Connector Terminal	-
47	57M9835	1	Elec. Connector Housing	J2, Monitor
47	57M9884	14	Elec. Connector Cable Seal	-
47	57M8300	14	Elec. Connector Terminal	-

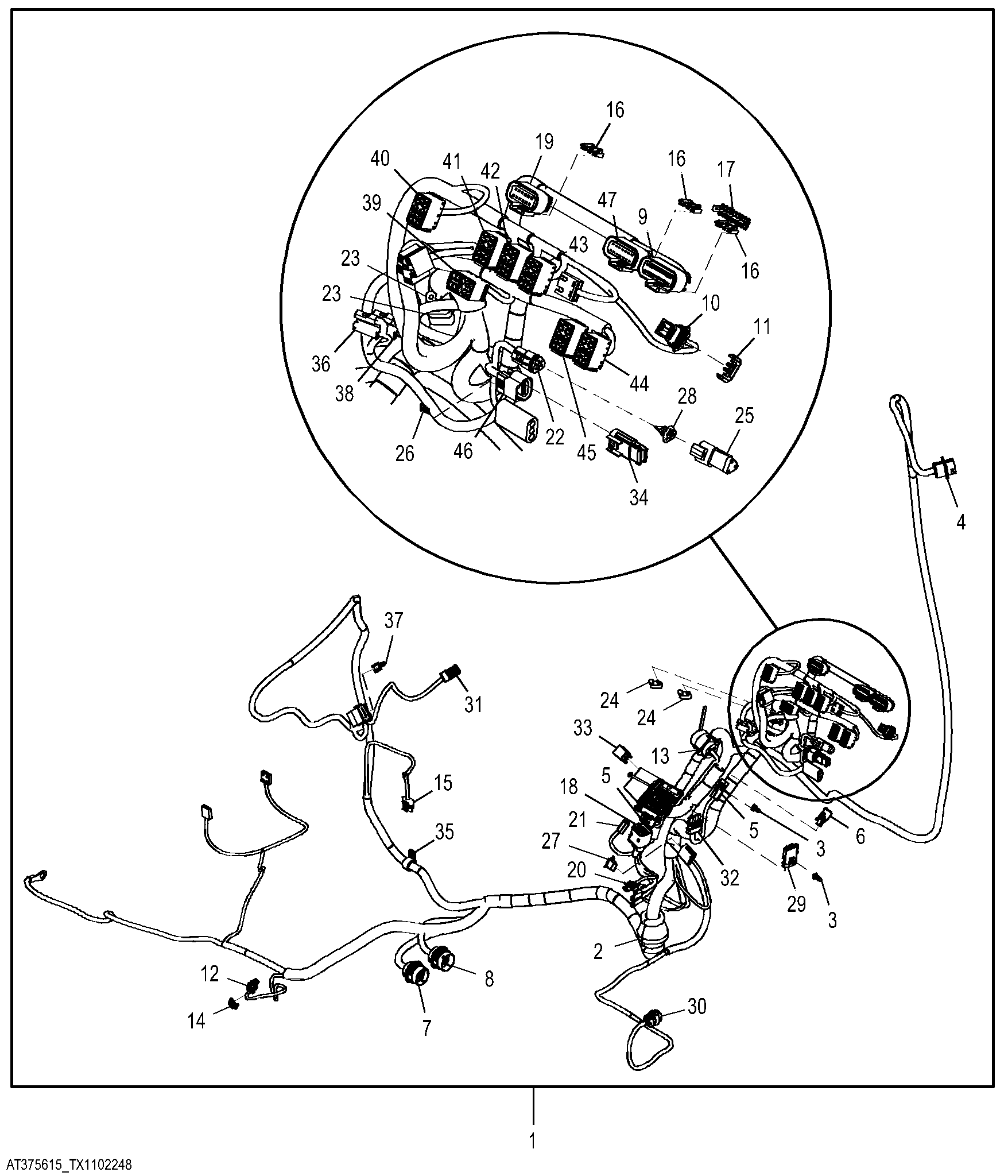

Canopy Wiring Harness Connectors
