Открытый узел

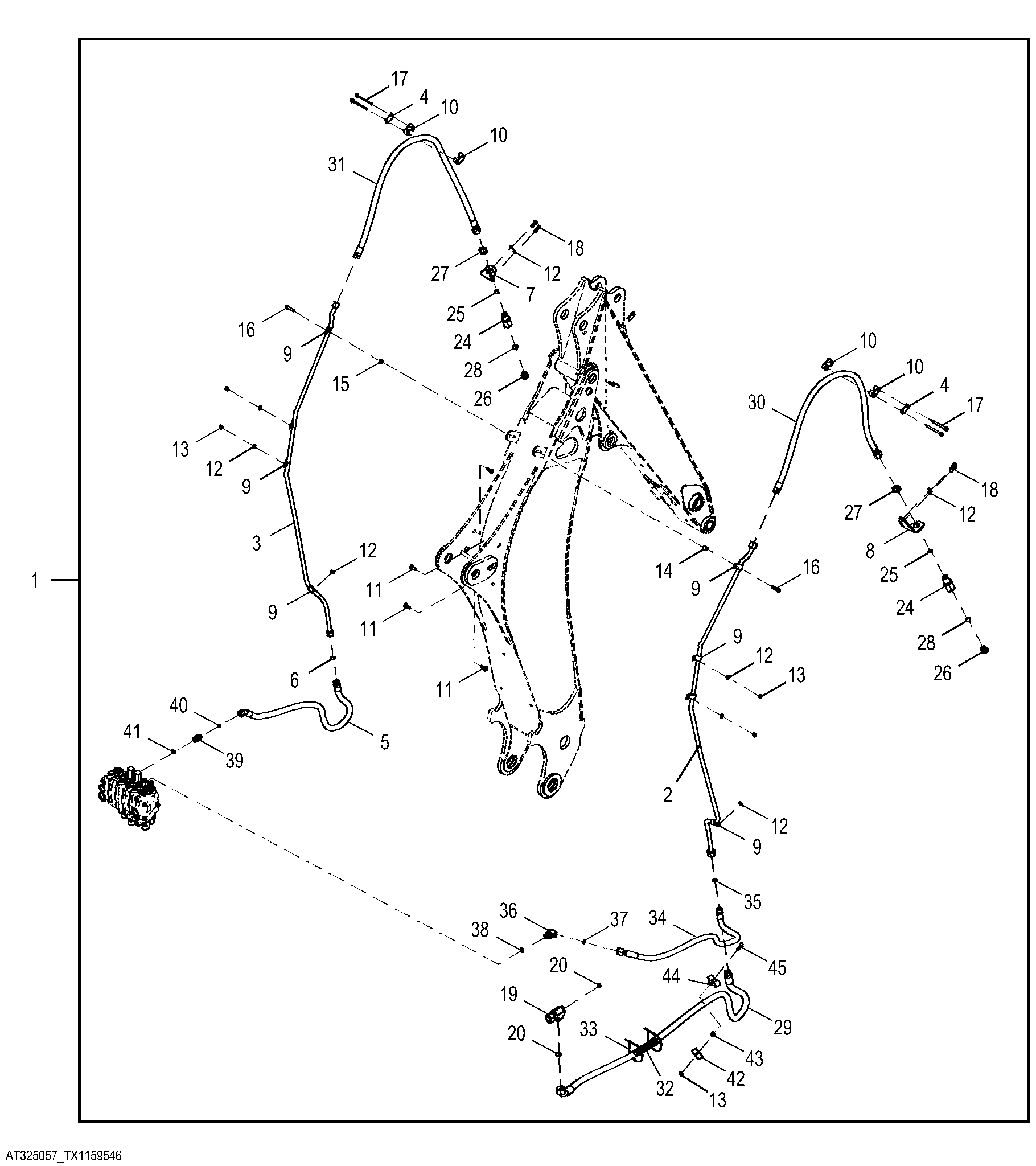

Auxiliary Equipment Hydraulics Standard Dipperstick Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325057	1	Control Kit	Auxiliary Plumbing WHOLE GOODS
2	AT326504	1	Oil Line	Oil Auxiliary Plumbing, ORDER AT433197
2	AT433197	1	Oil Line	Oil Auxiliary Plumbing
3	AT326505	1	Oil Line	Oil Auxiliary Plumbing, ORDER AT433191
3	AT433191	1	Oil Line	Oil Auxiliary Plumbing
4	T162005	2	Strap	-
5	AT280350	1	Hydraulic Hose	To Manual Hydraulic Valve Fabricate, INCLUDES T77858
6	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
7	T205636	1	Bracket	-
8	T205637	1	Bracket	-
9	T160376	8	Clamp	-
10	T162004	4	Clamp	-
11	03M7192	4	Bolt	M10 X 30
12	24M7239	10	Washer	10.700 X 21 X 2.500 mm
13	14M7274	5	Nut	M10
14	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
15	T126052	1	Spacer	-
16	19M7572	2	Cap Screw	M10 X 45
17	19M7873	4	Screw	M8 X 110
18	19M7662	4	Cap Screw	M10 X 30
19	38H1002	1	Tee Fitting	-
20	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
21	38H1329	1	Adapter Fitting	-
22	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
23	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
24	T163702	2	Reducer	-
25	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
26	64H1007	2	Drain Plug	SUB FOR R27175
27	T78707	2	Nut	-
28	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
29	AT309710	1	Hydraulic Hose	Hydraulic Auxiliary Return
30	AT310257	1	Hydraulic Hose	Auxiliary Standard
31	AT310257	1	Hydraulic Hose	Auxiliary Standard
32	-	1	Part 34	MAKE FROM T107029, CTL 154 mm (6.04 in)
33	H77698	2	Tie Band	-
34	AT280345	1	Hydraulic Hose	30.1752" X 1321 mm (52") X 30.1752", To Manual Hydraulic Valve Fabricate, INCLUDES T77858
35	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
36	38H1528	1	Elbow Fitting	-
37	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
38	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
39	38H1162	1	Adapter Fitting	-
40	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
41	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
42	R46919	1	Half Clamp	-
43	28H3421	1	Spacer	0.493" X 0.675" X 7/16"
44	T159848	1	Clamp	-
45	19M8637	1	Cap Screw	M10 X 40

Auxiliary Equipment Hydraulics Standard Dipperstick Kit

Нет текстового описания
