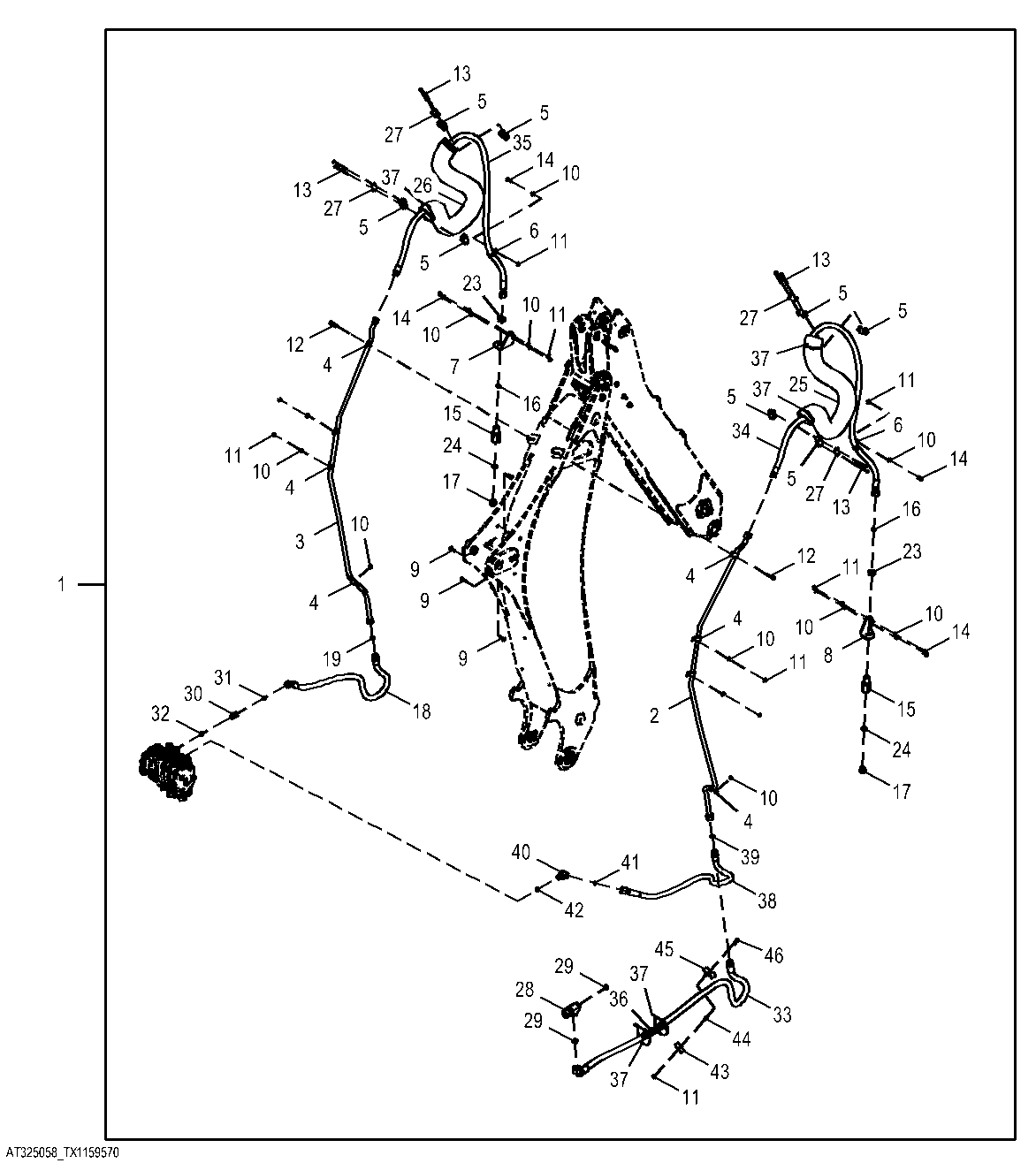

Auxiliary Equipment Hydraulics Extendable Dipperstick Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325058	1	Hydraulic Equipment	Auxiliary Plumbing WHOLE GOODS
2	AT326504	1	Oil Line	Oil Auxiliary Plumbing, ORDER AT433197
2	AT433197	1	Oil Line	Oil Auxiliary Plumbing
3	AT326505	1	Oil Line	Oil Auxiliary Plumbing, ORDER AT433191
3	AT433191	1	Oil Line	Oil Auxiliary Plumbing
4	T160376	8	Clamp	-
5	T162004	8	Clamp	-
6	T102934	2	Clamp	-
7	T205636	1	Bracket	-
8	T205637	1	Bracket	-
9	03M7192	4	Bolt	M10 X 30
10	24M7239	16	Washer	10.700 X 21 X 2.500 mm
11	14M7274	11	Nut	M10
12	19M7572	2	Cap Screw	M10 X 45
13	19M8456	8	Cap Screw	M8 X 100
14	19M7662	6	Cap Screw	M10 X 30
15	T163702	2	Reducer	-
16	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	64H1007	2	Drain Plug	SUB FOR R27175
18	AT280350	1	Hydraulic Hose	To Manual Hydraulic Valve Fabricate, INCLUDES T77858
19	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	38H1329	1	Adapter Fitting	-
21	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
22	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
23	T78707	2	Nut	-
24	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
25	T161365	1	Sleeve	-
26	T161365	1	Sleeve	-
27	T162005	4	Strap	-
28	38H1002	1	Tee Fitting	To Filter Tee
29	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
30	38H1162	2	Adapter Fitting	-
31	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
32	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
33	AT309710	1	Hydraulic Hose	Hydraulic Auxiliary Return
34	AT308466	1	Hydraulic Hose	Auxiliary Extended, INCLUDES T77858
35	AT308466	1	Hydraulic Hose	Auxiliary Extended, INCLUDES T77858
36	-	1	Part 38	MAKE FROM T107029, CTL 154 mm (6.04 in)
37	H77698	6	Tie Band	-
38	AT280345	1	Hydraulic Hose	To Manual Hydraulic Valve Fabricate, INCLUDES T77858
39	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
40	38H1528	1	Elbow Fitting	-
41	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
42	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
43	R46919	1	Half Clamp	-
44	28H3421	1	Spacer	0.493" X 0.675" X 7/16"
45	T159848	1	Clamp	-
46	19M8637	1	Cap Screw	M10 X 40
