Air Suspension Seat, Cloth

Нет текстового описания

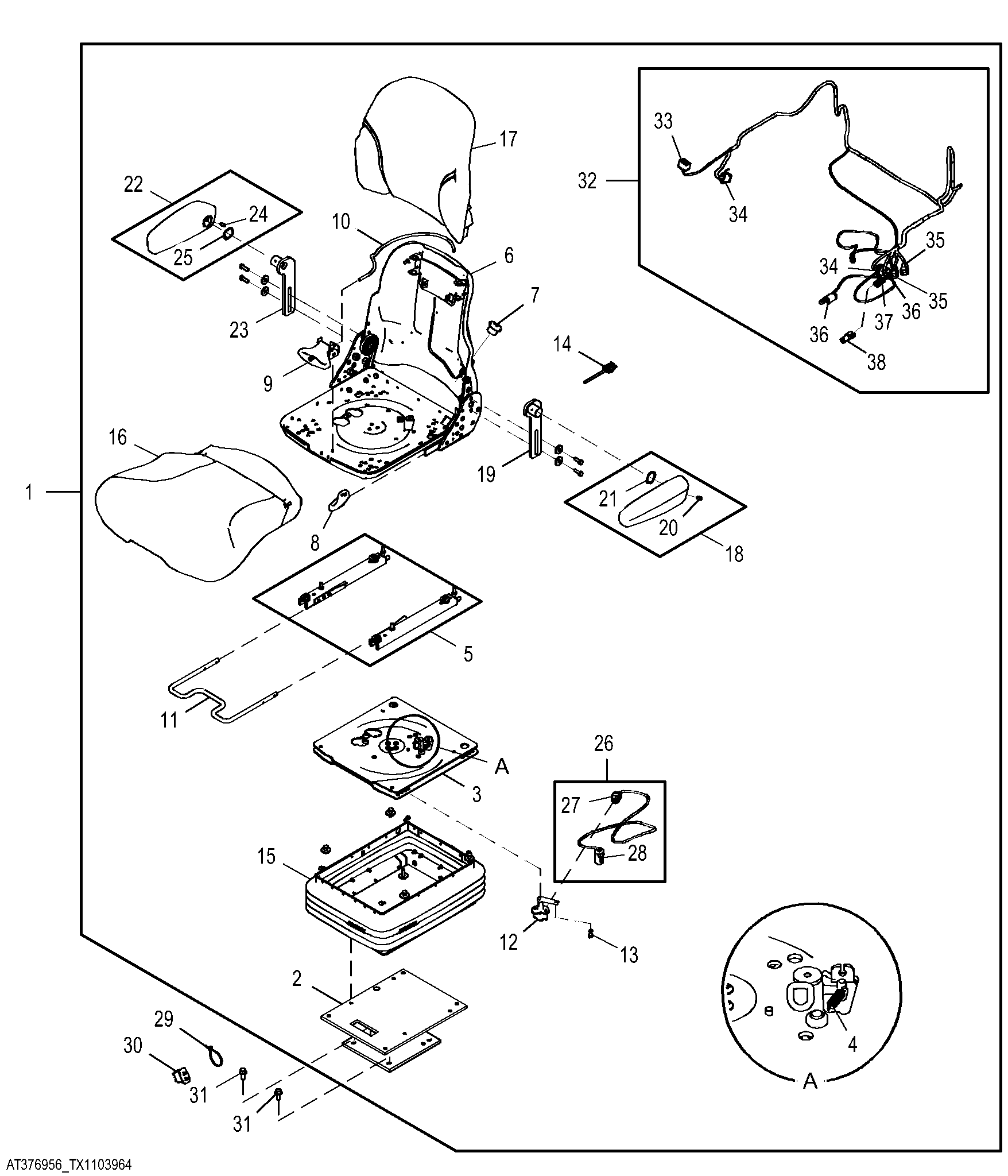

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT471524	1	Seat	Cloth Air Suspension, SUB FOR AT387959
2	AT388674	1	Pedestal	-
3	AT471526	1	Swivel	USE WITH AT475535 AND AT475534, SUB FOR AT388678 AND AT432961
3	AT388678	1	Swivel	NLA, ORDER AT471526
4	T355167	1	Spring	-
5	AT393463	1	Seat Slide Track Kit	Includes Hardware
6	AT388665	1	Pan	-
7	AT388666	1	Seat Knob Kit	Lumbar Knob
8	AT388668	1	Seat Knob Kit	Recliner Knob
9	AT388677	1	Handle	USE WITH AT432961 AND AT388665
9	AT475535	1	Handle Kit	-
10	AT475534	1	Seat Adjustment Cable Kit	SUB FOR AT393465
11	AT388679	1	Lever Kit	Slide Control
12	AT388680	1	Switch Kit	Swivel Sensor
13	T355169	1	Nut	-
14	AT192689	1	Wiring Harness	Compressor To Side Console
15	AT486404	1	Seat Suspension	Air Suspension, SUB FOR AT388676
15	AT404467	1	Wiring Harness	Pump Harness
15	57M9705	1	Electrical Connector Assy	2-Way Female
15	T210282	1	Elec. Connector Housing	Male
16	AT388672	1	Cushion	Seat Grey Cloth
17	AT388673	1	Cushion	Backrest Grey Cloth
18	AT312728	1	Armrest Kit	LH
19	AT394649	1	Bracket	LH
20	T120544	1	Screw	-
21	T120545	1	Washer	-
22	AT312730	1	Armrest Kit	RH
23	AT394650	1	Bracket	RH
24	T120544	1	Screw	-
25	T120545	1	Washer	-
26	AT393460	1	Wiring Harness	Swivel Sensor
27	57M9750	1	Elec. Connector Housing	2-Way Male
28	57M9753	1	Elec. Connector Housing	2-Way Female
29	R44302	2	Tie Band	-
30	AT354796	1	Switch	Air Seat
31	19M7785	4	Screw	M10 X 25
32	AT384911	1	Wiring Harness	EH Controls
33	T210282	1	Elec. Connector Housing	-
34	57M8010	2	Electrical Connector Assy	-
34	57M8011	2	Elec.Connect Locking Device	-
35	57M9918	2	Elec. Connector Housing	-
36	57M9130	2	Electrical Connector Assy	-
37	57M8018	1	Electrical Connector Assy	-
37	57M8019	1	Elec. Connector Terminal	-
38	57M8131	1	Electronic Terminator	-
39	AT384611	1	Retainer Kit	Boot Retainer Kit Not Illustrated, USE WITH AT388675
