Boom Section (Loader Valve) ( - 913416)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

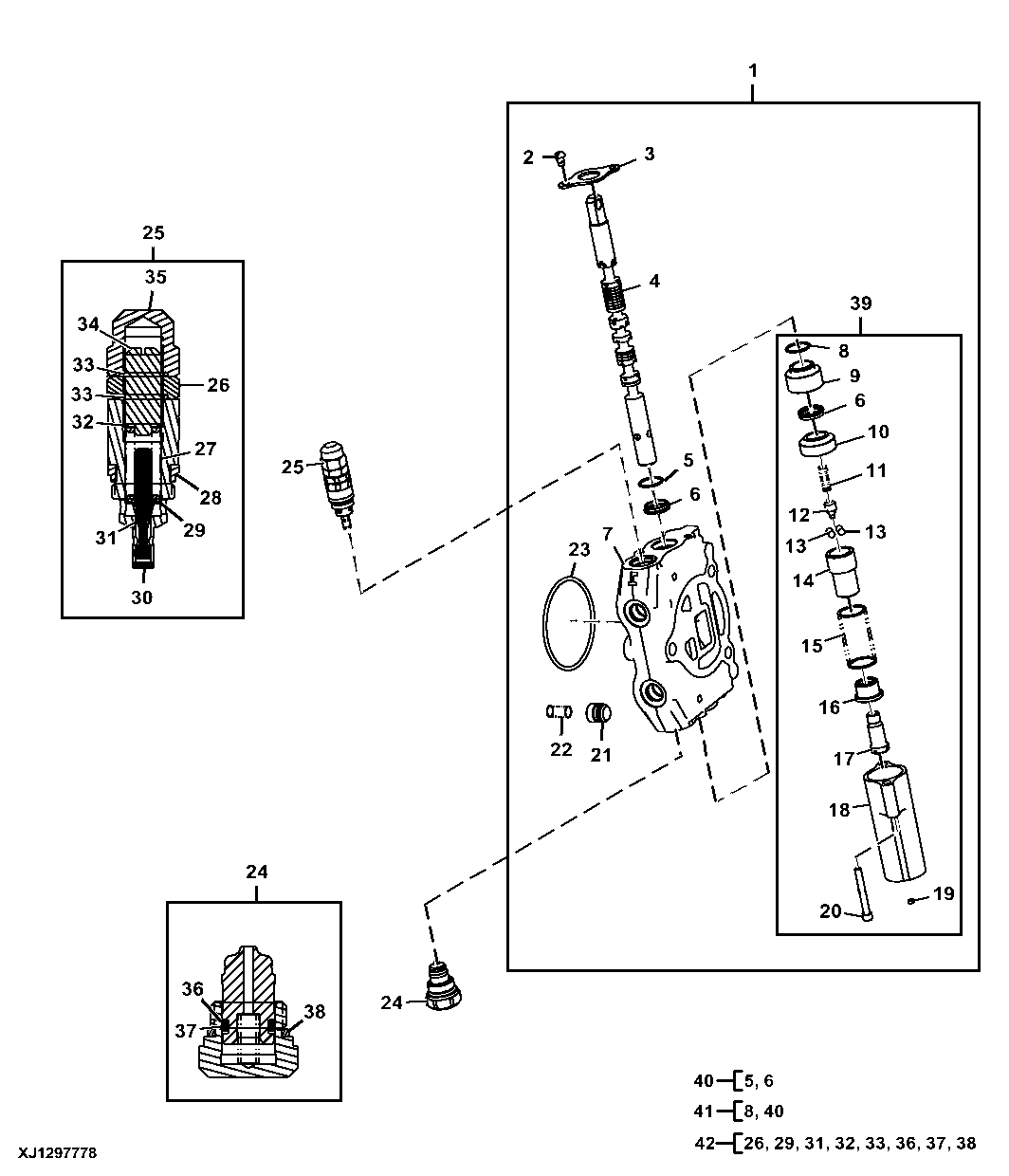

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT191707	1	Hyd Actuated Control Valve	Three Function
1	AT191715	1	Valve	Two Function
2	T104773	2	Cap Screw	6.350 X 12.700 mm (1/4" X 1/2")
3	T81524	1	Plate	-
4	-	1	Part 5	NLA, ORDER AT191715 OR AT191707
5	-	2	Part 6	NLA, ORDER AT444015
6	-	2	Part 7	NLA, ORDER AT444015
7	-	1	Part 8	NLA, ORDER AT191715 OR AT191707
8	T143000	1	Seal	-
9	T152404	1	Sleeve	-
10	T152401	1	Sleeve	-
11	-	1	Part 12	ORDER AT192372
12	T118715	1	Cam	-
13	T81535	4	Ball	-
14	T118708	1	Valve Seat Insert	-
15	T118884	1	Spring	-
16	T118709	1	Valve Seat Insert	-
17	T118711	1	End	-
18	T152398	1	Cap	-
19	T118799	1	Filter	-
20	T118712	2	Screw	-
21	T152406	1	Poppet	Two Function
21	T81538	1	Poppet	Three Function
22	T152407	1	Spring	Two Function
22	T81539	1	Spring	Three Function
23	T118685	1	O-Ring	88.494 X 3.531 mm (3-31/64" X 0.139")
24	AT169373	1	Check Valve	INCLUDES U12547
24	U12547	1	O-Ring	-
25	AT174217	1	Pressure Relief Valve	344.74 bar (5000 psi)
26	T67424	1	Nut	-
27	-	1	Part 31	NLA, ORDER AT174217
28	T183756	1	Seal	-
29	-	1	Part 33	NLA, ORDER AT314538 OR AT314539
30	-	1	Part 34	NLA, ORDER AT174217
31	-	1	Part 35	NLA, ORDER AT314538 OR AT314539
32	-	1	Part 36	NLA, ORDER AT314538 OR AT314539
33	T150961	2	O-Ring	-
34	-	1	Part 38	NLA, ORDER AT174217
35	T67425	1	Nut	-
36	-	1	Part 40	NLA, ORDER AT314539
37	-	1	Part 41	NLA, ORDER AT314539
38	T118681	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
39	AT192372	1	Detent	Positioner
40	AT444015	1	Seal Kit	Spool
41	AT280406	1	Seal Kit	SUB FOR AT178372
42	AT314538	1	Seal Kit	22.225 mm (0.875 in), Relief Valve, SUB FOR AT189413
42	AT314539	1	Seal Kit	26.99 mm (1.0625 in), Relief Valve, SUB FOR AT189413
