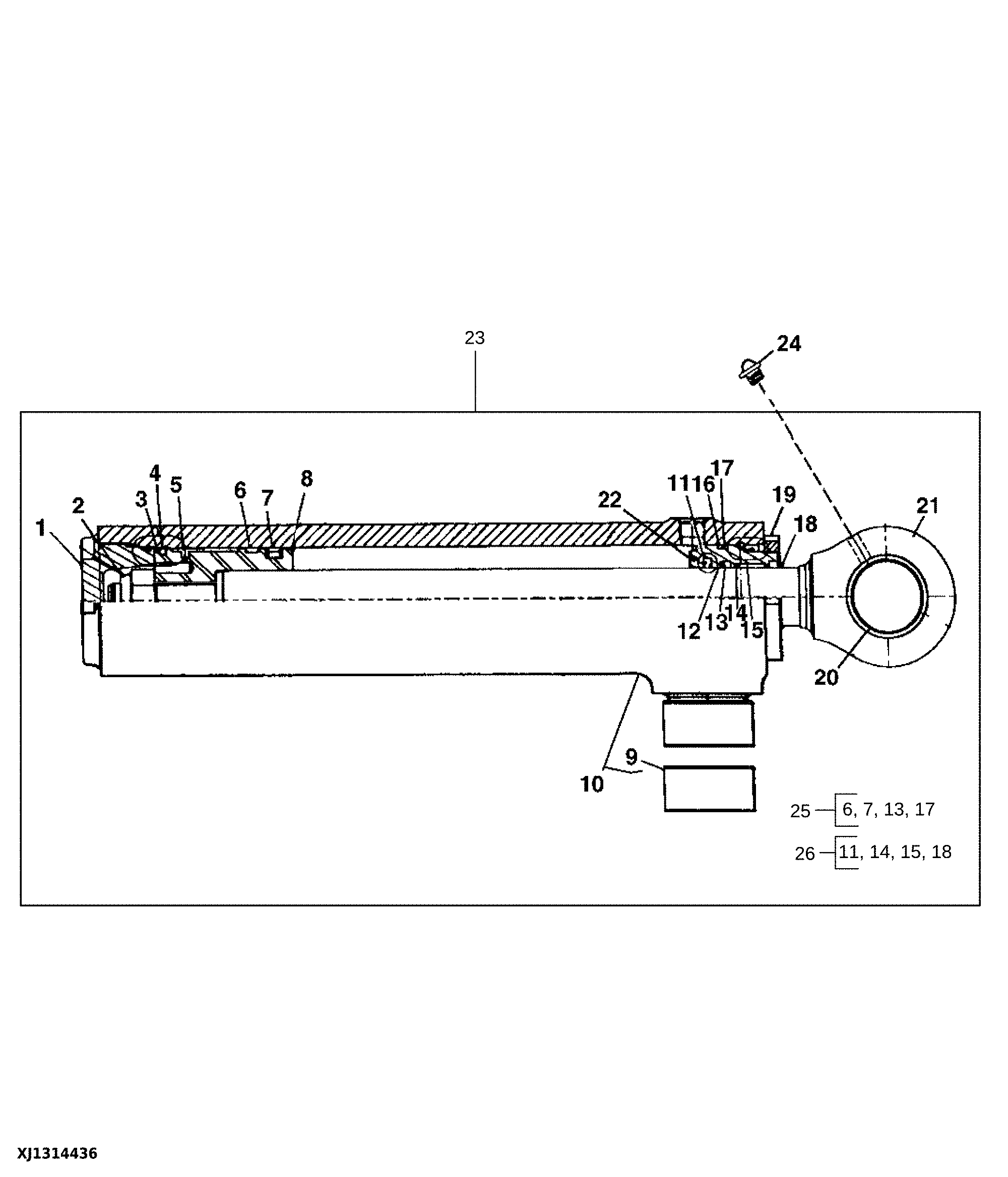

Swing Cylinder For 310E (MARKED AH145994)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	HC12770	1	Hydraulic Cylinder Cap	-
1	H158090	1	Hydraulic Cylinder Cap	NLA; ORDER HC12770
2	H170538	1	Nut	-
3	H168275	1	Back-Up Ring	SUB FOR APPL T19829
4	M4237T	1	O-Ring	-
5	R81797	1	Ring	-
6	R81777	1	Wear Ring	-
7	RE20345	1	Seal	-
8	H151641	1	Piston	-
9	H151328	2	Bushing	-
10	AH146065	1	Hydraulic Cylinder Barrel	NLA; ORDER AHC18271
11	AH146560	1	Seal	-
12	T12582	1	O-Ring	-
13	R81864	1	Back-Up Ring	-
14	H152202	1	Seal	-
15	H152793	1	Wear Ring	-
16	R81789	1	Ring	-
17	R91729	1	Ring	-
18	AH146556	1	Seal	-
19	R81795	1	Nut	-
20	H180402	1	Bushing	-
21	AH146062	1	Hydraulic Cylinder Rod	-
22	H157510	1	Hydr. Cylinder Rod Guide	SUB FOR H152347
23	AHC18271	1	Hydraulic Cylinder	Components on Separate Page
23	AT475360	1	Hydraulic Hose	-
23	38H5017	1	Elbow Fitting	-
23	38H5111	1	Tee Fitting	-
23	51M7043	2	O-Ring	15.300 X 2.200 mm
23	T77857	2	O-Ring	-
23	AH145994	1	Hydraulic Cylinder	NLA, ORDER AHC18271; ALSO ORDER AT475360, 38H5017, 38H5111, (2) 51M7043, AND (2) T77857
24	T162396	3	Lubrication Fitting	SUB FOR JD7798
25	F950R	1	O-Ring	-
25	AHC17345	1	Seal	-
25	R83575	1	O-Ring	-
25	P48403	1	O-Ring	-
25	H155548	1	Back-Up Ring	-
25	H150678	1	Back-Up Ring	-
25	AHC20488	1	Hydraulic Cylinder Kit	Bore, INCLUDES F950R, H150678, H155548, P48403, R83575 AND AHC17345
25	AH212091	1	Hydraulic Cylinder Kit	Bore, NLA; ORDER AHC20488
25	AH149842	1	Hydraulic Cylinder Kit	Bore, NLA; ORDER AHC20488
26	AH149813	1	Hydraulic Cylinder Kit	Rod, NLA; ORDER AHC11572
26	AHC11572	1	Hydraulic Cylinder Kit	Rod, INCLUDES AHC11136, H157898 AND H157899
26	AHC11136	1	Seal	-
26	H157898	1	Wear Ring	-
26	H157899	1	Seal	-

Swing Cylinder For 310E (MARKED AH145994)
