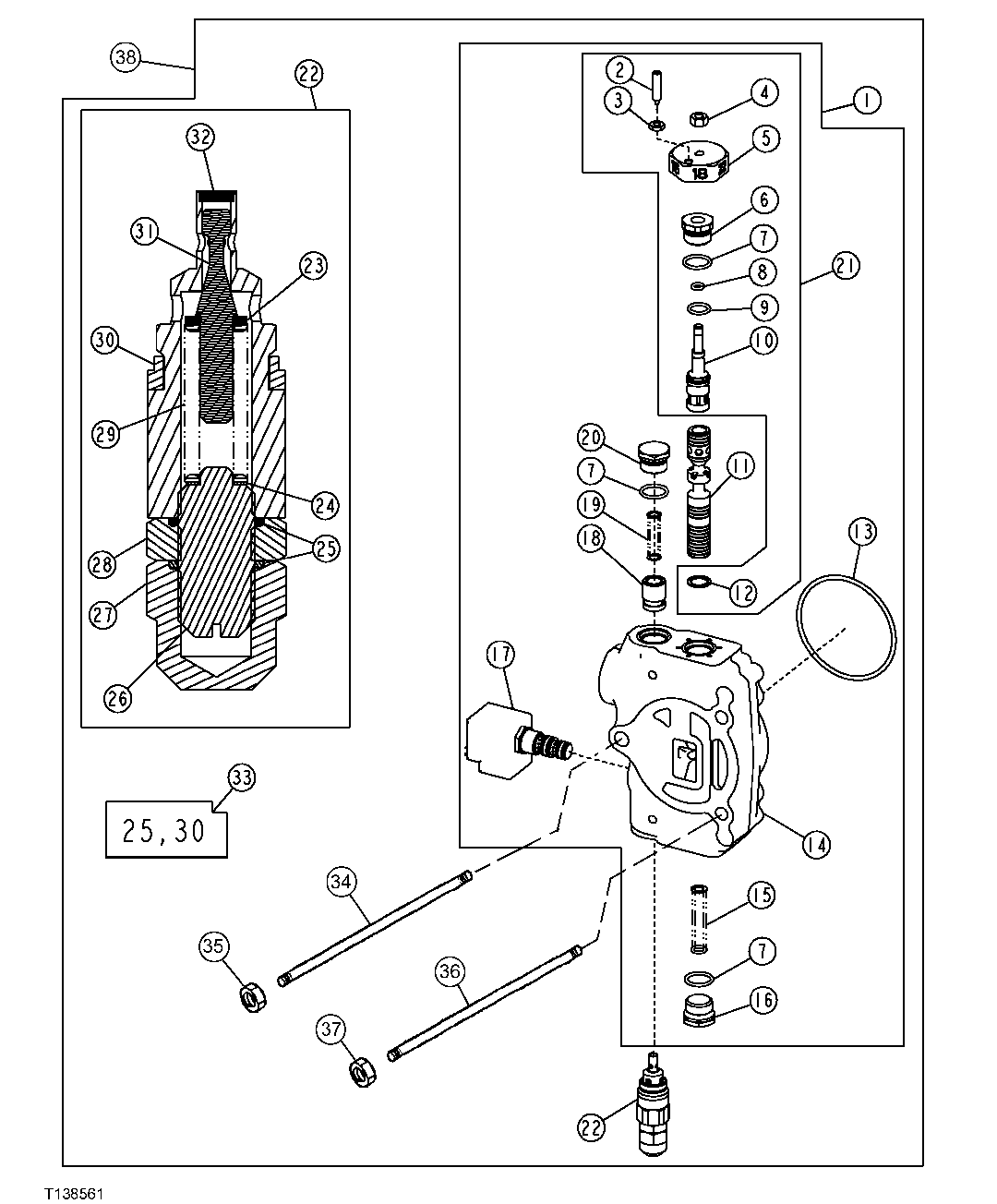

Selective Flow Control Valve Kit (Six Position) (Backhoe Valve)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT192384	1	Flow Control Hyd. Valve	-
2	T160663	1	Plunger	-
3	14H786	1	Nut	1/4"
4	14H785	1	Nut	5/16"
5	-	1	Part 5	-
6	-	1	Part 6	-
7	-	1	Part 7	-
8	-	1	Part 8	-
9	-	1	Part 9	-
10	-	1	Part 10	-
11	-	1	Part 11	-
12	-	1	Part 12	-
13	T118685	1	O-Ring	-
14	-	1	Part 14	-
15	T184356	1	Spring	-
16	T76502	1	Fitting	-
17	AT174923	1	Solenoid Valve	-
17	AT178475	1	Seal Kit	(SOLENOID VALVE)
18	T184271	1	Poppet	-
19	T160520	1	Spring	-
20	T160613	1	Plug	-
21	AT192385	1	Hand Operated Valve	(FLOW ADJUSTMENT)
22	AT190234	1	Pressure Relief Valve	-
23	-	1	Part 24	-
24	-	1	Part 25	-
25	-	2	Part 26	-
26	-	1	Part 27	-
27	-	1	Part 28	-
28	-	1	Part 29	-
29	-	1	Part 30	-
30	T183756	1	Seal	-
31	-	1	Part 32	-
32	-	1	Part 33	-
33	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
33	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
34	T140700	1	Rod	(5-FUNCTION)
34	T159264	1	Stud	(6-FUNCTION)
34	T159264	1	Stud	(7-FUNCTION)
34	T140700	1	Rod	(6-FUNCTION)
34	T140699	1	Rod	(4-FUNCTION)
34	T140699	1	Rod	(5-FUNCTION)
35	14H865	2	Nut	1/2"
36	T118695	2	Rod	(5-FUNCTION)
36	T118695	2	Rod	(4-FUNCTION)
36	T118697	2	Rod	(6-FUNCTION)
36	T118697	2	Rod	(5-FUNCTION)
36	T159263	2	Stud	(7-FUNCTION)
36	T159263	2	Stud	(6-FUNCTION)
37	14H807	4	Nut	7/16"
38	AT192382	1	Kit	(WHOLE GOODS), (INCLUDES AT176581, AT178046 AND AT181481)

Selective Flow Control Valve Kit (Six Position) (Backhoe Valve)

Нет текстового описания
