Открытый узел

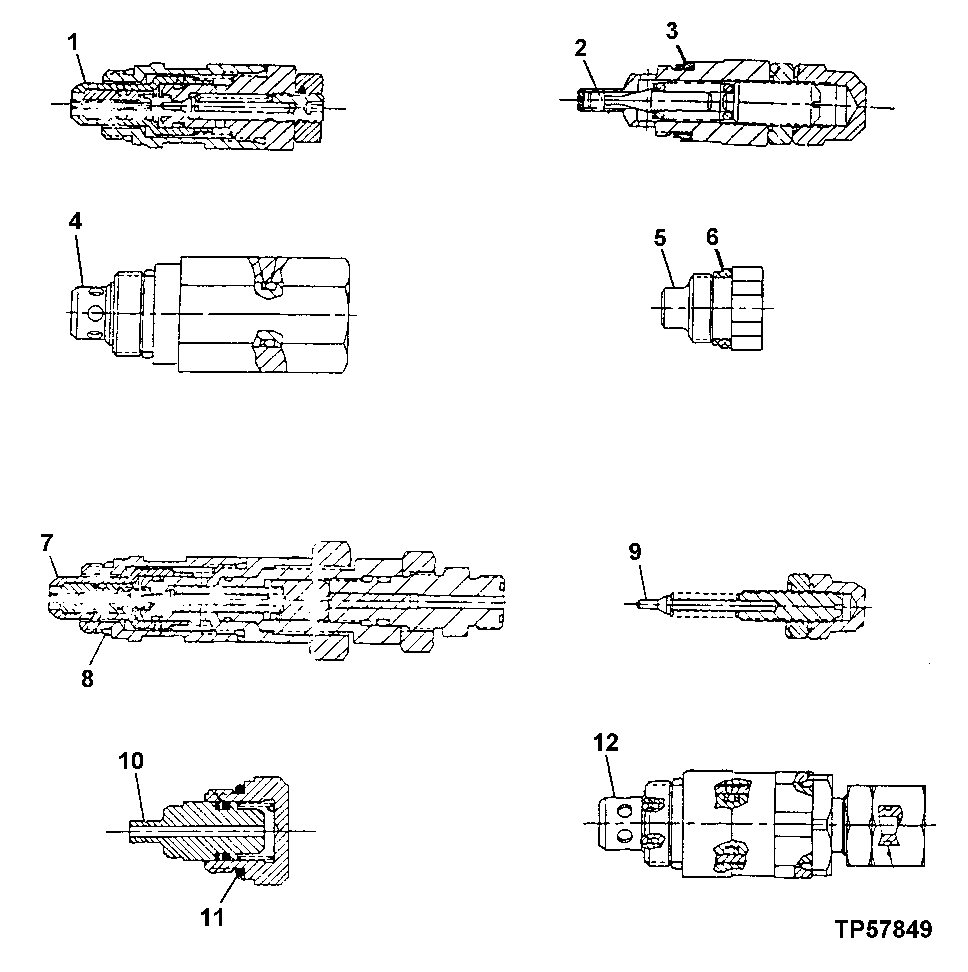

Loader Control Valve (Relief Valves And Kits)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT316302	1	Pressure Relief Valve	(3525 PSI) INLET SECTION, (SUB FOR AT178471)
1	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
1	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
1	AT318530	1	Pressure Relief Valve	(2650 PSI) INLET SECTION, (SUB FOR AT172945)
2	AT174217	1	Pressure Relief Valve	(5000 PSI) BOOM SECTION, TOP PORT
2	AT172937	1	Pressure Relief Valve	(4600 PSI) BUCKET SECTION, TOP PORT
2	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
2	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
3	T183756	1	Seal	(SUB FOR T126301)
4	AT182377	1	Pressure Relief Valve	(3800 PSI) AUXILIARY SECTION, BOTTOM PORT
4	AT178362	1	Valve Kit	(CARTRIDGE)
4	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
4	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
5	AT83174	1	Fitting Plug	AUXILIARY SECTION, TOP PORT
5	AT78527	1	Fitting Plug	AUXILIARY SECTION, TOP PORT
6	T183756	1	Seal	(SUB FOR T126301)
6	T183757	1	Seal	(SUB FOR T141872)
7	AT172941	1	Pressure Relief Valve	(2900/3525 PSI) INLET SECTION
7	AT172941	1	Pressure Relief Valve	(2900/3525 PSI) INLET SECTION
7	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
7	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
8	R47151	1	O-Ring	-
9	AT168671	1	Pressure Relief Valve	LOAD SENSE
10	AT169373	1	Check Valve	BOOM SECTION, BOTTOM PORT
11	U12547	1	O-Ring	-
12	AT172942	1	Pressure Relief Valve	(4600 PSI) BUCKET SECTION, BOTTOM PORT
12	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
12	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)

Loader Control Valve (Relief Valves And Kits)

Нет текстового описания
