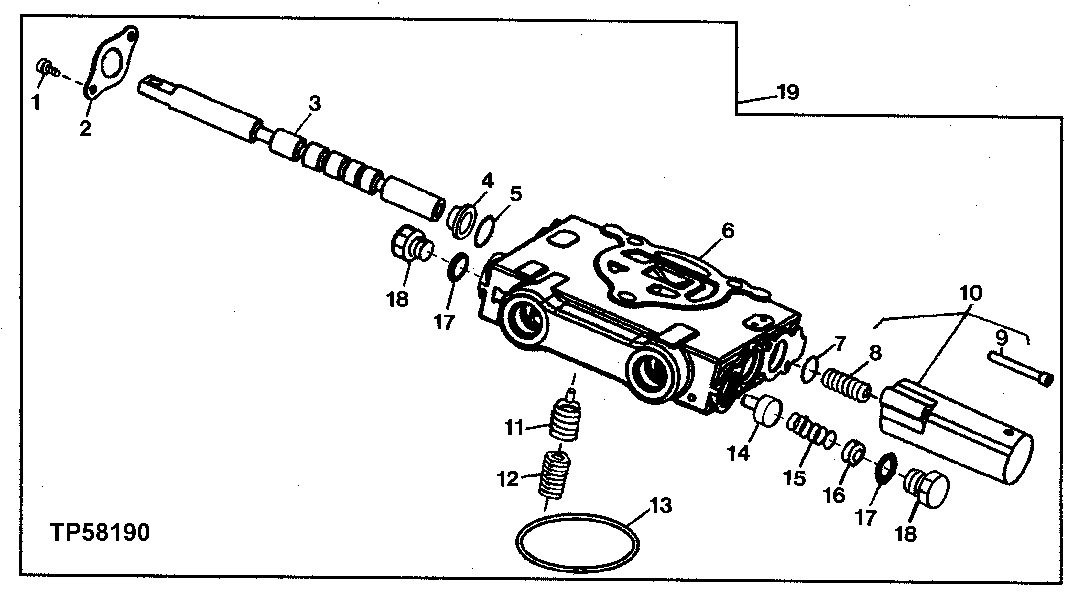

Loader Control Valve (Boom Section) (Husco)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1352	2	Screw	1/4" X 3/8"
2	T81524	1	Plate	-
3	-	1	Part 3	-
4	-	1	Part 4	(B)
5	-	1	Part 5	(B)
6	-	1	Part 6	-
7	-	1	Part 7	(B)
8	T118884	1	Spring	(SUB FOR T161006)
9	T118712	2	Screw	-
10	T152398	1	Cap	-
10	T118799	1	Filter	-
10	T118709	1	Valve Seat Insert	-
10	T118711	1	End	-
10	T81535	4	Ball	-
10	T152401	1	Sleeve	-
10	T118708	1	Valve Seat Insert	-
10	T152404	1	Sleeve	-
10	AT178361	1	Detent	POSITIONER
10	T118715	1	Cam	-
11	T152406	1	Poppet	-
12	T152407	1	Spring	-
13	T118685	1	O-Ring	-
14	-	1	Part 23	(A)
15	R124455	1	Spring	(A)
16	-	1	Part 25	(A)
17	R26906	2	O-Ring	(A)
18	-	2	Part 27	(A)
19	AT176916	1	Hyd Actuated Control Valve	(TWO FUNCTION)
19	AT176918	1	Hyd Actuated Control Valve	(THREE FUNCTION)
19	AT170219	1	Hyd Actuated Control Valve	(TWO FUNCTION)
19	AT170230	1	Hyd Actuated Control Valve	(THREE FUNCTION)
19	AT280406	1	Seal Kit	SPOOL SEAL, (SUB FOR AT178372)
19	AT314538	1	Seal Kit	7/8 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
19	AT314539	1	Seal Kit	1 1/16 INCH SEAL KIT (ORDER ONE KIT PER RELIEF VALVE), (SUB FOR AT178359 AND AT189413)
..	AT178371	1	Seal Kit	(DRIFT CHECK KIT) INCLUDES ALL (A) PARTS
..	AT280406	1	Seal Kit	(SPOOL SEAL KIT) INCLUDES ALL (B) PARTS, (SUB FOR AT178372)

Loader Control Valve (Boom Section) (Husco)
