CONTROLLED LOAD LOWERING DEVISE, CROWD CYLINDER KIT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT180210	1	Hydraulic Hose	13/16" X 592 mm (23-1/4") X 1", (PORT "M")
2	T77932	9	O-Ring	-
3	38H1482	1	Reducer	(RETURN LINE)
4	T77858	1	O-Ring	(BRAZES FITTING-RETURN LINE)
5	T77857	2	O-Ring	(PORT "M" HOSE ENDS)
6	38H1095	1	Elbow Fitting	(PORT "M")
7	R26375	1	O-Ring	(PORT "M")
8	38H1161	1	Adapter Fitting	(PORT "M" )
9	U12547	2	O-Ring	(PORT "FB" (1) - PORT "A" (1) )
10	38H1404	1	Elbow Fitting	(PORT "A")
11	AT180213	1	Hydraulic Hose	(PORT "A" )
12	38H1329	1	Adapter Fitting	(PORT "FB")
13	AT180211	1	Hydraulic Hose	1" X 309 mm (12-1/4") X 1", (PORT "FB")
13	AT180658	1	Hydraulic Hose	1" X 368 mm (14-1/2") X 1", (PORT "FB")
14	38H1006	1	Elbow Fitting	(PORT "B")
14	38H1006	1	Elbow Fitting	(CROWD HEAD END)
15	R26906	2	O-Ring	(PORT "B" (1) - PORT "ANN" (1)
15	R26906	1	O-Ring	(HEAD END OF CROWD CYLINDER)
16	R44302	1	Tie Band	(TIE PORT "A" AND PORT "B" HOSES)
17	AT180214	1	Hydraulic Hose	(PORT "B" )
18	T161769	1	Plate	(TO CROWD CYLINDER)
19	TY22493	2	Hose Clamp	(SUB FOR AR89602, THIS APPLICATION)
19	AR85327	2	Clamp	(MOUNTING PLATE)
20	AT180206	1	Oil Line	(PORT "ANN")
21	38H1162	1	Adapter Fitting	(PORT "ANN" )
22	AT175126	1	Hyd Actuated Control Valve	(CONTROLLED LOAD LOWERING DEVICE - CROWD)
23	-	1	Part 27	ADJUSTABLE (CLLD)
23	-	1	Part 28	LOCK NUT (CLLD VALVE)
24	AT180088	1	Hyd Actuated Control Valve	LOAD CONTROL (400 PSI)
24	AT180083	1	Seal Kit	-
25	AT180082	1	Seal Kit	-
25	AT180087	1	Hyd Actuated Control Valve	-
26	AT180076	1	Pressure Relief Valve	RELIEF (5000 PSI)
26	AT180081	1	Seal Kit	-
27	AT180079	1	Check Valve	SEQUENCE (450 PSI)
27	AT180086	1	Seal Kit	-
28	T161665	1	Label	(SERVICE VALVE)
29	24M7239	2	Washer	10.700 X 21 X 2.500 mm, (MOUNTING BRACKET SCREWS)
30	19H1134	2	CAP SCREW	3/8" X 3/4", (MOUNTING BRACKET)
31	-	1	Part 40	( AT178789 NO LONGER OFFERED)
31	AT178769	1	Kit	(WHOLE GOODS), (ALSO INCLUDES ADDITIONAL HYDRAULIC HOSES, FITTINGS AND MISCELLANEOUS PARTS)

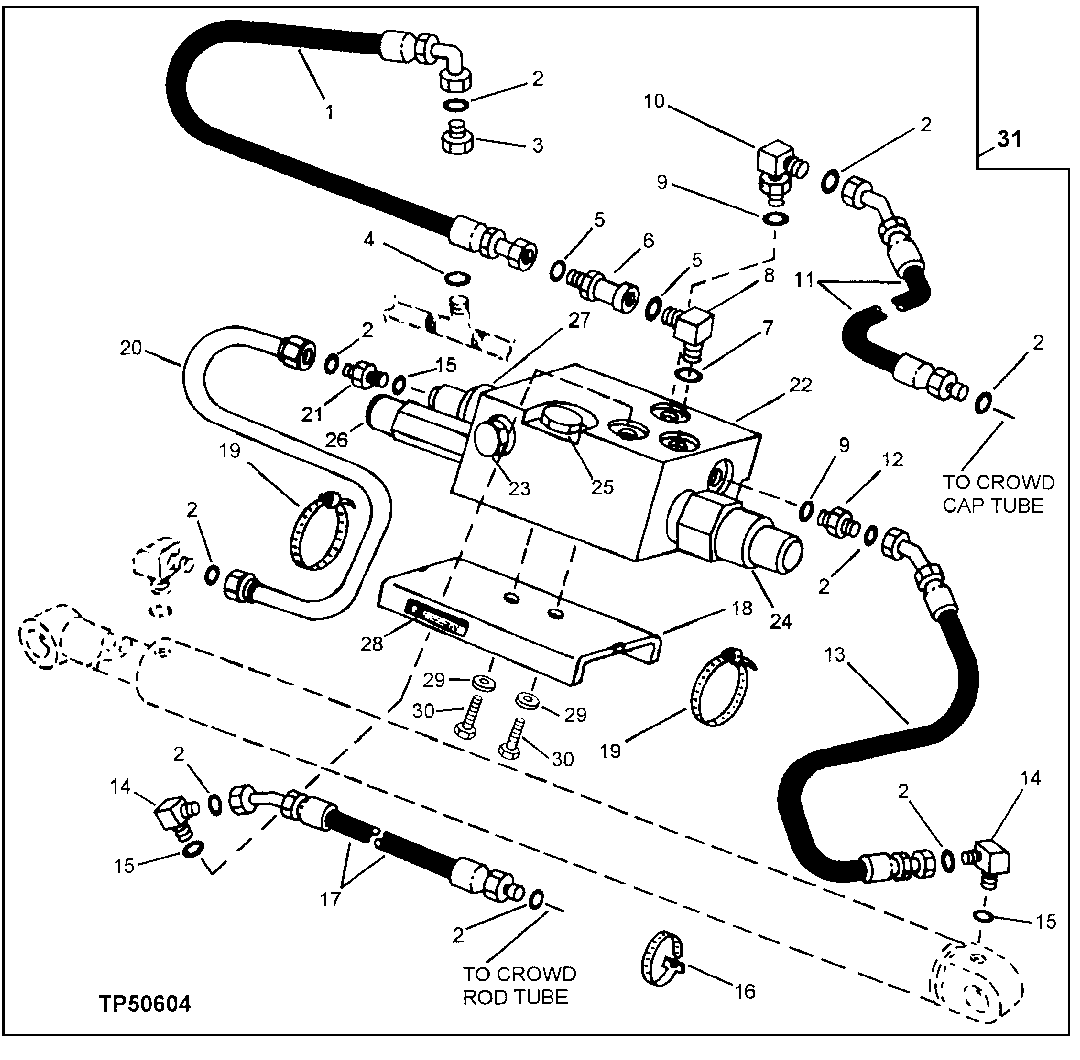

CONTROLLED LOAD LOWERING DEVISE, CROWD CYLINDER KIT
