CONTROLLED LOAD LOWERING DEVISE, BOOM CYLINDER KIT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	2	Bolt	M10 X 30, (RETURN LINE)
2	24M7239	2	Washer	10.700 X 21 X 2.500 mm, (MOUNTING BRACKET SCREWS)
3	T160376	4	Clamp	(RIGHT SIDE BOOM LINE)
4	38H1149	1	Fitting Plug	(RETURN LINE)
5	AT180204	1	Oil Line	(RIGHT SIDE OF BOOM)
5	AT180667	1	Oil Line	(RIGHT SIDE OF BOOM)
6	14M7274	4	Nut	M10, (RETURN LINE)
7	T77858	6	O-Ring	-
8	38H1482	1	Reducer	(RETURN LINE)
9	T77932	11	O-Ring	-
10	38H1418	1	Fitting	(TEE CAP WHEN CROWD CLLD IS NOT REQUIRED)
11	AT180208	1	Hydraulic Hose	13/16" X 802 mm (31-1/2") X 1", (PORT "M")
12	T77857	2	O-Ring	(PORT "M" )
13	38H1161	1	Adapter Fitting	(PORT "M" )
14	38H1095	1	Elbow Fitting	(PORT "M" )
15	R26375	1	O-Ring	-
16	38H1006	1	Elbow Fitting	(PORT "B" )
17	AT180209	1	Hydraulic Hose	(PORT "FB")
18	AT180212	1	Hydraulic Hose	1" X 824 mm (32-1/2") X 1", (PORT "B")
19	-	1	Part 20	(TO BOOM ROD TUBE)
20	R26906	2	O-Ring	(PORT "B" (1) - PORT "M" (1) )
21	38H1162	1	Adapter Fitting	(PORT "ANN" )
22	AT180205	1	Oil Line	(PORT "ANN")
23	TY22493	2	Hose Clamp	(SUB FOR AR89602)
23	AR85327	2	Clamp	(MOUNTING PLATE)
24	T161769	1	Plate	(TO BOOM CYLINDER)
25	24M7239	6	Washer	10.700 X 21 X 2.500 mm, (RETURN LINE)
26	19H1134	2	CAP SCREW	3/8" X 3/4", (MOUNTING BRACKET)
27	-	1	Part 29	(TO BOOM CAP TUBE)
28	AT180212	1	Hydraulic Hose	1" X 824 mm (32-1/2") X 1", (PORT "A")
29	U12547	2	O-Ring	(PORT "FB" (1) - PORT "A" (1) )
30	38H1404	1	Elbow Fitting	(PORT "A")
31	38H1329	1	Adapter Fitting	(PORT "FB" )
32	AT175125	1	Hyd Actuated Control Valve	CONTROLLED LOAD LOWERING DEVICE (BOOM)
33	AT180076	1	Pressure Relief Valve	RELIEF (5000 PSI)
33	AT180081	1	Seal Kit	-
34	AT180077	1	Hyd Actuated Control Valve	SEQUENCE (550 PSI)
34	AT180082	1	Seal Kit	-
35	AT180078	1	Hyd Actuated Control Valve	LOAD CONTROL (325 PSI)
35	AT180083	1	Seal Kit	-
36	AT180079	1	Check Valve	CHECK
36	AT180086	1	Seal Kit	-
37	T161665	1	Label	(SERVICE VALVE)
38	AT194444	1	Kit	(WHOLE GOODS), (SUB FOR AT178788 (ALSO INCLUDES ADDITIONAL HYDRAULIC HOSES, FITTINGS AND MISCELANEOUS PARTS))
38	AT194445	1	Kit	(WHOLE GOODS), (SUB FOR AT178768 (ALSO INCLUDES ADDITIONAL HYDRAULIC HOSES, FITTINGS AND MISCELLANEOUS PARTS))

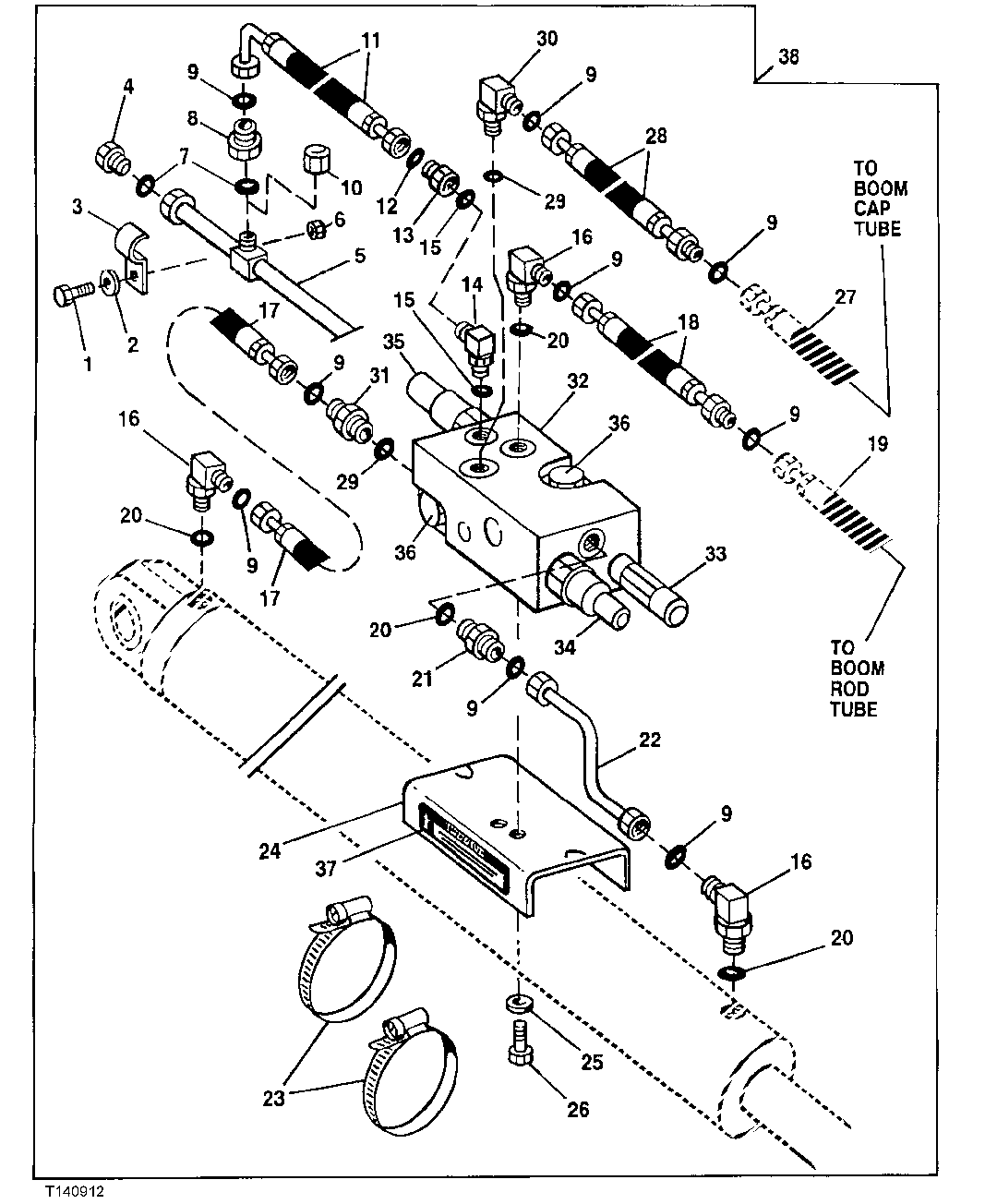

CONTROLLED LOAD LOWERING DEVISE, BOOM CYLINDER KIT
