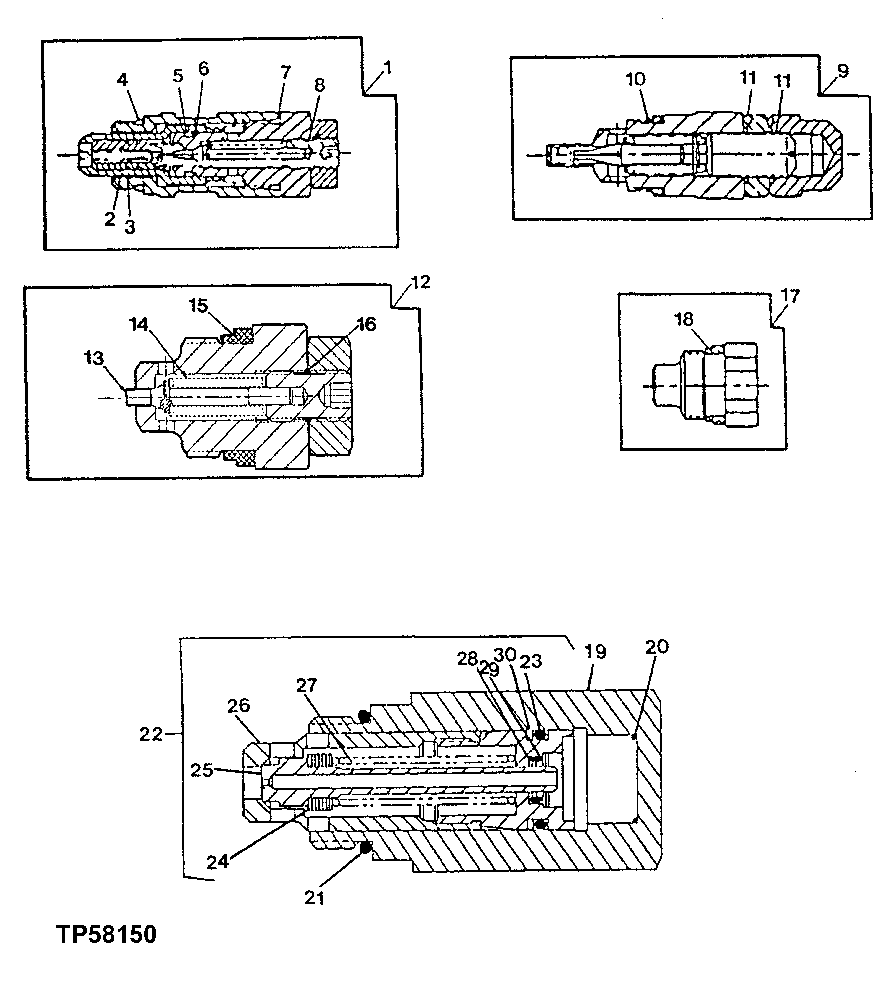

Backhoe Control Valve (Relief Valves And Kits)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT340275	1	Pressure Relief Valve	3625 psi, Priority/Inlet Section, SUB FOR AT316302 AND AT178471
2	-	1	Part 2	-
3	-	1	Part 3	-
4	-	1	Part 4	-
5	-	1	Part 5	-
6	-	1	Part 6	-
7	-	1	Part 7	-
8	R79060	1	O-Ring	-
9	AT171405	1	Pressure Relief Valve	3800 psi, Crowd Section, bottom Port 7/8 inch
9	AT174217	1	Pressure Relief Valve	5000 psi, 7/8 inch, Boom Section Bottom Port
9	AT172937	1	Pressure Relief Valve	4600 psi, Bucket Section, Top and Bottom Port
9	AT171404	1	Pressure Relief Valve	4750 psi, Crowd Section, Top Port 7/8 inch
10	T183756	1	Seal	SUB FOR T126301
11	-	2	Part 14	-
12	RE39397	1	Pressure Relief Valve	2300 psi, Auxiliary Section, 7/8 inch, SUB FOR AT178463
12	RE39397	1	Pressure Relief Valve	2300 psi, Selective Flow Section, SUB FOR AT178463
13	-	1	Part 17	-
14	-	1	Part 18	-
15	T183756	1	Seal	SUB FOR T126301
16	R79060	1	O-Ring	-
17	AT83174	1	Fitting Plug	Extendible Section, Top and Bottom Port
18	T183757	1	Seal	SUB FOR T141872
19	T118866	1	Housing	-
20	T118867	1	Spring	-
21	T118681	1	O-Ring	-
22	AT178363	1	Pressure Relief Valve	Relief Cartridge, Boom Section Top Port, 2150 psi
22	AT178362	1	Valve Kit	Relief Cartridge, Swing Section Top and Bottom Port, 3800 psi
23	-	1	Part 28	-
24	-	1	Part 29	-
25	-	1	Part 30	-
26	-	1	Part 31	-
27	-	1	Part 32	-
28	-	2	Part 33	-
29	-	1	Part 34	-
30	-	1	Part 35	-
30	AT314538	1	Seal Kit	7/8 inch, Relief Valve Seal Kit, SUB FOR AT189413
30	AT314539	1	Seal Kit	1 1/16 inch, Relief Valve Seal Kit, SUB FOR AT189413
