Backhoe Bucket Quick Coupler (Deere Designed Buckets Only)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT180471	1	PIN	-
1	AT175063	1	Pin	-
2	T29342	1	Washer	-
3	19M8935	1	Cap Screw	M12 X 16
3	19M8017	1	Cap Screw	M12 X 20
4	T188568	1	Bushing	THREADED (WELD ON), (SUB FOR T157922)
4	T162108	1	Bushing	THREADED (WELD ON)
5	-	1	Part 8	-
5	AT181259	1	Quick Coupler	(SUB AT192107 ) (ALSO ORDER AT192263)
6	AT178072	1	Pin	-
6	AT175063	1	Pin	-
7	AA21292	1	Quick Lock Pin	-
7	AR83396	1	Quick Lock Pin	-
8	AT183580	1	Quick Coupler	(WHOLE GOODS), (SUB AT192090 ) (ALSO ORDER AT192262 (KIT) (THIS COUPLER WILL ONLY ACCEPT JD BUCKETS DESIGNED FOR 310E))
8	AT183577	1	Quick Coupler	(WHOLE GOODS), (SUB AT192093 ) (ALSO ORDER AT192263 (KIT) (THIS COUPLER WILL ONLY ACCEPT JD BUCKETS DESIGNED FOR 310SE AND 315SE))

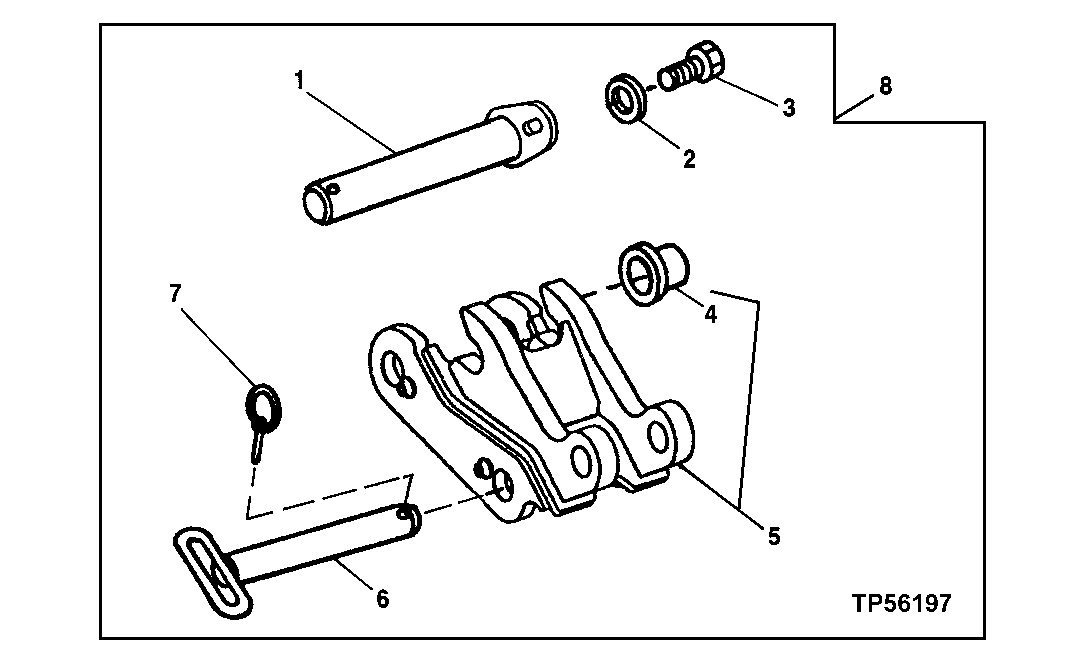

Backhoe Bucket Quick Coupler (Deere Designed Buckets Only)
