BACKHOE BOOM SWING LOCK VALVE AND HYDRAULICS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7932	4	Cap Screw	M8 X 16
2	24M7055	4	Washer	8.400 X 16 X 1.600 mm
3	RE43637	1	Actuator	-
4	T160992	1	Lock Plate	-
5	51M7042	1	O-Ring	13.300 X 2.200 mm
6	RE46534	1	Switch	-
7	AT181284	1	Wiring Harness	LOCKVALVE, (SUB FOR AT179477)
8	AT179029	1	Solenoid Valve	-
9	T161081	1	Bracket	-
10	19M7932	2	Cap Screw	M8 X 16
11	14M7272	2	Nut	M6
12	24M7267	2	Washer	6.400 X 11 X 1.600 mm
13	19M8538	2	Cap Screw	M6 X 45
14	R26448	3	O-Ring	-
15	AR64705	1	Elbow Fitting	-
16	TY22462	2	Clamp	(SUB FOR AR48236)
17	-	1	Part 17	MAKE FROM M87571 BULK MATERIAL CUT TO 1800 MM
18	T65295	1	Hose Fitting	-
19	R26448	1	O-Ring	-
20	R32247	1	Adapter Fitting	-
21	R26906	1	O-Ring	-
22	R26286	1	O-Ring	-
23	38H1170	1	Adapter Fitting	-
24	T77613	2	O-Ring	-
25	AT179297	1	Hydraulic Hose	-
26	38H1160	1	Adapter Fitting	-
27	38H1425	1	Tee Fitting	-
28	T77814	2	O-Ring	-
29	AT180146	1	Hydraulic Hose	-
30	AT180145	1	Hydraulic Hose	-
31	T77814	4	O-Ring	-
32	38H1284	2	Adapter Fitting	-
33	14H832	2	Nut	9/16"
34	T163225	1	Plate	(SUB FOR T161679)
35	AT180147	2	Hydraulic Hose	-
36	T77814	2	O-Ring	-
37	38H1044	2	Elbow Fitting	45 DEGREE
38	R28782	2	O-Ring	-
39	AH171683	2	Hydraulic Cylinder	(SUB FOR AT177592)
40	19M7362	2	Cap Screw	M12 X 55
41	24M7047	2	Washer	13 X 24 X 2.500 mm
42	14M7415	2	Nut	M12
43	T160590	2	Spring	-
44	T121474	2	Yoke	-
45	T161598	4	Snap Ring	-
46	T161013	2	Pin	-
47	T161012	1	Lock	-
48	24H1679	1	Washer	2-17/64" X 3-1/4" X 0.060"
49	T161011	1	Lock	-
50	40M7066	4	Snap Ring	-
51	AT150725	1	Pin Fastener	-
52	R44302	1	Tie Band	-
53	24M7047	2	Washer	13 X 24 X 2.500 mm
54	19M7872	2	Cap Screw	M12 X 25
55	T164714	1	Grommet	(SUB FOR N30256, THIS APPLICATION)LOCKVALVE HARNESS

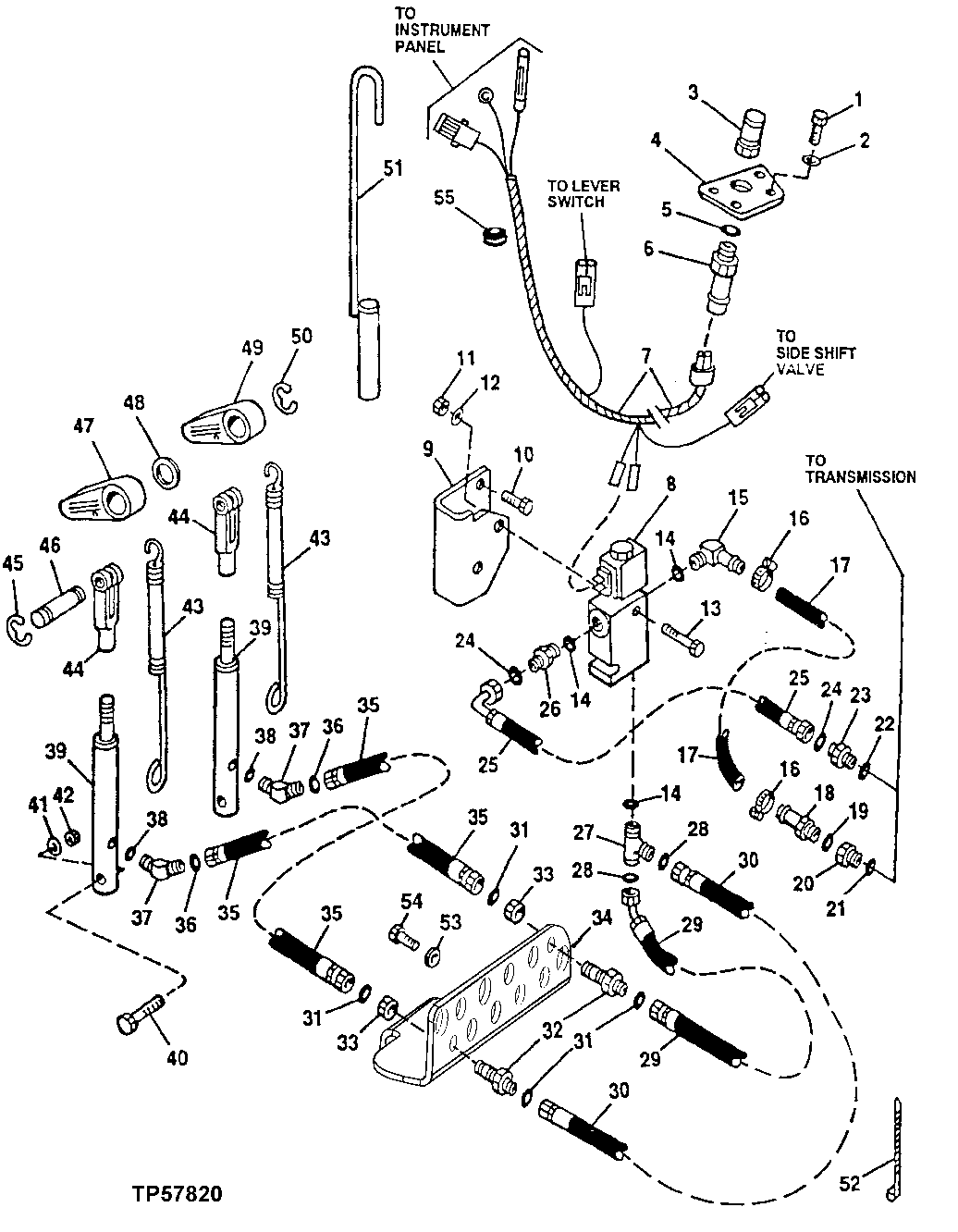

BACKHOE BOOM SWING LOCK VALVE AND HYDRAULICS
