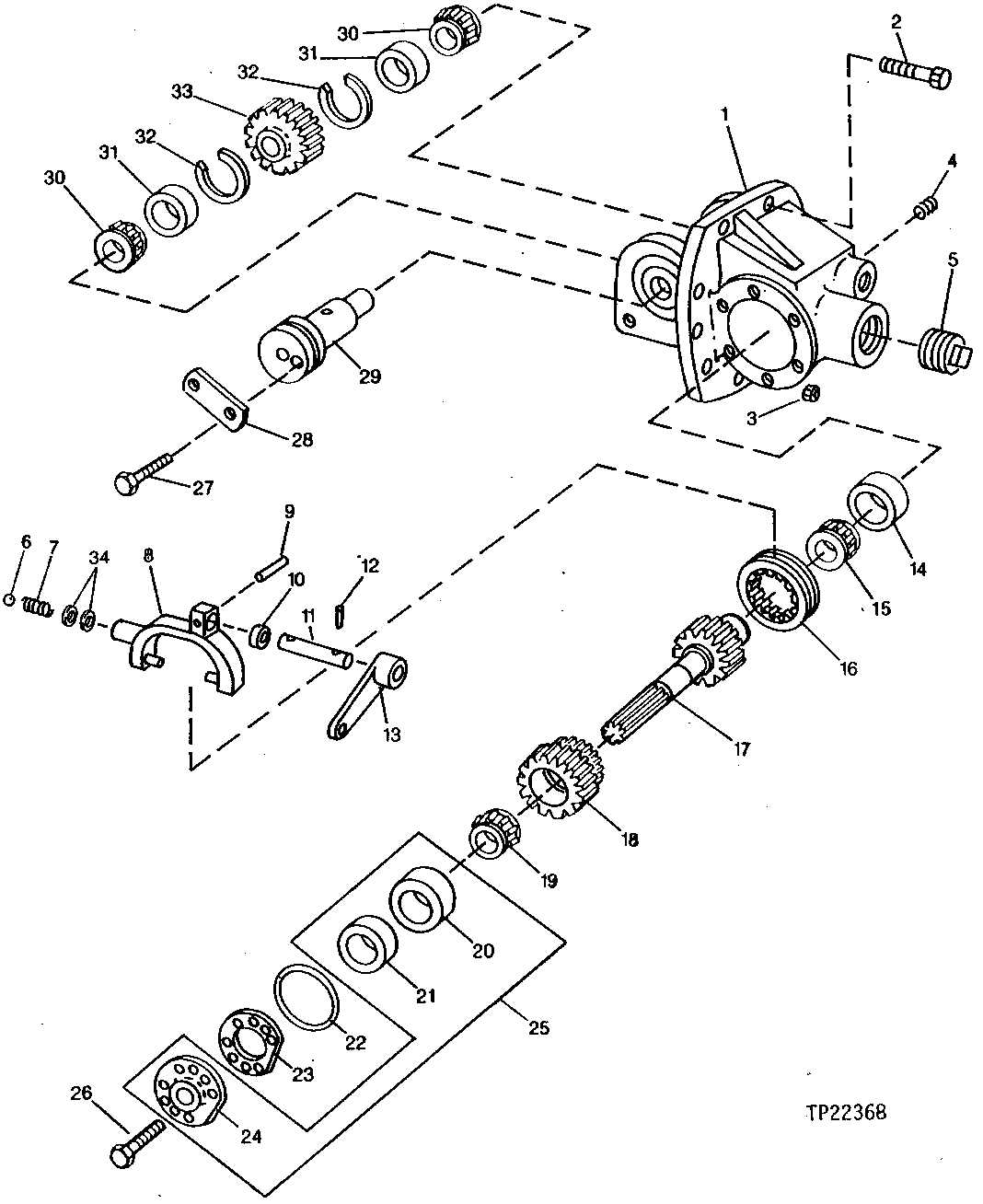

TRANSFER CASE ASSEMBLY (MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. 737488- ) [01D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T105900	1	CASE	-
2	19H2993	4	Cap Screw	1/2" X 1-1/2"
3	14H1040	1	Nut	1/2"
4	15H666	1	Pipe Plug	3/8"
5	15H280	1	Pipe Plug	1-1/4"
6	R26552	1	Ball	-
7	T27716	1	Compression Spring	-
8	AT166880	1	YOKE	(SUB FOR AT32496)
9	25H522	1	Groove Pin	-
10	AT124394	1	Seal	(SUB FOR AR39043, THIS APPLICATION)
11	T133700	1	Shaft	(SUB FOR T106214)
12	34H101	1	Spring Pin	1/4" X 1"
13	T106215	1	LEVER	-
14	JD9125	1	Bearing Cup	-
15	JD9065	1	Bearing Cone	-
16	T21970	1	SHIFT COLLAR	-
17	T145295	1	Shaft	(SUB FOR T105901)
18	T105902	1	Gear	DRIVEN (28 TEETH)
19	JD8968	1	Bearing Cone	-
20	JD7424	1	Bearing Cup	-
21	AT157354	1	SEAL	(SUB FOR AT113834 AND AT124414)
22	T32341	1	O-RING	(SUB FOR U10746, THIS APPLICATION)
23	T75880	1	SHIM	.003"
23	T75881	1	SHIM	.005"
23	T75882	1	SHIM	.010"
24	-	1	Part 26	( T75879 USE IF AVAILABLE)
25	AT159829	1	BEARING HOUSING W/O BEARING	(SUB FOR AT73990)
26	19M7662	6	Cap Screw	M10 X 30
27	19M7938	2	Cap Screw	M10 X 20
28	M84110	1	Strap	-
29	T76576	1	PIN FASTENER	-
30	JD8976	2	BEARING CONE	-
31	JD7263	2	Bearing Cup	-
32	U43882	2	SNAP RING	-
33	T105903	1	Gear	IDLER (42 TEETH)
34	R26479	1	SHIM	-

TRANSFER CASE ASSEMBLY (MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. 737488- ) [01D13]
