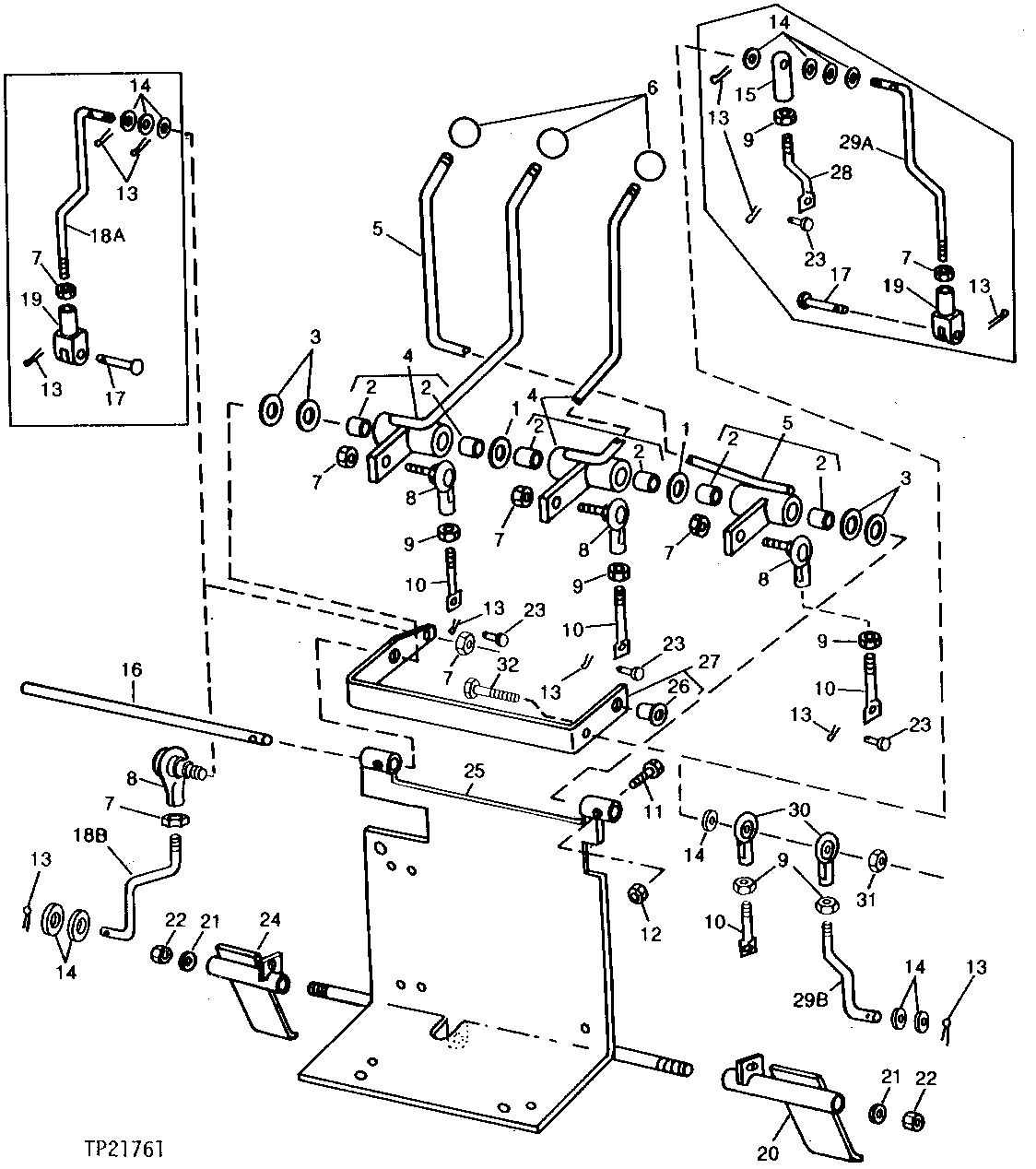

THREE-LEVER BACKHOE CONTROL VALVE LINKAGE (SERIAL NO, -760495) [03C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1658	4	Washer	21/32" X 1" X 0.060"
2	T58109	6	Bushing	-
3	24H1658	1	Washer	21/32" X 1" X 0.060"
4	AT101142	2	LEVER	-
5	AT113886	1	LEVER	(SUB FOR AT106685)
6	T68099	3	KNOB	-
7	14H466	5	NUT	3/8"
8	AT65619	3	Ball Joint	-
8	AT65619	4	Ball Joint	-
9	M68954	5	Lock Nut	-
9	M68954	6	Lock Nut	-
10	T106130	3	Link	(SUB FOR T105825, THIS APPLICATION)
10	T106130	4	Link	-
11	19M7320	1	Cap Screw	M6 X 40
12	14M7165	1	Lock Nut	M6
13	11M7081	10	Cotter Pin	2.500 X 20 MM
13	11H206	7	Cotter Pin	3/32" X 3/4"
14	24H1305	7	Washer	13/32" X 13/16" X 0.065"
14	24H1305	5	Washer	13/32" X 13/16" X 0.065"
15	AE37072	1	Link End	-
16	T100818	1	PIN	-
17	C1067R	2	PIN FASTENER	-
19	M80373	2	Yoke	(SUB FOR L324T)
20	AT106686	1	PEDAL	L.H. (SUB FOR AT78466, THIS APPLICATION)
20	AT118622	1	PEDAL	L.H.
21	24H899	2	WASHER	21/32" X 1-1/4" X 0.120"
22	U14555	2	Lock Nut	-
23	T19155	4	Pin Fastener	-
24	AT107517	1	PEDAL	R.H. (SUB FOR AT78445 AND AT106687, THIS APPLICATION)
24	AT118621	1	PEDAL	R.H.
25	AT101889	1	SUPPORT	-
25	AT118623	1	SUPPORT	-
26	E70888	2	Bushing	-
27	AT101140	1	PIVOT	-
28	T100236	1	LINK	-
30	AM52354	2	Link End	-
31	14H1076	1	Nut	3/8"
32	19H3031	1	Cap Screw	3/8" X 2-1/2"
..	-	1	Part 43	INCLUDES SUPPORT PLATE, BALL JOINTS, LEVERS, KNOBS, PEDALS, LINKAGE AND HARDWARE ( AT101890 NO LONGER AVAILABLE)
..	-	1	Part 44	( AT114477 USE IF AVAILABLE) INCLUDES SUPPORT PLATE, BALL JOINTS, LEVERS, KNOBS, PEDALS, LINKAGE AND HARDWARE
18A	T100821	1	LINK	-
18B	T118984	1	LINK	-
29A	T106374	1	LINK	-
29B	T118983	1	LINK	-

THREE-LEVER BACKHOE CONTROL VALVE LINKAGE (SERIAL NO, -760495) [03C05]
